TCR20L-RESDVA (1994)
Toyota Previa
Production
Jan 1994
-
Jul 1997
Engine
2TZFZE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9401-9707)TCR20..SPC

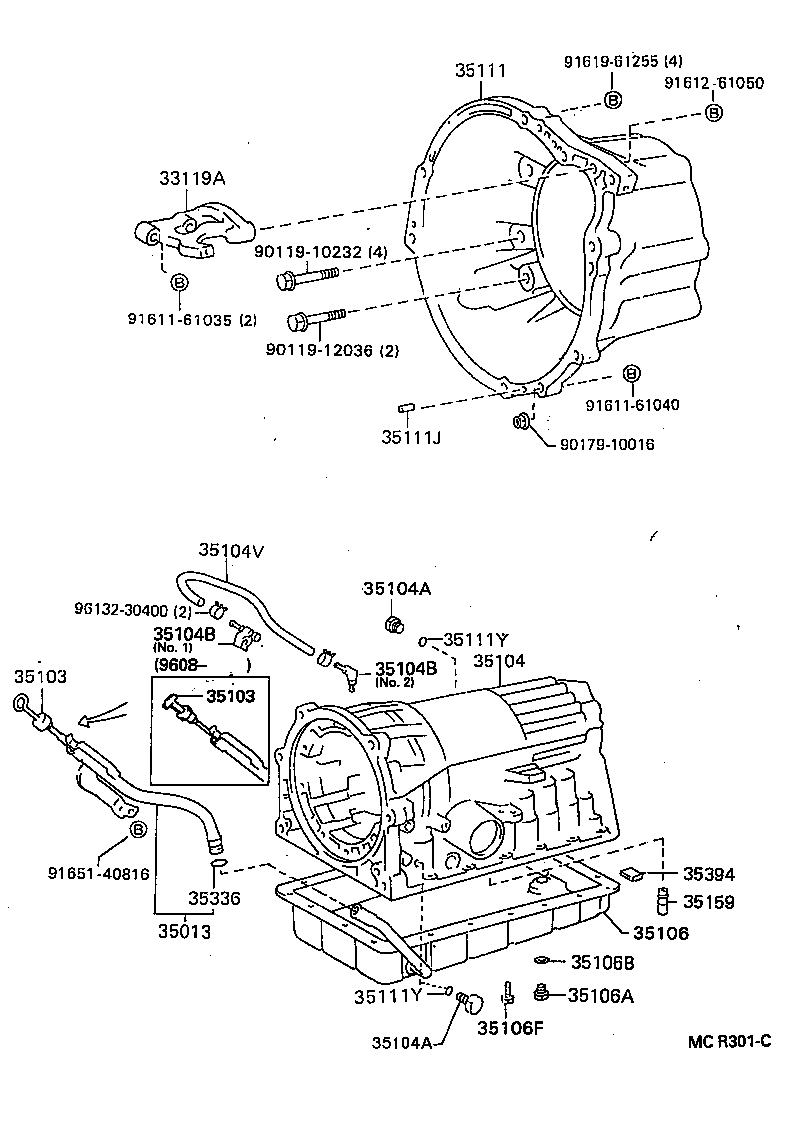

Click highlighted areas on diagram
A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33119A - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-28030 |
TCR10,20..ATM |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-28111 |
TCR10,20 |
1 | ||
| 35013-28110 |
TCR10,20..SPC |
1 | ||
| 35013-28060 |
TCR10,20..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-28090 |
TCR10,20..SPC |
1 | ||
| 35103-28030 |
TCR10,20..ATM |
1 | ||
| 35103-28091 |
TCR10,20 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-28090 |
TCR10,20..SPC |
1 | ||
| 35103-28030 |
TCR10,20..ATM |
1 | ||
| 35103-28091 |
TCR10,20 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-28040 |
TCR10,20..SPC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
TCR10,20..ATM |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
TCR10,20..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
TCR20..SPC NO.2 |
1 | ||
| 90930-03099 |
TCR20..SPC NO.1 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
TCR20..SPC NO.2 |
1 | ||
| 90930-03099 |
TCR20..SPC NO.1 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11118 |
TCR20..SPC |
1 | ||
| 90445-11084 |
TCR10,20..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-28020 |
TCR10,20..SPC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
TCR10,20..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
TCR10,20..ATM |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
TCR10,20..SPC |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-28020 |
TCR10,20..ATM |
1 | ||
| 35111-28050 |
TCR10,20..SPC |
1 | ||
| 35111J - PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90250-10026 |
TCR10,20..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TCR10,20..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
TCR10,20..ATM |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
TCR10,20..SPC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
TCR10,20..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
TCR20..SPC |
1 | ||
| 35394-30011 |
TCR10,20..SPC |
3 | ||
| 35394-30011 |
TCR10,20..SPC |
3 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90179-10016 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91612-61050 | ||||
| 91619-61255 | ||||
| 91651-40816 | ||||
| 96132-30400 | ||||
