TCR20L-RESDKK (1990)
Toyota Previa

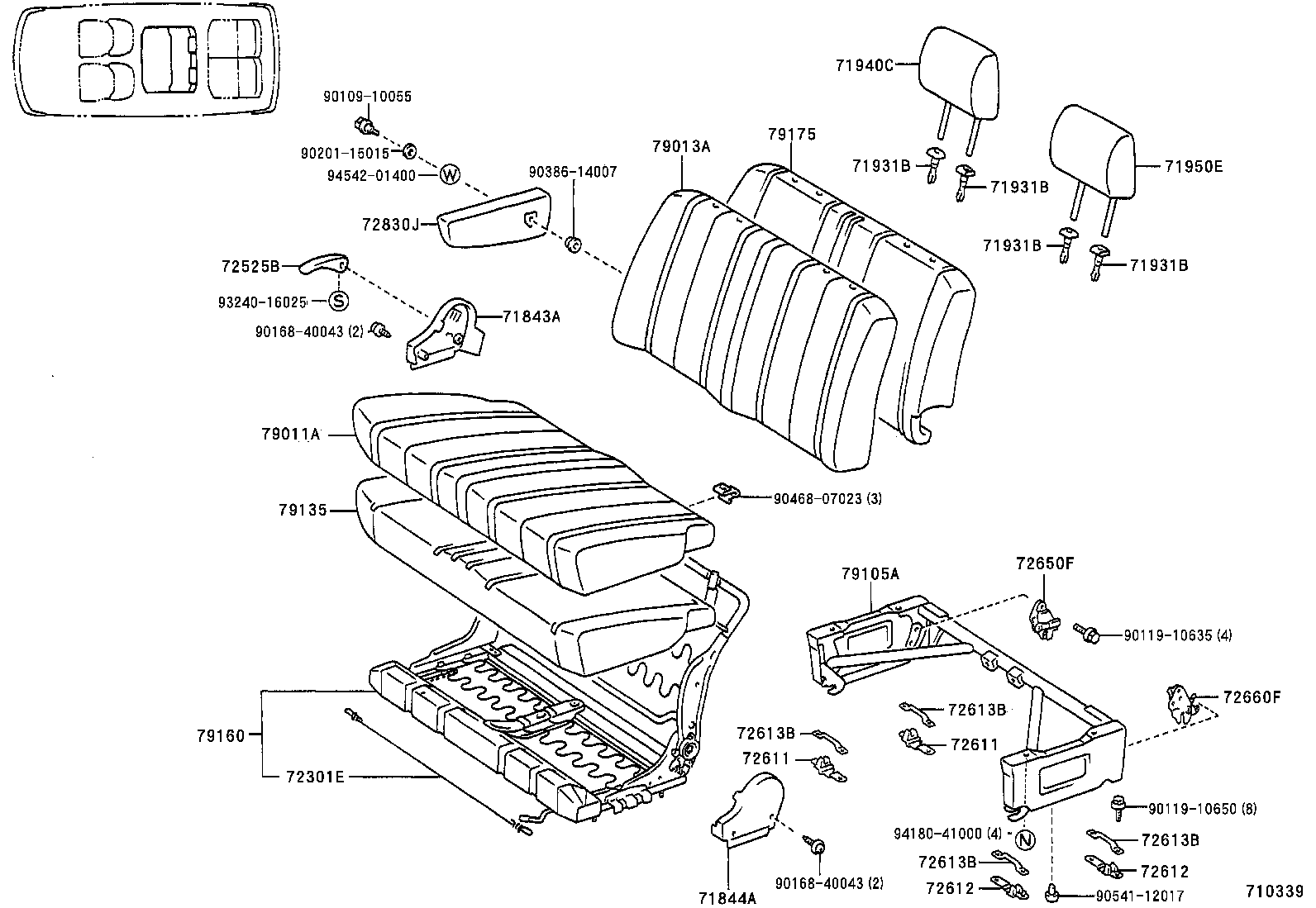

ILLUST NO. 2 OF 3(9001- )
BENCH 2-PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 71843-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71843-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71843-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71844-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 71844-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71844-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007016 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71930-1007013 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007014 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002013 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002014 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002016 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020B0 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E1 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020J0 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020E1 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
1 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007016 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71930-1007013 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007014 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002013 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002014 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002016 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020B0 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E1 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020J0 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020E1 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
1 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007016 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71930-1007013 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007014 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002013 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002014 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002016 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020B0 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E1 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020J0 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020E1 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
1 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007016 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71930-1007013 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007014 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002013 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002014 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002016 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020B0 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E1 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020J0 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020E1 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
1 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
1 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0406 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71940-95D04E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-95D0404 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28210E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28340J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-95D0403 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0406 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71940-95D0404 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-95D0403 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28210J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-95D04E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28210B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28340J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 72301E - WIRE SUB-ASSY, REAR NO.1 SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D01 |
TCR10,20 |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72526-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 72526-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 72526-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72526-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 72526-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 72611 - BRACKET, REAR SEAT LOCK, RH | ||||
| 72611-95D00 |
TCR10,20 |
2 | ||
| 72611 - BRACKET, REAR SEAT LOCK, RH | ||||
| 72611-95D00 |
TCR10,20 |
2 | ||
| 72612 - BRACKET, REAR SEAT LOCK, LH | ||||
| 72611-95D00 |
TCR10,20 |
2 | ||
| 72612 - BRACKET, REAR SEAT LOCK, LH | ||||
| 72611-95D00 |
TCR10,20 |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR10,20 |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR10,20 |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR10,20 |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR10,20 |
8 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72660-95D01 |
TCR10,20 |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72650-95D00 |
TCR10,20 |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-95D0006 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 72830-95D00E2 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 72830-95D0003 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 72830-95D0004 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 72830-28050J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95D0006 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4# |
1 | ||
| 79011-95D0306 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 79011-95D00E2 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-95D0004 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79011-95D0003 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79011-95D03E2 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-95D0303 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79011-95D0304 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79011-28150J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95D0006 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST),LIGHT TAN,TRIM4# |
1 | ||
| 79013-95D0106 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4# |
1 | ||
| 79013-95D0103 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D0004 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST),LIGHT BLUE,TRIM8# |
1 | ||
| 79014-95D0003 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D0003 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79014-95D1104 |
TCR10,20..05S W/O(REAR NO.2 SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79013-95D00E3 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-95D11E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-95D1103 |
TCR10,20..05S W/O(REAR NO.2 SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D0104 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79014-95D0006 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 79014-95D1106 |
TCR10,20..05S W/O(REAR NO.2 SEAT),LIGHT TAN,TRIM4# |
1 | ||
| 79013-28130J0 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79013-28130E0 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-95D0004 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79014-28110E0 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28200E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28200J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79013-28130B0 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28110J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79014-28110B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28200B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 79105-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79105-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79105-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 79105-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95D02 |
TCR10,20..05S |
1 | ||
| 79135-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79160-95D01 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & REAR NO.2 SEAT) |
1 | ||
| 79160-95D04 |
TCR10,20..05S |
1 | ||
| 79160-95D01 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79185-95D01 |
TCR10,20..05S |
1 | ||
| 79175-95D07 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79175-95D07 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & REAR NO.2 SEAT) |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-10635 | ||||
| 90119-10650 | ||||
| 90168-40043 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90468-07023 | ||||
| 90541-12017 | ||||
| 93240-16025 | ||||
| 94180-41000 | ||||
| 94542-01400 | ||||
ILLUST NO. 1 OF 3(9001-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95D03 |
TCR10,20 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95D00 |
TCR10,20 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95D0906 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71071-95D0904 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71071-95D0903 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71071-95D09E2 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71071-28470J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95D0903 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71072-95D09E4 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71072-95D0904 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71072-28470J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71072-95D0906 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95D0706 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71073-28150B0 |
TCR10,20..05S W(ARMREST),LIGHT GRAY,TRIM1# |
1 | ||
| 71073-95D0703 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28150E1 |
TCR10,20..05S W(ARMREST),LIGHT GREIGE,TRIM4# |
1 | ||
| 71073-28150J0 |
TCR10,20..05S W(ARMREST),LIGHT BLUE,TRIM8# |
1 | ||
| 71073-95D07E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71073-28380J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71073-95D0704 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71073-28380E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71073-28390J1 |
TCR10,20..05S W(ARMREST),LIGHT BLUE,TRIM8# |
1 | ||
| 71073-28380B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2812004 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71074-28120E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71074-28170B0 |
TCR10,20..05S W(ARMREST),LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28170E0 |
TCR10,20..05S W(ARMREST),LIGHT GREIGE,TRIM4# |
1 | ||
| 71074-2812003 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71074-2812006 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71074-28170J0 |
TCR10,20..05S W(ARMREST),LIGHT BLUE,TRIM8# |
1 | ||
| 71074-28430B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28430E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71074-28440J1 |
TCR10,20..05S W(ARMREST),LIGHT BLUE,TRIM8# |
1 | ||
| 71074-28430J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 71108-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 71108-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71108-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71108-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 71109-28020J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71109-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71109-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71109-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95D00 |
TCR10,20 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95D00 |
TCR10,20 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28130 |
TCR10,20..05S W(ARMREST) |
1 | ||
| 71551-95D00 |
TCR10,20 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95D00 |
TCR10,20 |
1 | ||
| 71552-28150 |
TCR10,20..05S W(ARMREST) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-28170 |
TCR10,20..05S W(ARMREST) |
1 | ||
| 71630-95D02 |
TCR10,20 |
1 | ||
| 71630-28070 |
TCR10,20..05S W(ARMREST) |
1 | ||
| 71630-95D02 |
TCR10,20..05S |
1 | ||
| 71630-28160 |
TCR10,20..05S |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-28060 |
TCR10,20..05S W(ARMREST) |
1 | ||
| 71640-95D02 |
TCR10,20..05S |
1 | ||
| 71640-28210 |
TCR10,20..05S |
1 | ||
| 71640-95D02 |
TCR10,20 |
1 | ||
| 71640-28220 |
TCR10,20..05S W(ARMREST) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71811-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71811-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 71811-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 71811-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0204 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71811-95D0203 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71811-95D0206 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 71811-95D0205 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 71811-95D02R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71812-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71812-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71812-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 71812-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0303 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71812-95D0304 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71812-95D03R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 71812-95D0305 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 71812-95D0306 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95D0506 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71910-95D05E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71910-95D0504 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71910-28200J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71910-95D0503 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-95D0506 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71910-95D0504 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71910-28200J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71910-95D0503 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71910-95D05E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205026 |
TCR10,20 W(LOCK),LIGHT TAN,TRIM4# |
2 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1205015 |
TCR10,20 W(LOCK),LIGHT GREIGE,TRIM4# |
2 | ||
| 71930-1205013 |
TCR10,20 W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1205024 |
TCR10,20 W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205026 |
TCR10,20 W(LOCK),LIGHT TAN,TRIM4# |
2 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1205015 |
TCR10,20 W(LOCK),LIGHT GREIGE,TRIM4# |
2 | ||
| 71930-1205013 |
TCR10,20 W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1205024 |
TCR10,20 W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205026 |
TCR10,20 W(LOCK),LIGHT TAN,TRIM4# |
2 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1205015 |
TCR10,20 W(LOCK),LIGHT GREIGE,TRIM4# |
2 | ||
| 71930-1205013 |
TCR10,20 W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1205024 |
TCR10,20 W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205026 |
TCR10,20 W(LOCK),LIGHT TAN,TRIM4# |
2 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1205015 |
TCR10,20 W(LOCK),LIGHT GREIGE,TRIM4# |
2 | ||
| 71930-1205013 |
TCR10,20 W(LOCK),LIGHT GRAY,TRIM1# |
2 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1205024 |
TCR10,20 W(LOCK),LIGHT BLUE,TRIM8# |
2 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR10,20 |
2 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR10,20 |
2 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR10,20 |
2 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-12060 |
TCR10,20 |
2 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-95D00 |
TCR10,20 |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72127-95D01R9 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72127-95D0105 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 72127-95D0103 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72127-95D0106 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 72127-95D0104 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72128-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 72128-95D00R9 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72128-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 72128-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 72159-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72159-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 72159-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72159-95D00C0 |
TCR20..05S..CND;TCR10,20..07S..SPC BLACK,TRIM11,4#,8# |
2 | ||
| 72159-95D00R9 |
TCR10,20..05S;TCR10,20..07S..SPC BLUE,TRIM81 |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 72159-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72159-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 72159-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72159-95D00C0 |
TCR20..05S..CND;TCR10,20..07S..SPC BLACK,TRIM11,4#,8# |
2 | ||
| 72159-95D00R9 |
TCR10,20..05S;TCR10,20..07S..SPC BLUE,TRIM81 |
2 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
TCR10,20 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D00 |
TCR10,20 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-95D00 |
TCR10,20 |
1 | ||
| 72339A - FRAME, FRONT SEAT LEG SUPPORT | ||||
| 72339-28010 |
TCR10,20 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 72525-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 72525-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 72525-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 72525-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 72526-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 72526-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72526-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 72526-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72890-28100J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 72890-28100B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 72890-28160E0 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 72890-28160B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 72890-28100E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 72890-28160J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72880-28090E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 72880-28090B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 72880-28150E0 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 72880-28090J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 72880-28150B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 72880-28150J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10643 | ||||
| 90119-10834 | ||||
| 90159-80049 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90201-15015 | ||||
| 90386-14007 | ||||
| 90386-35001 | ||||
| 90468-07023 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
ILLUST NO. 2 OF 3(9001-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-95D01 |
TCR10,20..05S |
2 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-95D01 |
TCR10,20..05S |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007016 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71930-1007013 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007014 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002013 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002014 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002016 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020B0 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E1 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020J0 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020E1 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
1 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007016 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71930-1007013 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007014 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002013 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002014 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002016 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020B0 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E1 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020J0 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020E1 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
1 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007016 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71930-1007013 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007014 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002013 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002014 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002016 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020B0 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E1 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020J0 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020E1 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
1 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-1007016 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71930-1007013 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-1007014 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002013 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20..05S W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002014 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-1002016 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020B0 |
TCR10,20..05S W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E1 |
TCR10,20..05S W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20..05S W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020J0 |
TCR10,20..05S W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020E1 |
TCR10,20..05S W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
1 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
1 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
1 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
1 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-95D0406 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71940-95D04E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-95D0404 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28210E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28340J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-95D0403 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-95D0406 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71940-95D0404 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-95D0403 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28210J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-95D04E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28210B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28340J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95D0006 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4# |
1 | ||
| 79011-95D0306 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 79011-95D00E2 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-95D0004 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79011-95D0003 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79011-95D03E2 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79011-95D0303 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79011-95D0304 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79011-28150J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95D0006 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST),LIGHT TAN,TRIM4# |
1 | ||
| 79013-95D0106 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4# |
1 | ||
| 79013-95D0103 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D0004 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST),LIGHT BLUE,TRIM8# |
1 | ||
| 79014-95D0003 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D0003 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST),LIGHT GRAY,TRIM1# |
1 | ||
| 79014-95D1104 |
TCR10,20..05S W/O(REAR NO.2 SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79013-95D00E3 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-95D11E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-95D1103 |
TCR10,20..05S W/O(REAR NO.2 SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79013-95D0104 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79014-95D0006 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 79014-95D1106 |
TCR10,20..05S W/O(REAR NO.2 SEAT),LIGHT TAN,TRIM4# |
1 | ||
| 79013-28130J0 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79013-28130E0 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GREIGE,TRIM4# |
1 | ||
| 79014-95D0004 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79014-28110E0 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28200E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79013-28200J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79013-28130B0 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28110J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79014-28110B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28200B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95D02 |
TCR10,20..05S |
1 | ||
| 79135-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79160-95D01 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & REAR NO.2 SEAT) |
1 | ||
| 79160-95D04 |
TCR10,20..05S |
1 | ||
| 79160-95D01 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79185-95D01 |
TCR10,20..05S |
1 | ||
| 79175-95D07 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79175-95D07 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & REAR NO.2 SEAT) |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79190-95D09 |
TCR10,20..05S |
1 | ||
| Common parts | ||||
| 90119-10834 | ||||
| 91611-61025 | ||||
ILLUST NO. 3 OF 3(9001-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR10,20 |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR10,20 |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR10,20 |
2 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR10,20 |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0405 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 71843-95D04B0 |
TCR10,20 GRAY,TRIM1#,4#,8# |
2 | ||
| 71843-95D0403 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71843-95D0404 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 71843-95D0403 |
TCR10,20 GRAY,TRIM1#,4#,8# |
2 | ||
| 71843-95D0406 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0405 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 71843-95D04B0 |
TCR10,20 GRAY,TRIM1#,4#,8# |
2 | ||
| 71843-95D0403 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71843-95D0404 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 71843-95D0403 |
TCR10,20 GRAY,TRIM1#,4#,8# |
2 | ||
| 71843-95D0406 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0406 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 71844-95D04B0 |
TCR10,20 GRAY,TRIM1#,4#,8# |
2 | ||
| 71844-95D0405 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 71844-95D0404 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 71844-95D0403 |
TCR10,20 GRAY,TRIM1#,4#,8# |
2 | ||
| 71844-95D0403 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0406 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 71844-95D04B0 |
TCR10,20 GRAY,TRIM1#,4#,8# |
2 | ||
| 71844-95D0405 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 71844-95D0404 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 71844-95D0403 |
TCR10,20 GRAY,TRIM1#,4#,8# |
2 | ||
| 71844-95D0403 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D0205 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 71878-95D0204 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 71878-95D0206 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 71878-95D0203 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71878B - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D0205 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 71878-95D0204 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 71878-95D0206 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 71878-95D0203 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71878-95D0205 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 71878-95D0204 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 71878-95D0206 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 71878-95D0203 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71879B - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71878-95D0205 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 71878-95D0204 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 71878-95D0206 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 71878-95D0203 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007014 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
2 | ||
| 71931-1002014 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-1007013 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
2 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1007016 |
TCR10,20 W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002016 |
TCR10,20 W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020E1 |
TCR10,20 W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020E1 |
TCR10,20 W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007014 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
2 | ||
| 71931-1002014 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-1007013 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
2 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1007016 |
TCR10,20 W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002016 |
TCR10,20 W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020E1 |
TCR10,20 W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020E1 |
TCR10,20 W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007014 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
2 | ||
| 71931-1002014 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-1007013 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
2 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1007016 |
TCR10,20 W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002016 |
TCR10,20 W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020E1 |
TCR10,20 W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020E1 |
TCR10,20 W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-1007014 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
2 | ||
| 71931-28020B0 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002013 |
TCR10,20 W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-28020E0 |
TCR10,20 W(LOCK),GREIGE,TRIM4# |
2 | ||
| 71931-1002014 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-1007013 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-28020E0 |
TCR10,20 W/O(LOCK),GREIGE,TRIM4# |
2 | ||
| 71930-28030J2 |
TCR10,20 W(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71930-1007016 |
TCR10,20 W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020J0 |
TCR10,20 W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020B0 |
TCR10,20 W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-1002016 |
TCR10,20 W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71930-28020J0 |
TCR10,20 W(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-28020E1 |
TCR10,20 W(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28020E1 |
TCR10,20 W/O(LOCK),TAN,TRIM4# |
2 | ||
| 71931-28030J2 |
TCR10,20 W/O(LOCK),MI. BLUE,TRIM8# |
2 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71940-95D0406 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71940-95D0403 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-95D04E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28210E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-95D0404 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28340J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71950F - HEADREST ASSY, REAR NO.2 SEAT, LH | ||||
| 71940-95D0406 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 71940-95D04E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-95D0404 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-95D0403 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28210E1 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 71940-28210B1 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28340J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71940-28210J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 71959 - HOLDER, REAR SEAT HEADREST | ||||
| 71959-2802006 |
TCR10,20 TAN,TRIM4# |
4 | ||
| 71959-2802003 |
TCR10,20 GRAY,TRIM1# |
4 | ||
| 71959-28020R9 |
TCR10,20 BLUE,TRIM8# |
4 | ||
| 71959-2802004 |
TCR10,20 BLUE,TRIM8# |
4 | ||
| 71959-2802005 |
TCR10,20 GREIGE,TRIM4# |
4 | ||
| 71959 - HOLDER, REAR SEAT HEADREST | ||||
| 71959-2802006 |
TCR10,20 TAN,TRIM4# |
4 | ||
| 71959-2802003 |
TCR10,20 GRAY,TRIM1# |
4 | ||
| 71959-28020R9 |
TCR10,20 BLUE,TRIM8# |
4 | ||
| 71959-2802004 |
TCR10,20 BLUE,TRIM8# |
4 | ||
| 71959-2802005 |
TCR10,20 GREIGE,TRIM4# |
4 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 72065-95D0005 |
TCR10,20 LIGHT GREIGE,TRIM4# |
1 | ||
| 72065-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72065-95D00J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 72065-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 72065-95D0005 |
TCR10,20 LIGHT GREIGE,TRIM4# |
1 | ||
| 72065-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72065-95D00J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 72065-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-95D06 |
TCR10,20 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-95D06 |
TCR10,20 |
1 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 72507-28020E0 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 72507-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 72507-28020J0 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72507-28011J0 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72507-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72507-28020B0 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72507-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 72507-28020E0 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 72507-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 72507-28020J0 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72507-28011J0 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72507-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72507-28020B0 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72507-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR10,20 |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR10,20 |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR10,20 |
8 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR10,20 |
8 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95D02 |
TCR10,20 RR |
1 | ||
| 72650-95D01 |
TCR10,20 FR |
1 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95D02 |
TCR10,20 RR |
1 | ||
| 72650-95D01 |
TCR10,20 FR |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR10,20 |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR10,20 |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR10,20 |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR10,20 |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR10,20 |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D03 |
TCR10,20 RR |
1 | ||
| 72660-95D02 |
TCR10,20 FR |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D03 |
TCR10,20 RR |
1 | ||
| 72660-95D02 |
TCR10,20 FR |
1 | ||
| 72750E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 72750-95D01 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 72750-95D03 |
TCR10,20 |
1 | ||
| 72750-95D03 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 72750F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 72750-95D04 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 72750-95D02 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 72760E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 72760-95D01 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 72760-95D03 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 72760F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 72760-95D04 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 72760-95D04 |
TCR10,20 |
1 | ||
| 72760-95D02 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-95D0006 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 79021-95D0003 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79021-95D0004 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79021-95D00E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79021-28080E0 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79021-28080B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28080J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79021-28081J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-95D0006 |
TCR10,20..05S LIGHT TAN,TRIM4# |
1 | ||
| 79022-95D0004 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79022-28050J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79022-95D00E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79022-95D0003 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28050B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28051J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79022-28050E0 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-95D0103 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79023-95D0106 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4# |
1 | ||
| 79023-95D0104 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79023-95D0006 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST),LIGHT TAN,TRIM4# |
1 | ||
| 79023-95D00E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79023-95D0004 |
TCR10,20..ATM..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79023-28080J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79023-28080E0 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79023-95D0003 |
TCR10,20..ATM..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28110J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79023-28080B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-95D0103 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 79024-95D0104 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT BLUE,TRIM8# |
1 | ||
| 79024-95D0003 |
TCR10,20..ATM..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79024-95D0006 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST),LIGHT TAN,TRIM4# |
1 | ||
| 79024-95D0106 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT),LIGHT TAN,TRIM4# |
1 | ||
| 79024-95D0004 |
TCR10,20..ATM..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79024-28060B0 |
TCR10,20..05S LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28060E0 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79024-95D00E3 |
TCR10,20..05S LIGHT GREIGE,TRIM4# |
1 | ||
| 79024-28060J0 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79024-28090J1 |
TCR10,20..05S LIGHT BLUE,TRIM8# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79025-28010 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 79025-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79026-28010 |
TCR10,20..05S W(TONNEAU COVER & HEADREST) |
1 | ||
| 79026-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79027-28010 |
TCR10,20..05S W(TONNEAU COVER & BENCH 2-PASSENGER SEAT) |
1 | ||
| 79027-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 79027-28020 |
TCR10,20..05S W(TONNEAU COVER & BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 79027-28020 |
TCR10,20..05S W(TONNEAU COVER & BENCH 2-PASSENGER SEAT) |
1 | ||
| 79027-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79027-28020 |
TCR10,20 W(TONNEAU COVER) |
1 | ||
| 79027-95D00 |
TCR10,20 |
1 | ||
| 79027-95D01 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79028-28020 |
TCR10,20..05S W(TONNEAU COVER & BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 79028-28010 |
TCR10,20..05S W(TONNEAU COVER & BENCH 2-PASSENGER SEAT) |
1 | ||
| 79028-28020 |
TCR10,20..05S W(TONNEAU COVER & BENCH 2-PASSENGER SEAT) |
1 | ||
| 79028-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT & HEADREST) |
1 | ||
| 79028-28020 |
TCR10,20 W(TONNEAU COVER) |
1 | ||
| 79028-95D01 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79028-95D00 |
TCR10,20 |
1 | ||
| 79028-95D00 |
TCR10,20..05S W(BENCH 2-PASSENGER SEAT) |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 79205-95D0001 |
TCR10,20 BLACK,TRIM1#,4#,8# |
1 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79319-95D00 |
TCR10,20 RR |
2 | ||
| 79318-95D00 |
TCR10,20 FR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79319-95D00 |
TCR10,20 RR |
2 | ||
| 79318-95D00 |
TCR10,20 FR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79319-95D00 |
TCR10,20 RR |
2 | ||
| 79318-95D00 |
TCR10,20 FR |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79319-95D00 |
TCR10,20 RR |
2 | ||
| 79318-95D00 |
TCR10,20 FR |
2 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79366-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 79366-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 79366-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79366-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 79367-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79367-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79367-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 79367-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 79374-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79374-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 79374-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79374-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79384-95D00R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79384-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 79384-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 79384-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 79955-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 79955-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 79955-95D00R9 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 79955-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 79955-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 79955-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 79955-95D00R9 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 79955-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 79957-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 79957-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 79957-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 79957-95D00R9 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0004 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| 79957-95D0006 |
TCR10,20 TAN,TRIM4# |
2 | ||
| 79957-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 79957-95D0005 |
TCR10,20 GREIGE,TRIM4# |
2 | ||
| 79957-95D00R9 |
TCR10,20 BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90119-10082 | ||||
| 90119-10650 | ||||
| 90119-11023 | ||||
| 90149-40012 | ||||
| 90159-60280 | ||||
| 90168-40049 | ||||
| 90179-06007 | ||||
| 90202-08005 | ||||
| 90206-12064 | ||||
| 90506-26018 | ||||
| 91611-61020 | ||||
| 93568-15012 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
