TCR20L-RESDKK (1990)
Toyota Previa

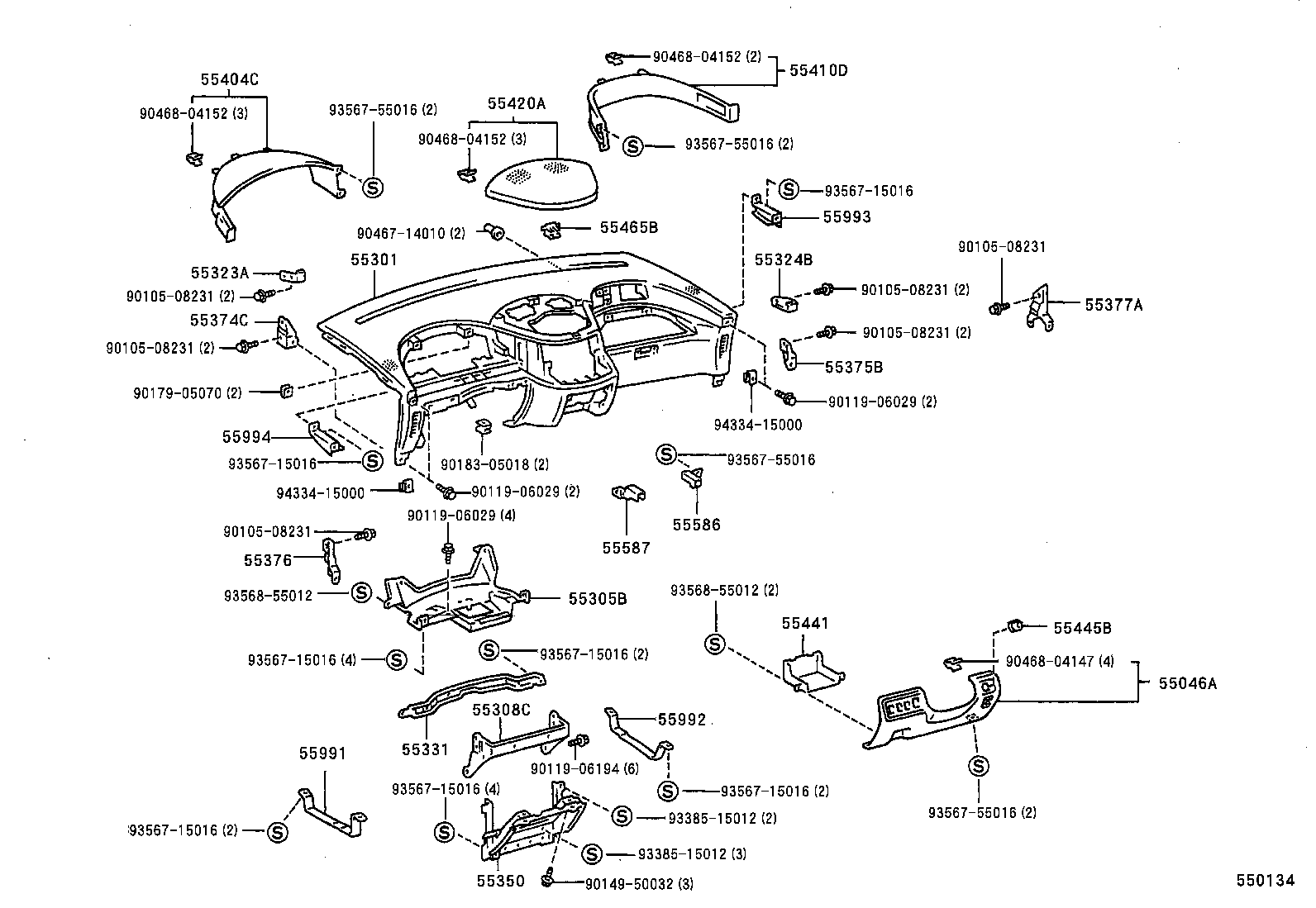

ILLUST NO. 1 OF 2(9001-9108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55046-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55046-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55046-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-2803004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55301-2803003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55301-2803006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55301-2803005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55301-28150J0 |
TCR10,20 MI. BLUE,TRIM8# |
1 | ||
| 55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55305-95D00 |
TCR10,20 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-95D00 |
TCR10,20 |
1 | ||
| 55308-28020 |
TCR10,20 |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55323-95D00 |
TCR10,20 |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-95D00 |
TCR10,20 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55331-95D00 |
TCR10,20 |
1 | ||
| 55350 - BRACE ASSY, INSTRUMENT PANEL | ||||
| 55350-95D00 |
TCR10,20 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-95D00 |
TCR10,20 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-95D00 |
TCR10,20 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-95D00 |
TCR10,20 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-95D00 |
TCR10,20 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-95D01 |
TCR10,20 |
1 | ||
| 55410D - PANEL ASSY, INSTRUMENT CLUSTER FINISH, END | ||||
| 55410-95D00 |
TCR10,20 |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55420-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55420-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55420-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-95D00 |
TCR10,20 |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-20150 |
TCR10,20 |
1 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-95D00 |
TCR10,20 |
1 | ||
| 55586 - SUPPORT, SHELL BOX, NO.1 | ||||
| 55586-28010 |
TCR10,20 |
1 | ||
| 55587 - SUPPORT, SHELL BOX, NO.2 | ||||
| 55587-28010 |
TCR10,20 |
1 | ||
| 55991 - BRACKET, DEFROSTER DUCT, NO.1 | ||||
| 55991-95D00 |
TCR10,20 |
1 | ||
| 55992 - BRACKET, DEFROSTER DUCT, NO.2 | ||||
| 55992-95D00 |
TCR10,20 |
1 | ||
| 55993 - BRACKET, DEFROSTER DUCT, NO.3 | ||||
| 55993-28010 |
TCR10,20 |
1 | ||
| 55994 - BRACKET, DEFROSTER DUCT, NO.4 | ||||
| 55994-28010 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90105-08231 | ||||
| 90119-06029 | ||||
| 90119-06194 | ||||
| 90149-50032 | ||||
| 90179-05070 | ||||
| 90183-05018 | ||||
| 90467-14010 | ||||
| 90468-04147 | ||||
| 90468-04152 | ||||
| 93385-15012 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||
| 94334-15000 | ||||

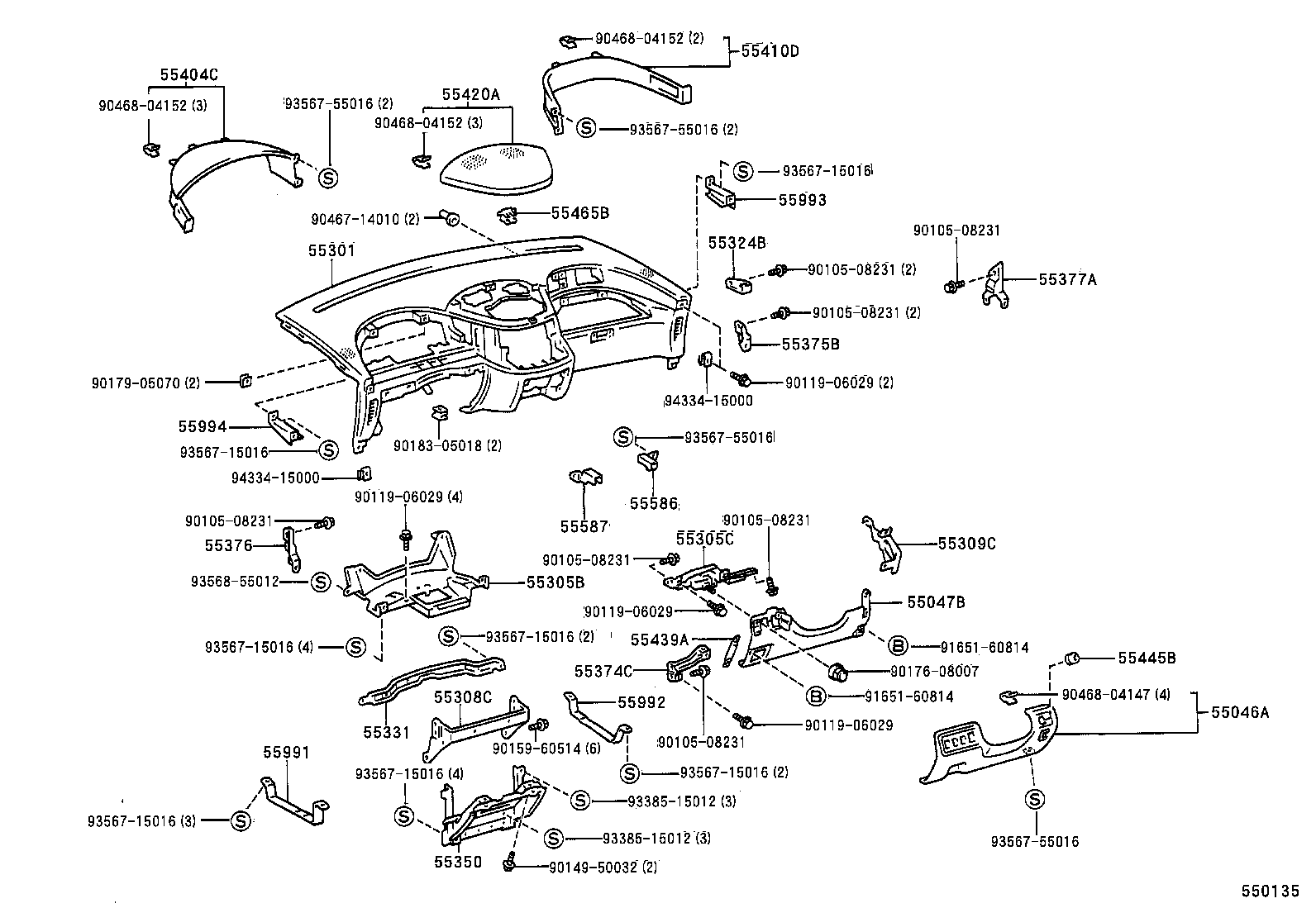

ILLUST NO. 1 OF 2(9108-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55046-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55046-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55046-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-2803004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55301-2803003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55301-2803006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55301-2803005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55301-28150J0 |
TCR10,20 MI. BLUE,TRIM8# |
1 | ||
| 55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55305-95D00 |
TCR10,20 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-95D00 |
TCR10,20 |
1 | ||
| 55308-28020 |
TCR10,20 |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-95D00 |
TCR10,20 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55331-95D00 |
TCR10,20 |
1 | ||
| 55350 - BRACE ASSY, INSTRUMENT PANEL | ||||
| 55350-95D00 |
TCR10,20 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-95D00 |
TCR10,20 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-95D00 |
TCR10,20 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-95D00 |
TCR10,20 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-95D00 |
TCR10,20 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-95D01 |
TCR10,20 |
1 | ||
| 55410D - PANEL ASSY, INSTRUMENT CLUSTER FINISH, END | ||||
| 55410-95D00 |
TCR10,20 |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55420-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55420-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55420-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-20150 |
TCR10,20 |
1 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-95D00 |
TCR10,20 |
1 | ||
| 55586 - SUPPORT, SHELL BOX, NO.1 | ||||
| 55586-28010 |
TCR10,20 |
1 | ||
| 55587 - SUPPORT, SHELL BOX, NO.2 | ||||
| 55587-28010 |
TCR10,20 |
1 | ||
| 55991 - BRACKET, DEFROSTER DUCT, NO.1 | ||||
| 55991-95D00 |
TCR10,20 |
1 | ||
| 55992 - BRACKET, DEFROSTER DUCT, NO.2 | ||||
| 55992-95D00 |
TCR10,20 |
1 | ||
| 55993 - BRACKET, DEFROSTER DUCT, NO.3 | ||||
| 55993-28010 |
TCR10,20 |
1 | ||
| 55994 - BRACKET, DEFROSTER DUCT, NO.4 | ||||
| 55994-28010 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90105-08231 | ||||
| 90119-06029 | ||||
| 90149-50032 | ||||
| 90159-60514 | ||||
| 90176-08007 | ||||
| 90179-05070 | ||||
| 90183-05018 | ||||
| 90467-14010 | ||||
| 90468-04147 | ||||
| 90468-04152 | ||||
| 91651-60814 | ||||
| 93385-15012 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||
| 94334-15000 | ||||

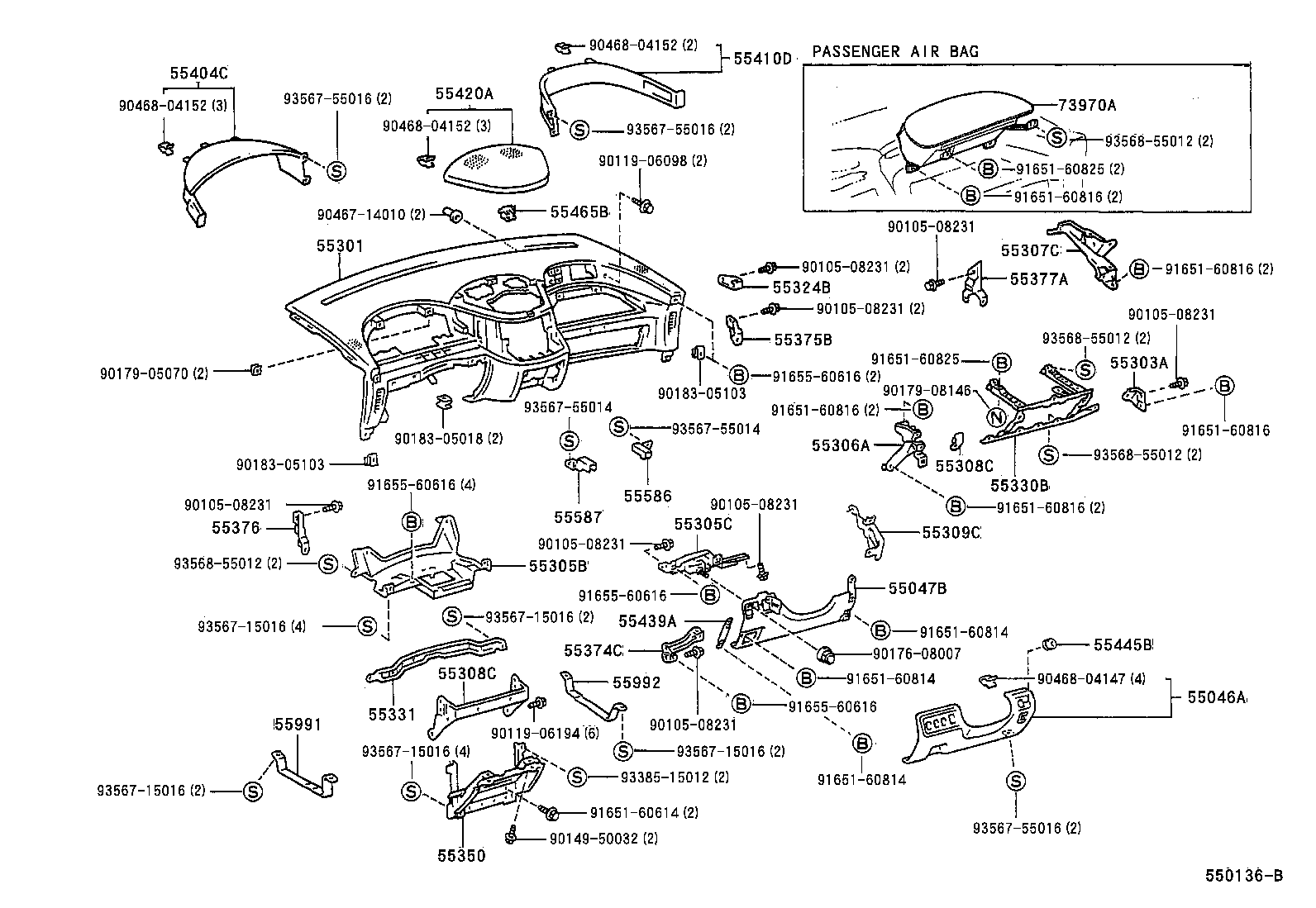

ILLUST NO. 1 OF 2(9308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55046-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55046-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55046-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-2803004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55301-2803003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55301-2803006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55301-2803005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55301-28150J0 |
TCR10,20 MI. BLUE,TRIM8# |
1 | ||
| 55305B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55305-95D00 |
TCR10,20 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-95D00 |
TCR10,20 |
1 | ||
| 55308-28020 |
TCR10,20 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-95D00 |
TCR10,20 |
1 | ||
| 55308-28020 |
TCR10,20 |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-95D00 |
TCR10,20 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55331-95D00 |
TCR10,20 |
1 | ||
| 55350 - BRACE ASSY, INSTRUMENT PANEL | ||||
| 55350-95D00 |
TCR10,20 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-95D00 |
TCR10,20 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-95D00 |
TCR10,20 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-95D00 |
TCR10,20 |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-95D00 |
TCR10,20 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-95D01 |
TCR10,20 |
1 | ||
| 55410D - PANEL ASSY, INSTRUMENT CLUSTER FINISH, END | ||||
| 55410-95D00 |
TCR10,20 |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55420-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55420-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55420-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-20150 |
TCR10,20 |
1 | ||
| 55465B - KNOB, INSTRUMENT PANEL BOX LOCK | ||||
| 55465-95D00 |
TCR10,20 |
1 | ||
| 55586 - SUPPORT, SHELL BOX, NO.1 | ||||
| 55586-28010 |
TCR10,20 |
1 | ||
| 55587 - SUPPORT, SHELL BOX, NO.2 | ||||
| 55587-28010 |
TCR10,20 |
1 | ||
| 55991 - BRACKET, DEFROSTER DUCT, NO.1 | ||||
| 55991-95D00 |
TCR10,20 |
1 | ||
| 55992 - BRACKET, DEFROSTER DUCT, NO.2 | ||||
| 55992-95D00 |
TCR10,20 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90105-08231 | ||||
| 90119-06098 | ||||
| 90119-06194 | ||||
| 90149-50032 | ||||
| 90176-08007 | ||||
| 90179-05070 | ||||
| 90179-08146 | ||||
| 90183-05018 | ||||
| 90183-05103 | ||||
| 90467-14010 | ||||
| 90468-04147 | ||||
| 90468-04152 | ||||
| 91651-60614 | ||||
| 91651-60814 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 91655-60616 | ||||
| 93385-15012 | ||||
| 93567-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||

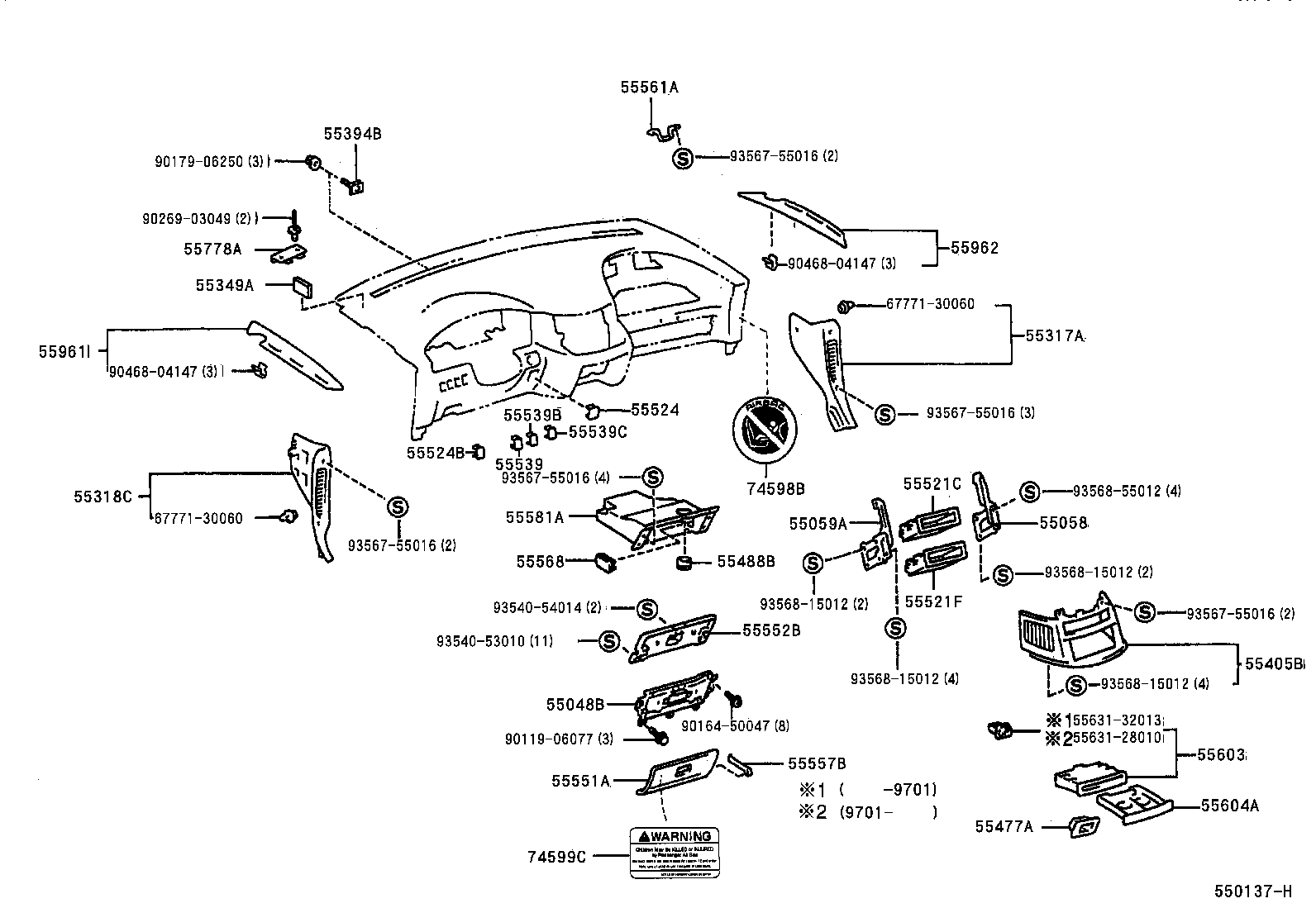

ILLUST NO. 2 OF 2(9308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55058 - RETAINER SUB-ASSY, RADIO TUNER OPENING, RH | ||||
| 55058-95D00 |
TCR10,20 |
1 | ||
| 55059A - RETAINER SUB-ASSY, RADIO TUNER OPENING, LH | ||||
| 55059-95D00 |
TCR10,20 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-95D0104 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55317-95D0105 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55317-95D0103 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55317-95D0106 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55317-95D01R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-95D0106 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55318-95D0103 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55318-95D0105 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55318-95D01R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55318-95D0104 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-95D00 |
TCR10,20 |
3 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-95D00 |
TCR10,20 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55477-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55477-95D00J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55477-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55477-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
TCR10,20..05S |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
TCR10,20 |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55524B - COVER, SWITCH BASE HOLE | ||||
| 55524-28020B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55524-28021J1 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55524-28021B1 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55524-28020J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55524-28021E2 |
TCR10,20 GRAIGE,TRIM4# |
1 | ||
| 55524-28020J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55524-28020E1 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28011B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55539-28011E1 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-28011J1 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55539-28011B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-28010J0 |
TCR10,20..EFI BLUE,TRIM8# |
1 | ||
| 55539-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-28011J1 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-28011E1 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55539-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-28020J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-95D00 |
TCR10,20 |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-95D00 |
TCR10,20 |
1 | ||
| 55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55603-95D00 |
TCR10,20 |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55604-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55604-95D00J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55604-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55604-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55778A - BRACKET, IDENTIFICATION NUMBER PLATE | ||||
| 55778-95D00 |
TCR10,20 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55961-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55961-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55961-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55961-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55962-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55962-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 55631-28010 | ||||
| 55631-32013 | ||||
| 67771-30060 | ||||
| 90119-06077 | ||||
| 90164-50047 | ||||
| 90179-06250 | ||||
| 90269-03049 | ||||
| 90468-04147 | ||||
| 93540-53010 | ||||
| 93540-54014 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
| 93568-55012 | ||||

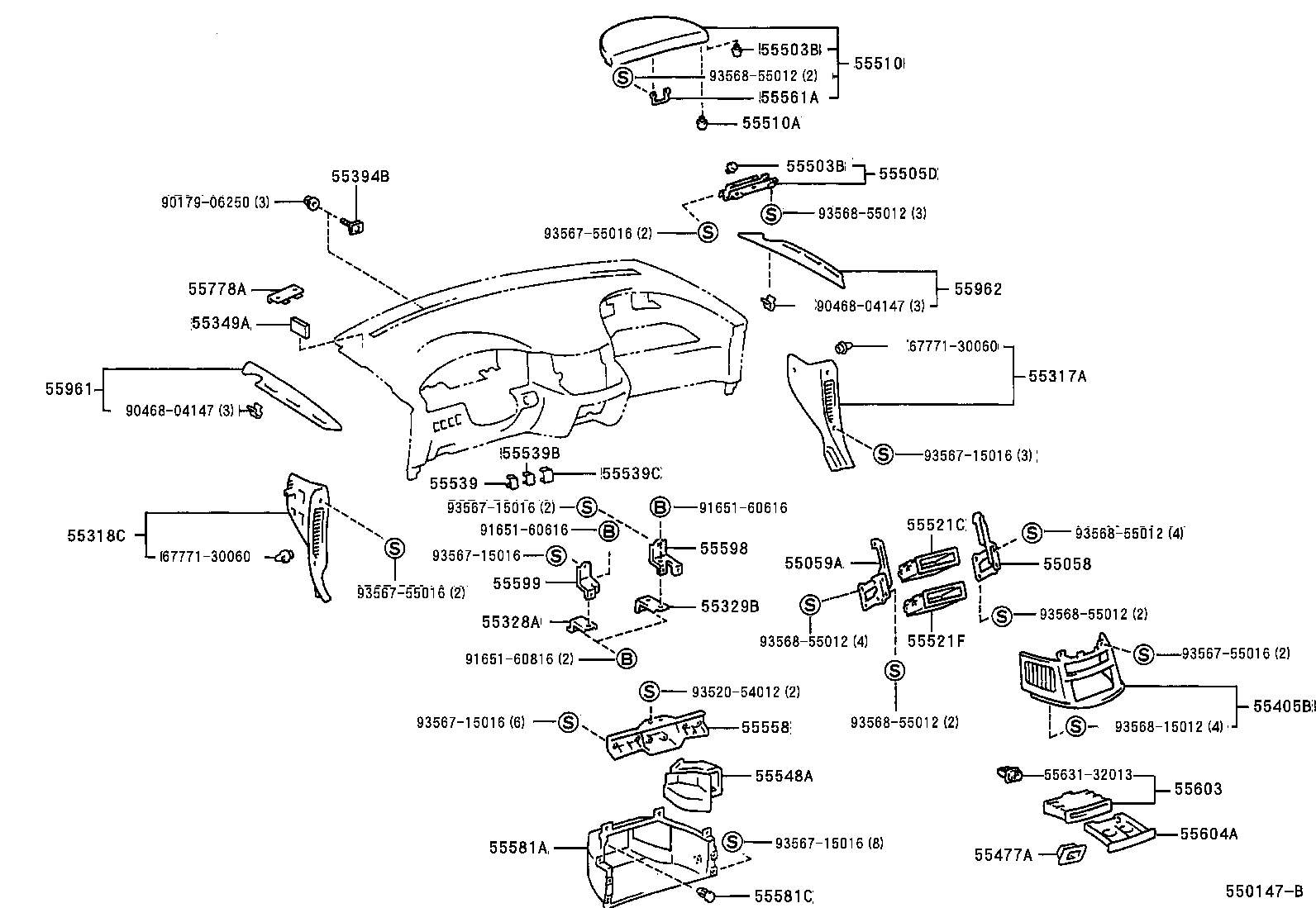

ILLUST NO. 2 OF 2(9001-9108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55058 - RETAINER SUB-ASSY, RADIO TUNER OPENING, RH | ||||
| 55058-95D00 |
TCR10,20 |
1 | ||
| 55059A - RETAINER SUB-ASSY, RADIO TUNER OPENING, LH | ||||
| 55059-95D00 |
TCR10,20 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-95D0104 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55317-95D0105 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55317-95D0103 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55317-95D0106 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55317-95D01R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-95D0106 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55318-95D0103 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55318-95D0105 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55318-95D01R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55318-95D0104 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-95D00 |
TCR10,20 |
1 | ||
| 55329B - STAY, INSTRUMENT PANEL, NO.4 | ||||
| 55329-95D00 |
TCR10,20 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-95D00 |
TCR10,20 |
3 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-95D00 |
TCR10,20 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55477-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55477-95D00J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55477-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55477-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-07037 |
TCR10,20 |
2 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-07037 |
TCR10,20 |
2 | ||
| 55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-95D00 |
TCR10,20 |
1 | ||
| 55505-28021 |
TCR10,20 |
1 | ||
| 55505-28010 |
TCR10,20 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55550-28011E0 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55550-28011B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55550-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55550-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55550-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55550-28011J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55550-28010E0 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55550-28010B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-08025 |
TCR10,20 |
3 | ||
| 55557-28030 |
TCR10,20 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
TCR10,20..05S |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
TCR10,20 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28011B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55539-28011E1 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-28011J1 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55539-28011B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-28010J0 |
TCR10,20..EFI BLUE,TRIM8# |
1 | ||
| 55539-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-28011J1 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-28011E1 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55539-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-95D00 |
TCR10,20 |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-95D00 |
TCR10,20 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-95D00 |
TCR10,20 |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-95D00 |
TCR10,20 |
1 | ||
| 55581C - CLIP, COMPARTMENT GLOVE | ||||
| 90467-1001601 |
TCR10,20..CND;TCR10,20..05S..USA BLACK,TRIM1#,4#,8# |
2 | ||
| 90467-1001601 |
TCR10,20 BLACK,TRIM1#,4#,8# |
2 | ||
| 55598 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, RH | ||||
| 55598-95D00 |
TCR10,20 |
1 | ||
| 55599 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, LH | ||||
| 55599-95D00 |
TCR10,20 |
1 | ||
| 55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55603-95D00 |
TCR10,20 |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55604-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55604-95D00J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55604-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55604-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55778A - BRACKET, IDENTIFICATION NUMBER PLATE | ||||
| 55778-95D00 |
TCR10,20 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55961-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55961-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55961-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55961-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55962-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55962-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 55631-32013 | ||||
| 67771-30060 | ||||
| 90179-06250 | ||||
| 90468-04147 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 93520-54012 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
| 93568-55012 | ||||

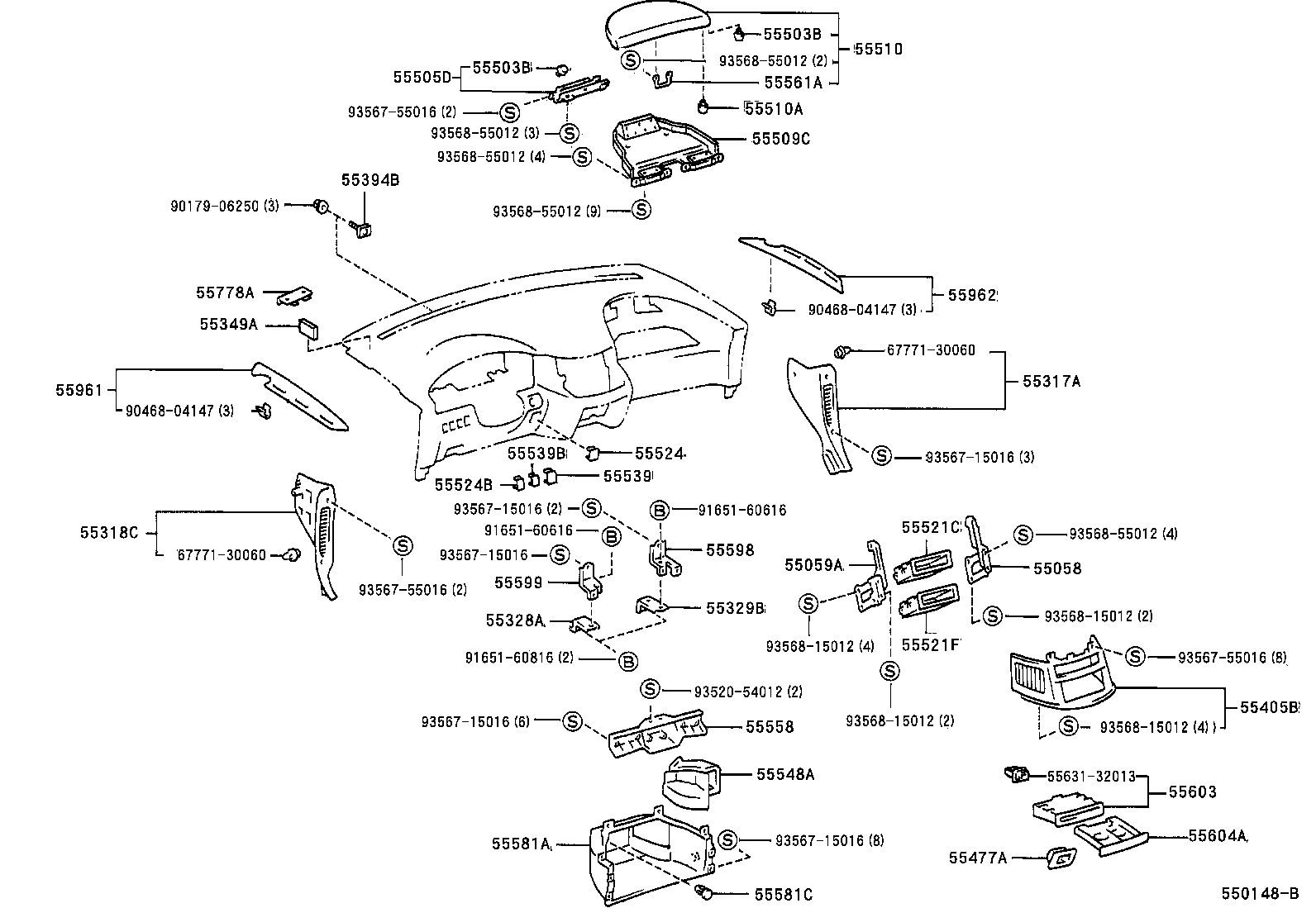

ILLUST NO. 2 OF 2(9108-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55058 - RETAINER SUB-ASSY, RADIO TUNER OPENING, RH | ||||
| 55058-95D00 |
TCR10,20 |
1 | ||
| 55059A - RETAINER SUB-ASSY, RADIO TUNER OPENING, LH | ||||
| 55059-95D00 |
TCR10,20 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-95D0104 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55317-95D0105 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55317-95D0103 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55317-95D0106 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55317-95D01R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-95D0106 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55318-95D0103 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55318-95D0105 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55318-95D01R9 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55318-95D0104 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-95D00 |
TCR10,20 |
1 | ||
| 55329B - STAY, INSTRUMENT PANEL, NO.4 | ||||
| 55329-95D00 |
TCR10,20 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-95D00 |
TCR10,20 |
3 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-95D00 |
TCR10,20 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55477-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55477-95D00J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55477-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55477-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-07037 |
TCR10,20 |
2 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-07037 |
TCR10,20 |
2 | ||
| 55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-95D00 |
TCR10,20 |
1 | ||
| 55505-28021 |
TCR10,20 |
1 | ||
| 55505-28010 |
TCR10,20 |
1 | ||
| 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55552-28030 |
TCR10,20 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55550-28011E0 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55550-28011B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55550-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55550-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55550-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55550-28011J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55550-28010E0 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55550-28010B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-08025 |
TCR10,20 |
3 | ||
| 55557-28030 |
TCR10,20 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
TCR10,20..05S |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
TCR10,20 |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55524B - COVER, SWITCH BASE HOLE | ||||
| 55524-28020B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55524-28021J1 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55524-28021B1 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55524-28020J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55524-28021E2 |
TCR10,20 GRAIGE,TRIM4# |
1 | ||
| 55524-28020J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55524-28020E1 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28011B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55539-28011E1 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-28011J1 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55539-28011B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55539-28010J0 |
TCR10,20..EFI BLUE,TRIM8# |
1 | ||
| 55539-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55539-28011J1 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55539-28011E1 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-95D00 |
TCR10,20 |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-95D00 |
TCR10,20 |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-95D00 |
TCR10,20 |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-95D00 |
TCR10,20 |
1 | ||
| 55581C - CLIP, COMPARTMENT GLOVE | ||||
| 90467-1001601 |
TCR10,20..CND;TCR10,20..05S..USA BLACK,TRIM1#,4#,8# |
2 | ||
| 90467-1001601 |
TCR10,20 BLACK,TRIM1#,4#,8# |
2 | ||
| 55598 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, RH | ||||
| 55598-95D00 |
TCR10,20 |
1 | ||
| 55599 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, LH | ||||
| 55599-95D00 |
TCR10,20 |
1 | ||
| 55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55603-95D00 |
TCR10,20 |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55604-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55604-95D00J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55604-95D0005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55604-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55778A - BRACKET, IDENTIFICATION NUMBER PLATE | ||||
| 55778-95D00 |
TCR10,20 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55961-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55961-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55961-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| 55961-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55961-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2801004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55962-28010J0 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-95D0004 |
TCR10,20 BLUE,TRIM8# |
1 | ||
| 55962-2801003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 55962-2801006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962-95D0006 |
TCR10,20 TAN,TRIM4# |
1 | ||
| 55962-2801005 |
TCR10,20 GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 55631-32013 | ||||
| 67771-30060 | ||||
| 90179-06250 | ||||
| 90468-04147 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 93520-54012 | ||||
| 93567-15016 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
| 93568-55012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
