TCR20L-RESDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-9108)

Click highlighted areas on diagram

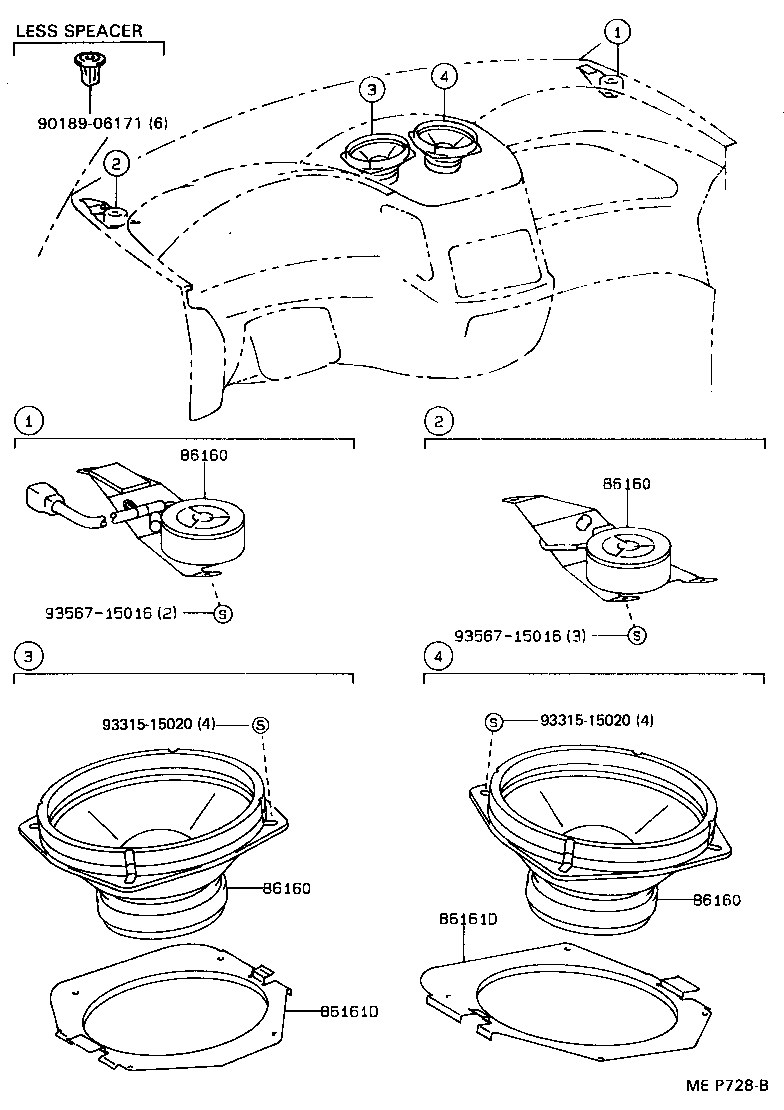

FRONT SPEAKER

diagram 86160 86160 86160 86160 86161D 86161D 9018906171 9331515020 9331515020 9356715016 9356715016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-28280

TCR10,20

LH

 1
86160-28150

TCR10,20

FRONT DOOR,LH

 1
86160-95D02

TCR10,20

RH

 1
86160-28140

TCR10,20

FRONT DOOR,RH

 1
86160-95D01

TCR10,20

CENTER

 2
86160-28270

TCR10,20

RH

 1
86160-95D03

TCR10,20

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-28280

TCR10,20

LH

 1
86160-28150

TCR10,20

FRONT DOOR,LH

 1
86160-95D02

TCR10,20

RH

 1
86160-28140

TCR10,20

FRONT DOOR,RH

 1
86160-95D01

TCR10,20

CENTER

 2
86160-28270

TCR10,20

RH

 1
86160-95D03

TCR10,20

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-28280

TCR10,20

LH

 1
86160-28150

TCR10,20

FRONT DOOR,LH

 1
86160-95D02

TCR10,20

RH

 1
86160-28140

TCR10,20

FRONT DOOR,RH

 1
86160-95D01

TCR10,20

CENTER

 2
86160-28270

TCR10,20

RH

 1
86160-95D03

TCR10,20

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-28280

TCR10,20

LH

 1
86160-28150

TCR10,20

FRONT DOOR,LH

 1
86160-95D02

TCR10,20

RH

 1
86160-28140

TCR10,20

FRONT DOOR,RH

 1
86160-95D01

TCR10,20

CENTER

 2
86160-28270

TCR10,20

RH

 1
86160-95D03

TCR10,20

LH

 1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-95D00

TCR10,20

RH

 1
86161-95D01

TCR10,20

LH

 1
86161D - BRACKET, SPEAKER MOUNTING, NO.1
86161-95D00

TCR10,20

RH

 1
86161-95D01

TCR10,20

LH

 1
Common parts
90189-06171
93315-15020
93567-15016

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

REAR SPEAKER

diagram 86160B 86160B 86160B 86269B 86269E 86279 9016760008 9016760008 9016760008 9018305016 9018305016 9018305016 9018906018 9018906018 9018906018
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86160-28210

TCR10,20

QUARTER LH

 1
86160-95D05

TCR10,20..USA

QUARTER RH RR-WOOFER

 1
86160-95D06

TCR10,20

QUARTER RH FR

 1
86160-95D07

TCR10,20

QUARTER LH

 1
86160B - SPEAKER ASSY, REAR
86160-28210

TCR10,20

QUARTER LH

 1
86160-95D05

TCR10,20..USA

QUARTER RH RR-WOOFER

 1
86160-95D06

TCR10,20

QUARTER RH FR

 1
86160-95D07

TCR10,20

QUARTER LH

 1
86160B - SPEAKER ASSY, REAR
86160-28210

TCR10,20

QUARTER LH

 1
86160-95D05

TCR10,20..USA

QUARTER RH RR-WOOFER

 1
86160-95D06

TCR10,20

QUARTER RH FR

 1
86160-95D07

TCR10,20

QUARTER LH

 1
86269B - GRILLE, SPEAKER
86269-95D0104

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
86269-95D0103

TCR10,20..05S

LIGHT GRAY,TRIM1#

 1
86269-95D0113

TCR10,20

LIGHT GRAY,TRIM1#

 1
86269-95D0106

TCR10,20

LIGHT TAN,TRIM4#

 1
86269-95D0114

TCR10,20

LIGHT BLUE,TRIM8#

 1
86269-95D01R9

TCR10,20

BLUE,TRIM8#

 1
86269E - GRILLE, SPEAKER
86269-95D0206

TCR10,20..USA

LIGHT TAN,TRIM4#

 1
86269-95D0204

TCR10,20..USA

LIGHT BLUE,TRIM8#

 1
86269-95D0203

TCR10,20..USA

LIGHT GRAY,TRIM1#

 1
86279 - GRILLE, SPEAKER, LH
86279-95D0104

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
86279-95D0103

TCR10,20..05S

LIGHT GRAY,TRIM1#

 1
86279-95D0106

TCR10,20

LIGHT TAN,TRIM4#

 1
86279-95D01R9

TCR10,20

BLUE,TRIM8#

 1
Common parts
90167-60008
90183-05016
90189-06018

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

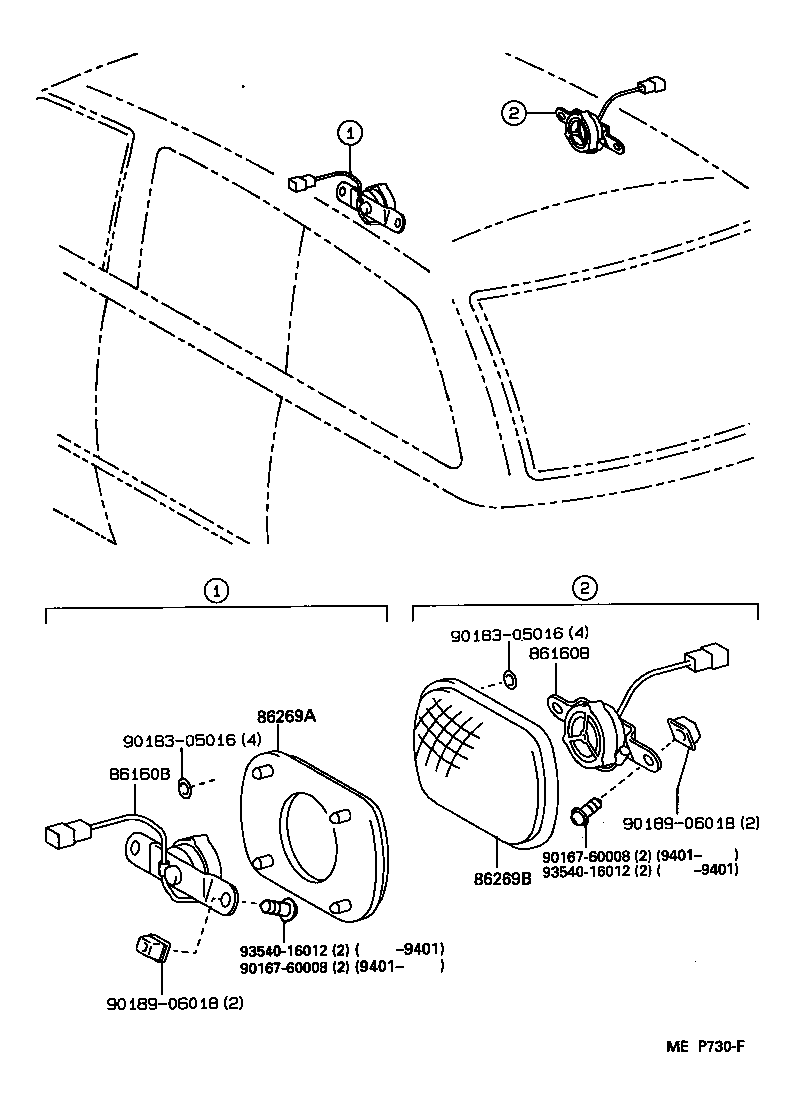

ROOF TWEETER

diagram 86160B 86160B 86269A 86269B 9016760008 9016760008 9018305016 9018305016 9018906018 9018906018 9354016012 9354016012
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86160-28210

TCR10,20

QUARTER LH

 1
86160-95D05

TCR10,20..USA

QUARTER RH RR-WOOFER

 1
86160-95D06

TCR10,20

QUARTER RH FR

 1
86160-95D07

TCR10,20

QUARTER LH

 1
86160B - SPEAKER ASSY, REAR
86160-28210

TCR10,20

QUARTER LH

 1
86160-95D05

TCR10,20..USA

QUARTER RH RR-WOOFER

 1
86160-95D06

TCR10,20

QUARTER RH FR

 1
86160-95D07

TCR10,20

QUARTER LH

 1
86269A - GRILLE, SPEAKER
86269-95D01E2

TCR10,20

GRAYGE,TRIM4#

 1
86269B - GRILLE, SPEAKER
86269-95D0104

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
86269-95D0103

TCR10,20..05S

LIGHT GRAY,TRIM1#

 1
86269-95D0113

TCR10,20

LIGHT GRAY,TRIM1#

 1
86269-95D0106

TCR10,20

LIGHT TAN,TRIM4#

 1
86269-95D0114

TCR10,20

LIGHT BLUE,TRIM8#

 1
86269-95D01R9

TCR10,20

BLUE,TRIM8#

 1
Common parts
90167-60008
90183-05016
90189-06018
93540-16012

ILLUST NO. 1 OF 2(9108- )

Click highlighted areas on diagram

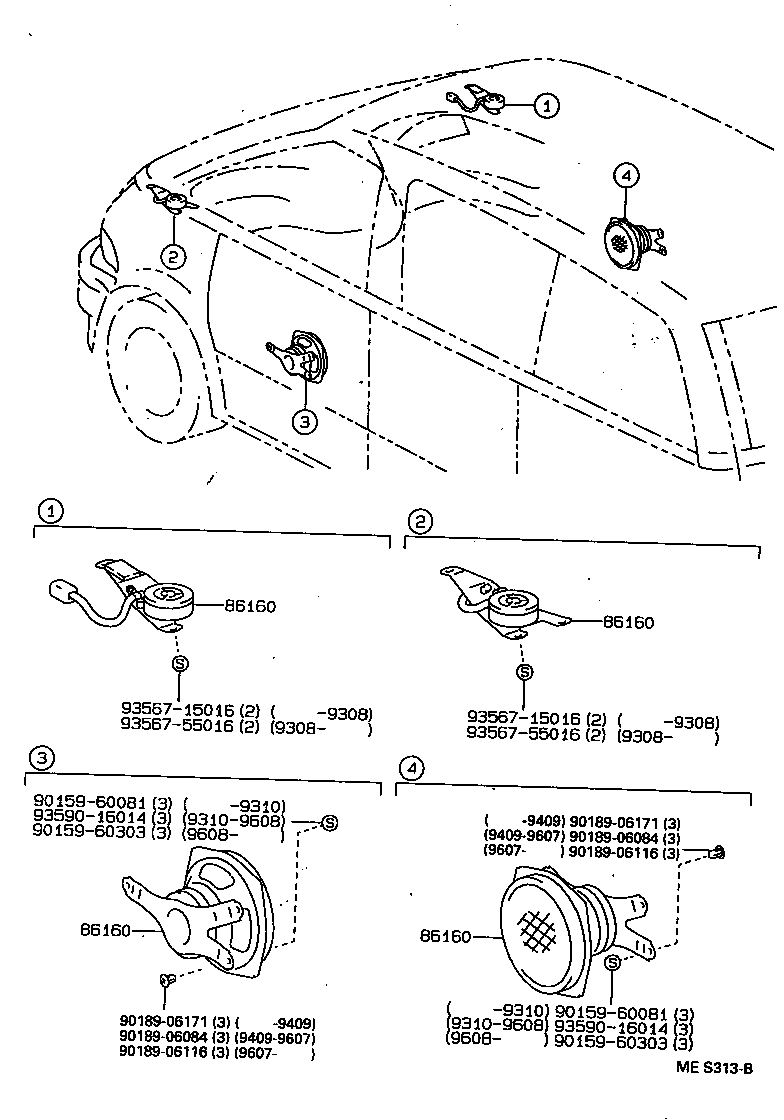

FRONT SPEAKER

diagram 86160 86160 86160 86160 9015960081 9015960081 9015960303 9015960303 9018906084 9018906084 9018906116 9018906116 9018906171 9018906171 9356715016 9356715016 9356755016 9356755016 9359016014 9359016014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-28280

TCR10,20

LH

 1
86160-28150

TCR10,20

FRONT DOOR,LH

 1
86160-95D02

TCR10,20

RH

 1
86160-28140

TCR10,20

FRONT DOOR,RH

 1
86160-95D01

TCR10,20

CENTER

 2
86160-28270

TCR10,20

RH

 1
86160-95D03

TCR10,20

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-28280

TCR10,20

LH

 1
86160-28150

TCR10,20

FRONT DOOR,LH

 1
86160-95D02

TCR10,20

RH

 1
86160-28140

TCR10,20

FRONT DOOR,RH

 1
86160-95D01

TCR10,20

CENTER

 2
86160-28270

TCR10,20

RH

 1
86160-95D03

TCR10,20

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-28280

TCR10,20

LH

 1
86160-28150

TCR10,20

FRONT DOOR,LH

 1
86160-95D02

TCR10,20

RH

 1
86160-28140

TCR10,20

FRONT DOOR,RH

 1
86160-95D01

TCR10,20

CENTER

 2
86160-28270

TCR10,20

RH

 1
86160-95D03

TCR10,20

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-28280

TCR10,20

LH

 1
86160-28150

TCR10,20

FRONT DOOR,LH

 1
86160-95D02

TCR10,20

RH

 1
86160-28140

TCR10,20

FRONT DOOR,RH

 1
86160-95D01

TCR10,20

CENTER

 2
86160-28270

TCR10,20

RH

 1
86160-95D03

TCR10,20

LH

 1
Common parts
90159-60081
90159-60303
90189-06084
90189-06116
90189-06171
93567-15016
93567-55016
93590-16014
