TCR20L-RESDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

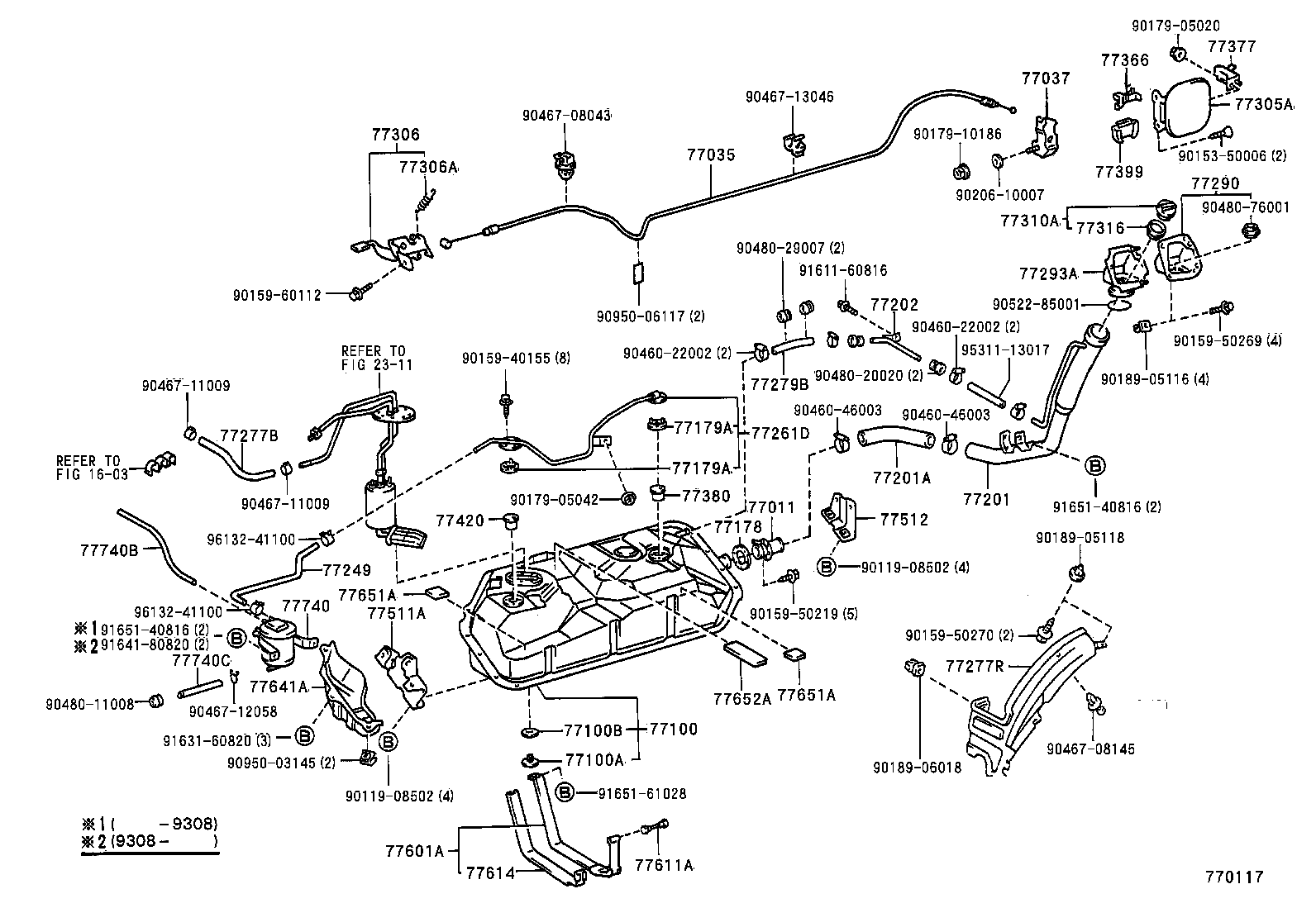

Click highlighted areas on diagram

diagram 1603 2311 77011 77035 77037 77100 77100A 77100B 77178 77179A 77179A 77201 77201A 77202 77249 77261D 77277B 77277R 77279B 77290 77293A 77305A 77306 77306A 77310A 77316 77366 77377 77380 77399 77420 77511A 77512 77601A 77611A 77614 77641A 77651A 77651A 77652A 77740 77740B 77740C 9011908502 9011908502 9015350006 9015940155 9015950219 9015950269 9015950270 9015960112 9017905020 9017905042 9017910186 9018905116 9018905118 9018906018 9020610007 9046022002 9046022002 9046046003 9046046003 9046708043 9046708145 9046711009 9046711009 9046712058 9046713046 9048011008 9048020020 9048029007 9048076001 9052285001 9095003145 9095006117 9161160816 9163160820 9164180820 9165140816 9165140816 9165161028 9531113017 9613241100 9613241100
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-28010

TCR10,20

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-95D00

TCR10,20

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-95D00

TCR10,20

 1
77100 - TANK ASSY, FUEL
77001-28310

TCR10,20

 1
77100A - PLUG(FOR FUEL TANK)
90341-20004

TCR10,20

 1
77100B - GASKET(FOR FUEL TANK)
90430-20007

TCR10,20

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

TCR10,20

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

TCR10,20

 2
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

TCR10,20

 2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-28090

TCR10,20

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77217-28040

TCR10,20

 1
77202 - TUBE SUB-ASSY, BREATHER
77203-28030

TCR10,20

 1
77249 - HOSE, FUEL EMISSION
77249-28070

TCR10,20

 1
77261D - TUBE, FUEL TANK TO CANISTER
77026-28050

TCR10,20

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06030

TCR10,20

*H,L=260

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-95D00

TCR10,20

 1
77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3)
77279-28030

TCR10,20

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-95D00

TCR10,20

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-95D00

TCR10,20

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-95D00

TCR10,20

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-95D00

TCR10,20

 1
77306A - SPRING, FUEL LID OPEN LEVER
90506-09004

TCR10,20

 1
77310A - CAP ASSY, FUEL TANK
77310-12140

TCR10,20

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

TCR10,20

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-95D00

TCR10,20

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20040

TCR10,20

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

TCR10,20

 1
77399 - HANGER, FUEL TANK CAP
77399-28010

TCR10,20

 1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010

TCR10,20

 1
77511A - BRACKET, FUEL TANK
77511-28070

TCR10,20

 1
77512 - BRACKET, FUEL TANK, REAR
77512-28010

TCR10,20

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-28050

TCR10,20

 1
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

TCR10,20

 1
77614 - SEAT, FUEL TANK BAND
77681-28020

TCR10,20

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-28040

TCR10,20

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-28030

TCR10,20

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-28030

TCR10,20

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-28010

TCR10,20

 1
77740 - CANISTER ASSY, CHARCOAL
77740-28110

TCR10,20..EFI

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
90999-92002

TCR10,20

*H,L=220,MARK=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90441-08004

TCR10,20

 1
Common parts
90119-08502
90153-50006
90159-40155
90159-50219
90159-50269
90159-50270
90159-60112
90179-05020
90179-05042
90179-10186
90189-05116
90189-05118
90189-06018
90206-10007
90460-22002
90460-46003
90467-08043
90467-08145
90467-11009
90467-12058
90467-13046
90480-11008
90480-20020
90480-29007
90480-76001
90522-85001
90950-03145
90950-06117
91611-60816
91631-60820
91641-80820
91651-40816
91651-61028
95311-13017
96132-41100
