TCR20L-RESDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

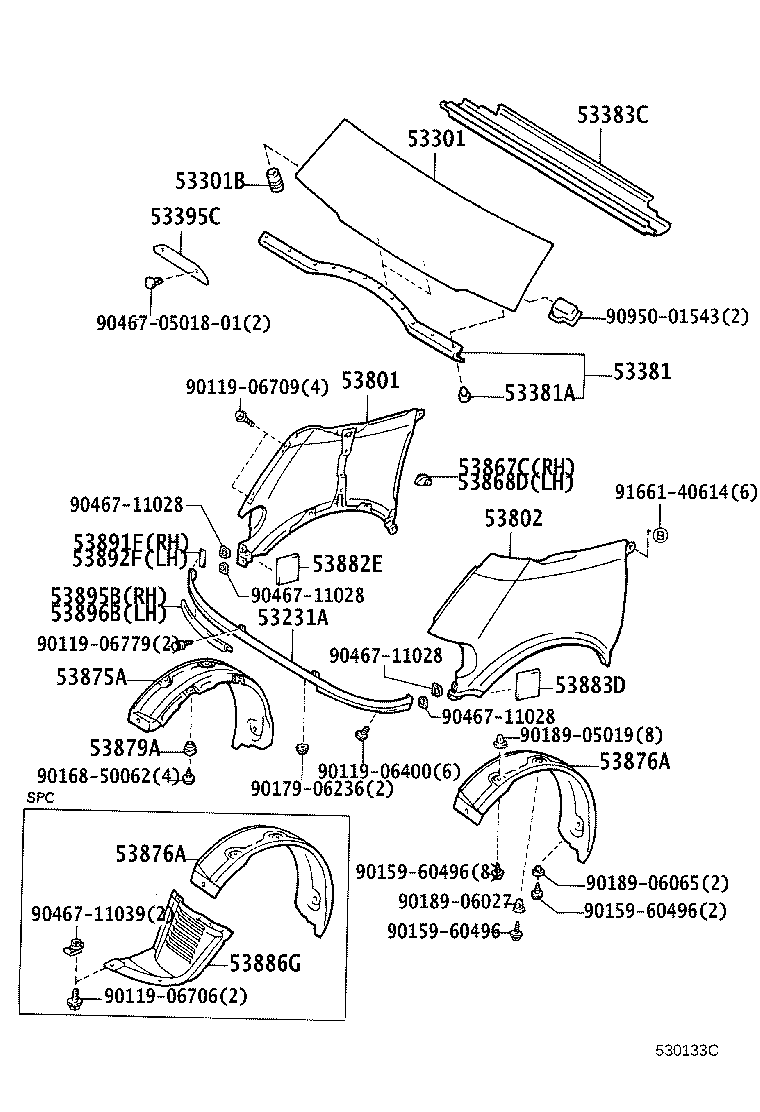

Click highlighted areas on diagram

diagram 53231A 53301 53301B 53381 53381A 53383C 53395C 53801 53802 53867C 53868D 53875A 53876A 53876A 53879A 53882E 53883D 53886G 53891F 53892F 53895B 53896B 9011906400 9011906706 9011906709 9011906779 9015960496 9015960496 9015960496 9016850062 9017906236 9018905019 9018906027 9018906065 904670501801 9046711028 9046711028 9046711028 9046711028 9046711039 9095001543 9166140614
Part # Description Qty Price
53231A - PANEL, LOWER SHROUD
53901-95D00

TCR10,20

 1
53301 - HOOD SUB-ASSY
53301-95D00

TCR10,20

 1
53301B - CUSHION, HOOD BUMPER
90541-15004

TCR10,20

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-95D00

TCR10,20

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

TCR10,20

 12
53383C - SEAL, HOOD TO COWL TOP
53383-95D00

TCR10,20

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-95D00

TCR10,20

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-95D00

TCR10,20

 1
53867C - RETAINER, FRONT SIDE PANEL, RH
53867-28010

TCR10,20

 1
53868D - RETAINER, FRONT SIDE PANEL, LH
53867-28010

TCR10,20

 1
53875A - LINER, FRONT FENDER, RH
53875-95D00

TCR10,20

 1
53876A - LINER, FRONT FENDER, LH
53876-95D00

TCR10,20

 1
53876A - LINER, FRONT FENDER, LH
53876-95D00

TCR10,20

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

TCR10,20

 4
53882E - SEAL, FRONT FENDER, RH
53882-28010

TCR10,20

 1
53883D - SEAL, FRONT FENDER, LH
53882-28010

TCR10,20

 1
53891F - PROTECTOR, FRONT FENDER LINER, RH
53891-28010

TCR10,20

 1
53892F - PROTECTOR, FRONT FENDER LINER, LH
53891-28010

TCR10,20

 1
53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH
53895-28010

TCR10,20

 1
53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH
53895-28010

TCR10,20

 1
Common parts
90119-06400
90119-06706
90119-06709
90119-06779
90159-60496
90168-50062
90179-06236
90189-05019
90189-06027
90189-06065
90467-0501801
90467-11028
90467-11039
90950-01543
91661-40614
