TCR20L-RESDKA (1990)
Toyota Previa
Production
Jan 1990
-
Aug 1995
Engine
2TZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

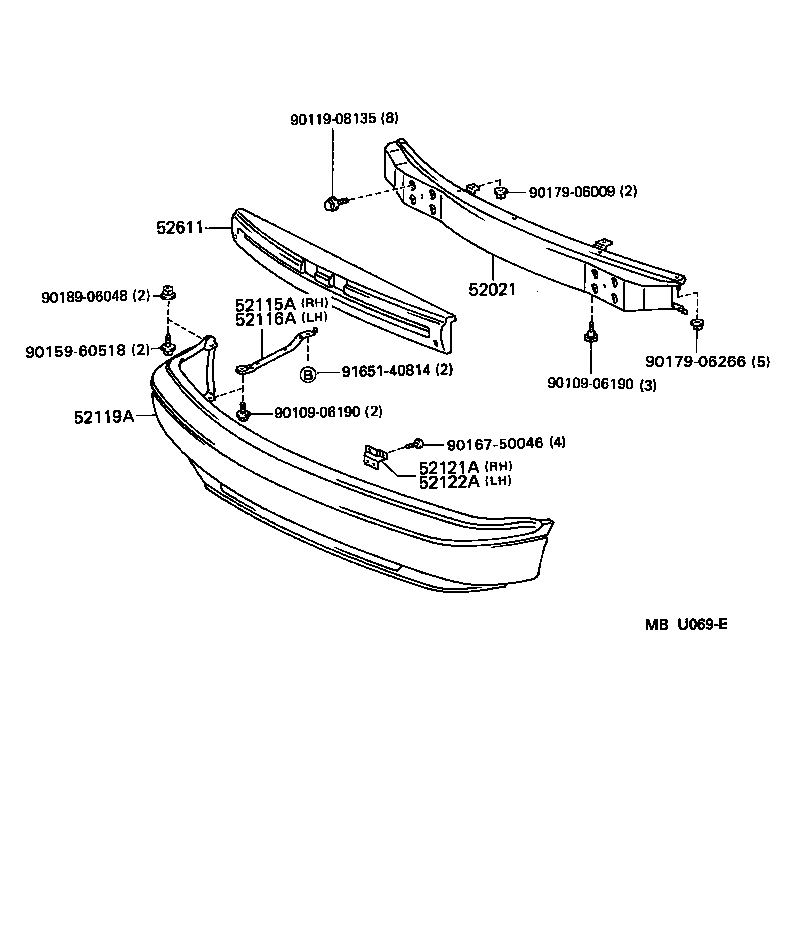

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-95D01 |
TCR10,20 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-95D00 |
TCR10,20 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-95D00 |
TCR10,20 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-95D0306 |
TCR10,20 BROWN GRAY,4K9 ,4L6 |
1 | ||
| 52119-95D0313 |
TCR10,20..05S WARM GRAY,3H8 ,4K9 |
1 | ||
| 52119-95D0303 |
TCR10,20 COOL GRAY,041 ,6L3 ,8G2 ,8H4 ,8H5 |
1 | ||
| 52119-28210B1 |
TCR10,20..05S WARM GRAY,3H8 ,4K9 |
1 | ||
| 52119-28210B0 |
TCR10,20 COOL GRAY,041 ,6L3 ,751 ,8H4 ,8H5 ,8K2 |
1 | ||
| 52119-95D0303 |
TCR10,20..05S COOL GRAY,041 ,6L3 ,8G2 ,8H3 ,8H5 |
1 | ||
| 52119-95D0313 |
TCR10,20..05S WARM GRAY,3H8 |
1 | ||
| 52119-28210B0 |
TCR10,20 COOL GRAY,041 ,191 ,750 ,751 ,8K2 |
1 | ||
| 52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH | ||||
| 52121-95D00 |
TCR10,20 |
1 | ||
| 52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH | ||||
| 52122-95D00 |
TCR10,20 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-95D00 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90109-06190 | ||||
| 90119-08135 | ||||
| 90159-60518 | ||||
| 90167-50046 | ||||
| 90179-06009 | ||||
| 90179-06266 | ||||
| 90189-06048 | ||||
| 91651-40814 | ||||
