TCR20L-REMDKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1991
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

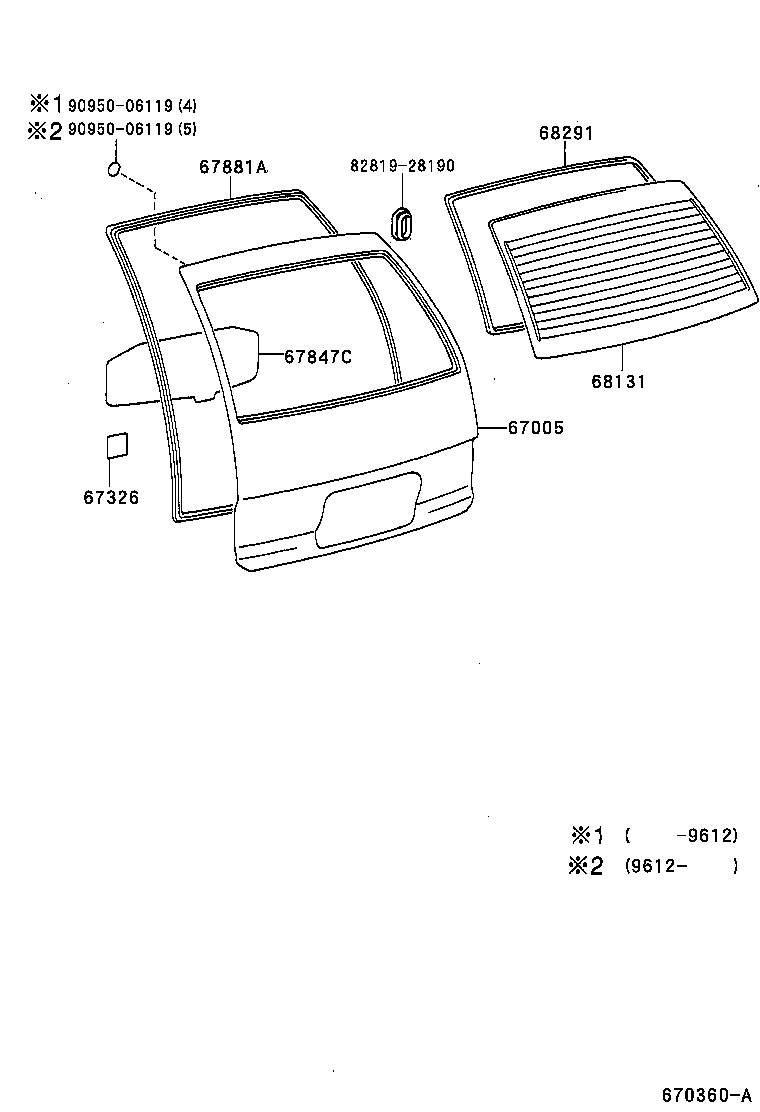

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

diagram 67005 67326 67847C 67881A 68131 68291 8281928190 9095006119 9095006119
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95D23

TCR10,20

 1
67005-95D14

TCR10,20

W(REAR WINDOW WIPER)

 1
67326 - PAD, BACK DOOR OUTER PANEL
67326-28010

TCR10,20

 2
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95D00

TCR10,20

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-95D00

TCR10,20

 1
68131 - GLASS, BACK DOOR
68131-95D10

TCR10,20..05S

*TEM,T=3.5,CLEAR

 1
68131-95D02

TCR10,20..05S

*EHTT,T=3.5,BLUE,W(REAR WINDOW DEFOGGER)

 1
68131-95D12

TCR10,20..05S

*TT,T=3.5,BLUE

 1
68131-95D00

TCR10,20..05S

*EHT,T=3.5,CLEAR,W(REAR WINDOW DEFOGGER)

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95D00

TCR10,20

 1
Common parts
82819-28190
90950-06119

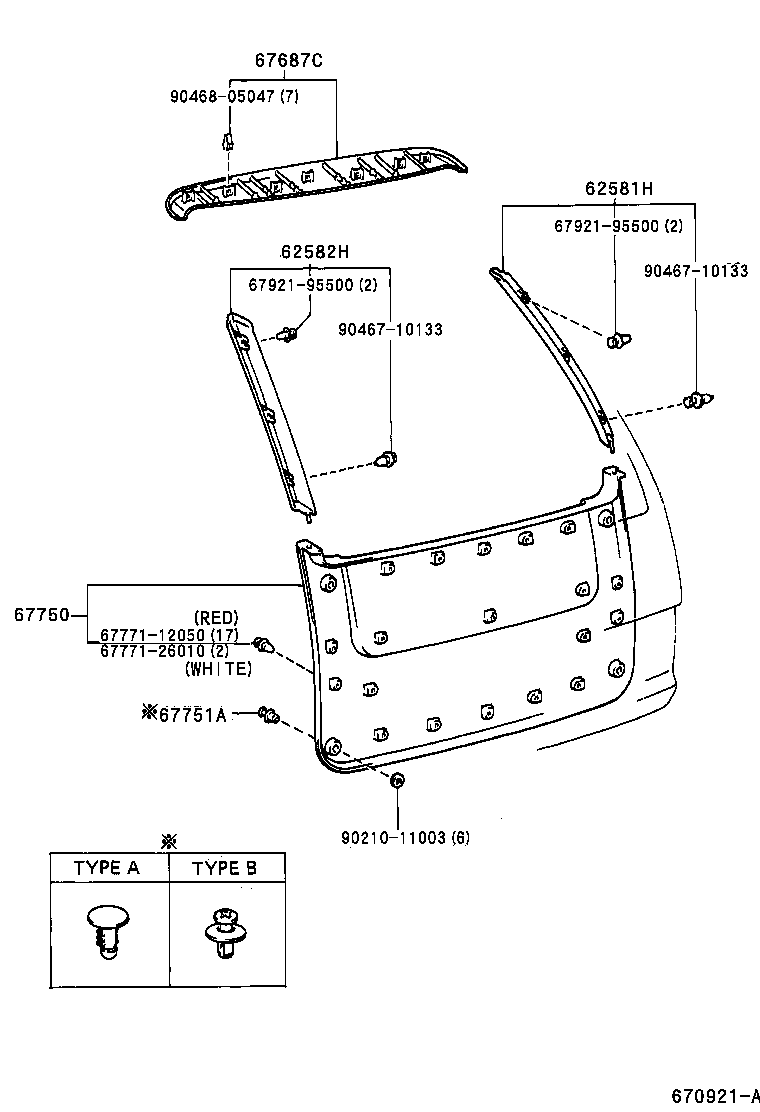

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram 62581H 62582H 67687C 67750 67751A 6777112050 6777126010 6792195500 6792195500 9021011003 9046710133 9046710133 9046805047
Part # Description Qty Price
62581H - GARNISH, REAR WINDOW SIDE, RH
62581-95D0103

TCR10,20..05S

LIGHT GRAY,TRIM1#

 1
62581-95D0104

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
62581-95D0003

TCR10,20

W(REAR WINDOW DEFOGGER),LIGHT GRAY,TRIM1#

 1
62581-95D0004

TCR10,20

W(REAR WINDOW DEFOGGER),LIGHT BLUE,TRIM8#

 1
62581-95D0106

TCR10,20..05S

LIGHT TAN,TRIM4#

 1
62581-95D0006

TCR10,20..05S

W(REAR WINDOW DEFOGGER),LIGHT TAN,TRIM4#

 1
62582H - GARNISH, REAR WINDOW SIDE, LH
62582-95D0106

TCR10,20..05S

LIGHT TAN,TRIM4#

 1
62582-95D0103

TCR10,20..05S

LIGHT GRAY,TRIM1#

 1
62582-95D0104

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
62582-95D0004

TCR10,20

W(REAR WINDOW DEFOGGER),LIGHT BLUE,TRIM8#

 1
62582-95D0006

TCR10,20..05S

W(REAR WINDOW DEFOGGER),LIGHT TAN,TRIM4#

 1
62582-95D0003

TCR10,20

W(REAR WINDOW DEFOGGER),LIGHT GRAY,TRIM1#

 1
67687C - GARNISH, BACK WINDOW
67687-95D0006

TCR10,20

LIGHT TAN,TRIM4#

 1
67687-95D0003

TCR10,20

LIGHT GRAY,TRIM1#

 1
67687-95D0004

TCR10,20

LIGHT BLUE,TRIM8#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-95D0406

TCR10,20

TAN,TRIM4#

 1
67750-95D0404

TCR10,20

BLUE,TRIM8#

 1
67750-95D0403

TCR10,20

GRAY,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-1003410

TCR10,20

TAN,TRIM4#

 2
90467-1003423

TCR10,20

GRAY,TRIM1#

 2
90467-1003444

TCR10,20

BLUE,TRIM8#

 2
90467-0814406

TCR10,20

LIGHT TAN,TRIM4#,TYPE B

 2
90467-08055

TCR10,20

TYPE B

 2
90467-1003410

TCR10,20

TAN,TRIM4#,TYPE A

 2
Common parts
67771-12050
67771-26010
67921-95500
90210-11003
90467-10133
90468-05047
