TCR20L-REMDKA (1990)
Toyota Previa
Production
Jan 1990
-
Aug 1992
Engine
2TZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

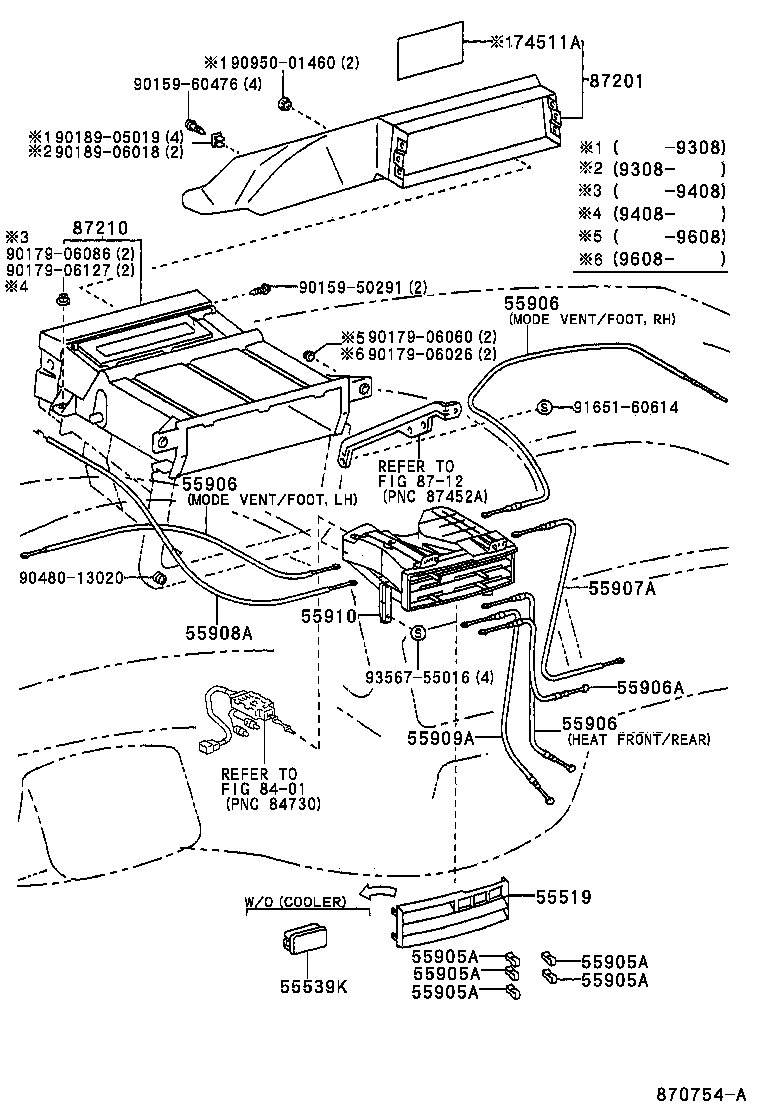

ILLUST NO. 2 OF 2(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95D00 |
TCR10,20 |
1 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-95D00 |
TCR10,20 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95D00 |
TCR10,20 |
5 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95D00 |
TCR10,20 |
5 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95D00 |
TCR10,20 |
5 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95D00 |
TCR10,20 |
5 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95D00 |
TCR10,20 |
5 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-95D10 |
TCR10,20 HEAT FRONT/REAR |
1 | ||
| 55906-95D13 |
TCR10,20 MODE VENT/FOOT,RH |
1 | ||
| 55906-95D14 |
TCR10,20 MODE VENT/FOOT,LH |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-95D10 |
TCR10,20 HEAT FRONT/REAR |
1 | ||
| 55906-95D13 |
TCR10,20 MODE VENT/FOOT,RH |
1 | ||
| 55906-95D14 |
TCR10,20 MODE VENT/FOOT,LH |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-95D10 |
TCR10,20 HEAT FRONT/REAR |
1 | ||
| 55906-95D13 |
TCR10,20 MODE VENT/FOOT,RH |
1 | ||
| 55906-95D14 |
TCR10,20 MODE VENT/FOOT,LH |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95D11 |
TCR10,20 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95D01 |
TCR10,20..EFI |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95D00 |
TCR10,20 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95D02 |
TCR10,20 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95D02 |
TCR10,20 |
1 | ||
| 74511A - PLATE, NAME | ||||
| 74511-28310 |
TCR10,20 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-28030 |
TCR10,20 |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95D01 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90159-50291 | ||||
| 90159-60476 | ||||
| 90179-06026 | ||||
| 90179-06060 | ||||
| 90179-06086 | ||||
| 90179-06127 | ||||
| 90189-05019 | ||||
| 90189-06018 | ||||
| 90480-13020 | ||||
| 90950-01460 | ||||
| 91651-60614 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8712 | ||||

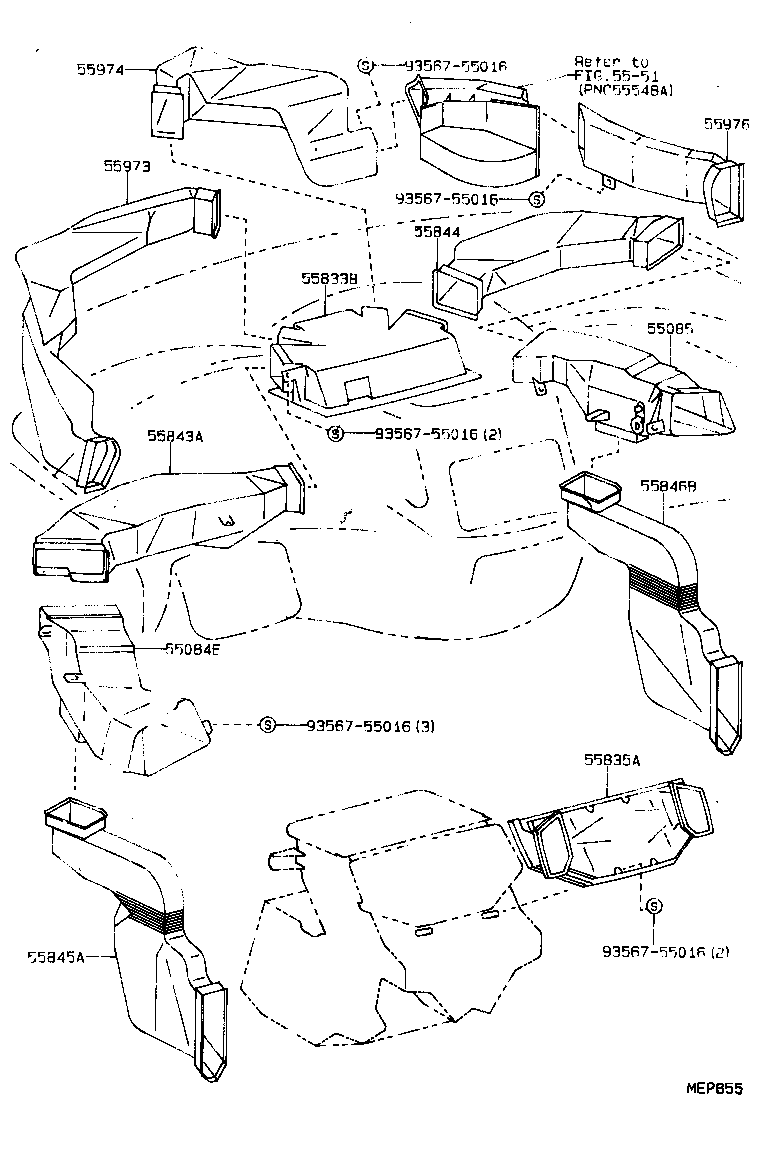

ILLUST NO. 1 OF 2(9001-9308)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-95D00 |
TCR10,20 |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-95D00 |
TCR10,20 |
1 | ||
| 55833B - CONNECTOR, INSTRUMENT PANEL REGISTER, CENTER | ||||
| 55833-95D00 |
TCR10,20 |
1 | ||
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-95D00 |
TCR10,20 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-95D00 |
TCR10,20 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-95D00 |
TCR10,20 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-95D00 |
TCR10,20..USA |
1 | ||
| 55845-95D02 |
TCR10,20..USA COLD SPEC |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-95D02 |
TCR10,20..USA COLD SPEC |
1 | ||
| 55846-95D00 |
TCR10,20..USA |
1 | ||
| 55973 - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55973-95D00 |
TCR10,20 |
1 | ||
| 55974 - DUCT, SIDE DEFROSTER NOZZLE, NO.4 | ||||
| 55974-95D00 |
TCR10,20 |
1 | ||
| 55976 - DUCT, SIDE DEFROSTER NOZZLE, NO.6 | ||||
| 55976-95D00 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5551 | ||||
