Toyota Previa TCR20 METER - JDM Part Detective

TCR20L-REMDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1992

Engine 2TZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

CLOCK

Part #	Description	Period	Qty
83910 - CLOCK ASSY
83910-95D01	TCR10,20	01/1990 - 07/1997	1
Common parts
91611-60816
93567-15016

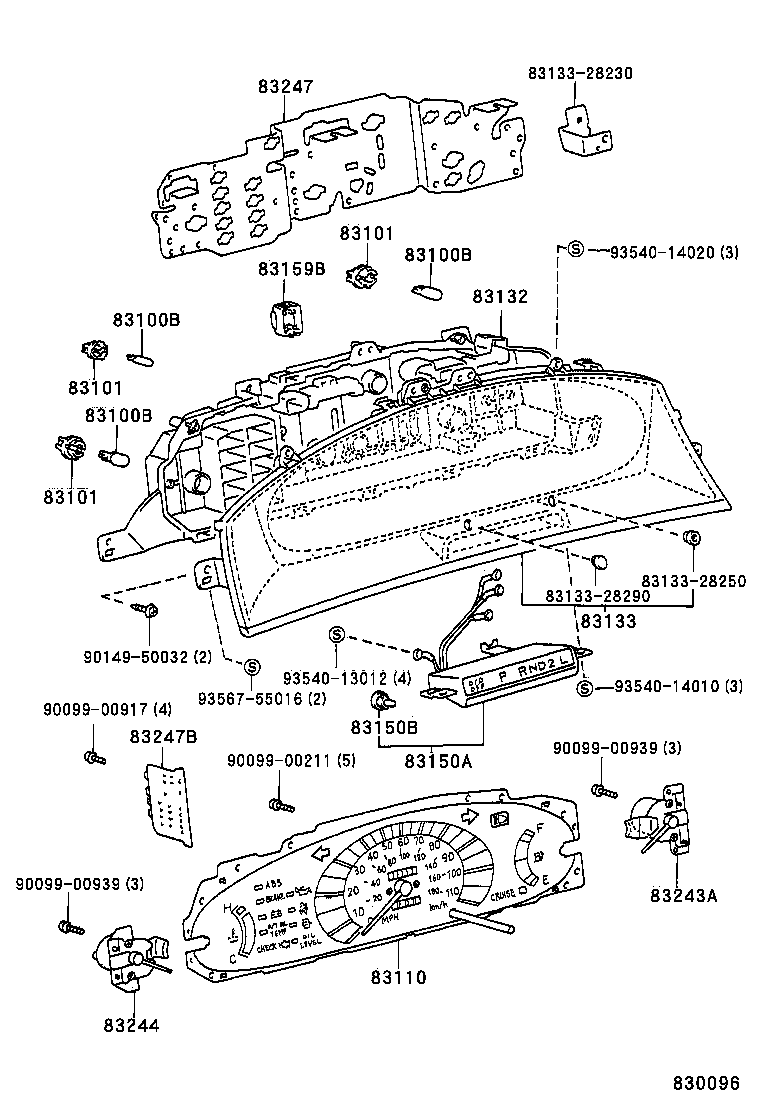

ILLUST NO. 1 OF 3(9001-9308)

Click highlighted areas on diagram

SPEEDOMETER

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
90981-11018	TCR10,20 12V 1.2W W/O SOCKET,SOCKET:83101-14040	01/1990 - 12/2999	15
83109-24030	TCR10,20 12V3.4W W(GREEN CAP),SOCKET:83101-14030	01/1990 - 07/1997	4
99132-12034	TCR10,20 12V 3.4W	01/1990 - 07/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	TCR10,20 12V 1.2W W/O SOCKET,SOCKET:83101-14040	01/1990 - 12/2999	15
83109-24030	TCR10,20 12V3.4W W(GREEN CAP),SOCKET:83101-14030	01/1990 - 07/1997	4
99132-12034	TCR10,20 12V 3.4W	01/1990 - 07/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	TCR10,20 12V 1.2W W/O SOCKET,SOCKET:83101-14040	01/1990 - 12/2999	15
83109-24030	TCR10,20 12V3.4W W(GREEN CAP),SOCKET:83101-14030	01/1990 - 07/1997	4
99132-12034	TCR10,20 12V 3.4W	01/1990 - 07/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	TCR10,20 BULB:12V 3.4W	01/1990 - 07/1997	5
83101-14040	TCR10,20 BULB:12V 1.2W	01/1990 - 12/2999	15
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	TCR10,20 BULB:12V 3.4W	01/1990 - 07/1997	5
83101-14040	TCR10,20 BULB:12V 1.2W	01/1990 - 12/2999	15
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	TCR10,20 BULB:12V 3.4W	01/1990 - 07/1997	5
83101-14040	TCR10,20 BULB:12V 1.2W	01/1990 - 12/2999	15
83110 - SPEEDOMETER ASSY
83110-95D00	TCR10,20..MTM..USA W(TACHOMETER)	01/1990 - 05/1990	1
83110-95D01	TCR10,20..MTM..USA	01/1990 - 05/1990	1
83110-95D20	TCR10,20..MTM..USA W(TACHOMETER & CRUISE CONTROL)	01/1990 - 05/1990	1
83110-95D11	TCR10,20..MTM..USA W(CRUISE CONTROL)	01/1990 - 05/1990	1
83110-95D43	TCR10,20..MTM..USA W(*AEOF & CRUISE CONTROL)	01/1990 - 05/1990	1
83110-95D42	TCR10,20..MTM..USA W(*AEOF)	01/1990 - 05/1990	1
83110-95D52	TCR10,20..MTM..USA W(*AEOF & TACHOMETER)	01/1990 - 05/1990	1
83110-95D53	TCR10,20..MTM..USA W(AEOF & TAC & CRUISE CONTROL)	01/1990 - 05/1990	1
83110-95D42	TCR10,20..MTM..USA	05/1990 - 08/1991	1
83110-95D43	TCR10,20..MTM..USA W(CRUISE CONTROL)	05/1990 - 08/1991	1
83110-95D52	TCR10,20..MTM..USA W(TACHOMETER)	05/1990 - 08/1991	1
83110-95D53	TCR10,20..MTM..USA W(TACHOMETER & CRUISE CONTROL)	05/1990 - 08/1991	1
83132 - CASE, COMBINATION METER
83132-95D21	TCR10,20	05/1990 - 08/1991	1
83132-95D19	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83132-95D21	TCR10,20..MTM..USA W(*AEOF) OR W(CRUISE CONTROL)	01/1990 - 05/1990	1
83132-95D19	TCR10,20..MTM..USA W(AEOF & CRUISE CONTROL & TAC) OR W(CRUISE CONTROL & TAC) OR W(TAC)	01/1990 - 05/1990	1
83133 - PLATE, COMBINATION METER, NO.1
83133-95D27	TCR10,20..MTM W(AEOF & CRUISE CONTROL & TAC) OR W(AEOF & TAC)	01/1990 - 05/1990	1
83133-95D27	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83133-95D31	TCR10,20..MTM W(*AFOF)	01/1990 - 05/1990	1
83133-95D19	TCR10,20..MTM..USA W(CRUISE CONTROL)	01/1990 - 05/1990	1
83133-95D31	TCR10,20..MTM	05/1990 - 08/1991	1
83159B - RELAY ASSY, METER
83159-22170	TCR10,20	01/1990 - 07/1997	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-95D11	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83243-95D09	TCR10,20..MTM..USA W(*AEOF) OR W(CRUISE CONTROL)	01/1990 - 05/1990	1
83243-95D09	TCR10,20	05/1990 - 08/1991	1
83243-95D11	TCR10,20..MTM..USA W(AEOF & CRUISE CONTROL & TAC) OR W(CRUISE CONTROL & TAC) OR W(TAC)	01/1990 - 05/1990	1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-95D03	TCR10,20..MTM..USA W(*AEOF) OR W(CRUISE CONTROL)	01/1990 - 05/1990	1
83244-95D05	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83244-95D05	TCR10,20..MTM..USA W(AEOF & CRUISE CONTROL & TAC) OR W(CRUISE CONTROL & TAC) OR W(TAC)	01/1990 - 05/1990	1
83244-95D03	TCR10,20	05/1990 - 08/1991	1
83247 - PLATE, METER CIRCUIT
83247-95D27	TCR10,20..MTM W(*TAC)	01/1990 - 05/1990	1
83247-95D25	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83247-95D33	TCR10,20..MTM..USA W(*AEOF & CRUISE CONTROL)	01/1990 - 05/1990	1
83247-95D35	TCR10,20..MTM..USA W(CRUISE CONTROL)	01/1990 - 05/1990	1
83247-95D25	TCR10,20..MTM..USA W(TAC & AEOF & CRUISE CONTROL)	01/1990 - 05/1990	1
83247-95D33	TCR10,20..MTM..USA W(CRUISE CONTROL)	05/1990 - 08/1991	1
83247B - PLATE, METER CIRCUIT, NO.2
83247-95D43	TCR10,20..MTM..USA W(CRUISE CONTROL)	01/1990 - 05/1990	1
83247-95D41	TCR10,20..MTM W(TACHOMETER)	01/1990 - 05/1990	1
Common parts
83133-28230
83133-28250
83133-28290
90099-00211
90099-00917
90099-00939
90149-50032
93540-13012
93540-14010
93540-14020
93567-55016

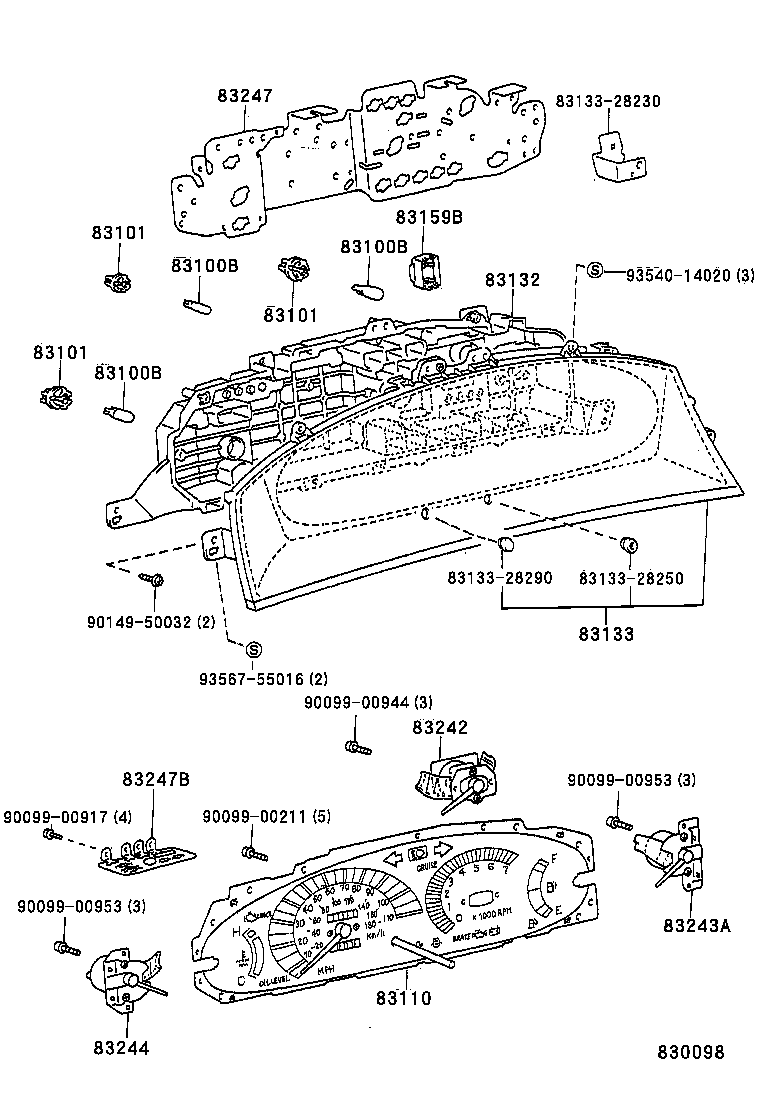

ILLUST NO. 1 OF 3(9001-9308)

Click highlighted areas on diagram

SPEEDOMETER(W/TACHOMETER)

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
90981-11018	TCR10,20 12V 1.2W W/O SOCKET,SOCKET:83101-14040	01/1990 - 12/2999	15
83109-24030	TCR10,20 12V3.4W W(GREEN CAP),SOCKET:83101-14030	01/1990 - 07/1997	4
99132-12034	TCR10,20 12V 3.4W	01/1990 - 07/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	TCR10,20 12V 1.2W W/O SOCKET,SOCKET:83101-14040	01/1990 - 12/2999	15
83109-24030	TCR10,20 12V3.4W W(GREEN CAP),SOCKET:83101-14030	01/1990 - 07/1997	4
99132-12034	TCR10,20 12V 3.4W	01/1990 - 07/1997	1
83100B - BULB, COMBINATION METER, NO.1
90981-11018	TCR10,20 12V 1.2W W/O SOCKET,SOCKET:83101-14040	01/1990 - 12/2999	15
83109-24030	TCR10,20 12V3.4W W(GREEN CAP),SOCKET:83101-14030	01/1990 - 07/1997	4
99132-12034	TCR10,20 12V 3.4W	01/1990 - 07/1997	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	TCR10,20 BULB:12V 3.4W	01/1990 - 07/1997	5
83101-14040	TCR10,20 BULB:12V 1.2W	01/1990 - 12/2999	15
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	TCR10,20 BULB:12V 3.4W	01/1990 - 07/1997	5
83101-14040	TCR10,20 BULB:12V 1.2W	01/1990 - 12/2999	15
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	TCR10,20 BULB:12V 3.4W	01/1990 - 07/1997	5
83101-14040	TCR10,20 BULB:12V 1.2W	01/1990 - 12/2999	15
83110 - SPEEDOMETER ASSY
83110-95D00	TCR10,20..MTM..USA W(TACHOMETER)	01/1990 - 05/1990	1
83110-95D01	TCR10,20..MTM..USA	01/1990 - 05/1990	1
83110-95D20	TCR10,20..MTM..USA W(TACHOMETER & CRUISE CONTROL)	01/1990 - 05/1990	1
83110-95D11	TCR10,20..MTM..USA W(CRUISE CONTROL)	01/1990 - 05/1990	1
83110-95D43	TCR10,20..MTM..USA W(*AEOF & CRUISE CONTROL)	01/1990 - 05/1990	1
83110-95D42	TCR10,20..MTM..USA W(*AEOF)	01/1990 - 05/1990	1
83110-95D52	TCR10,20..MTM..USA W(*AEOF & TACHOMETER)	01/1990 - 05/1990	1
83110-95D53	TCR10,20..MTM..USA W(AEOF & TAC & CRUISE CONTROL)	01/1990 - 05/1990	1
83110-95D42	TCR10,20..MTM..USA	05/1990 - 08/1991	1
83110-95D43	TCR10,20..MTM..USA W(CRUISE CONTROL)	05/1990 - 08/1991	1
83110-95D52	TCR10,20..MTM..USA W(TACHOMETER)	05/1990 - 08/1991	1
83110-95D53	TCR10,20..MTM..USA W(TACHOMETER & CRUISE CONTROL)	05/1990 - 08/1991	1
83132 - CASE, COMBINATION METER
83132-95D21	TCR10,20	05/1990 - 08/1991	1
83132-95D19	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83132-95D21	TCR10,20..MTM..USA W(*AEOF) OR W(CRUISE CONTROL)	01/1990 - 05/1990	1
83132-95D19	TCR10,20..MTM..USA W(AEOF & CRUISE CONTROL & TAC) OR W(CRUISE CONTROL & TAC) OR W(TAC)	01/1990 - 05/1990	1
83133 - PLATE, COMBINATION METER, NO.1
83133-95D27	TCR10,20..MTM W(AEOF & CRUISE CONTROL & TAC) OR W(AEOF & TAC)	01/1990 - 05/1990	1
83133-95D27	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83133-95D31	TCR10,20..MTM W(*AFOF)	01/1990 - 05/1990	1
83133-95D19	TCR10,20..MTM..USA W(CRUISE CONTROL)	01/1990 - 05/1990	1
83133-95D31	TCR10,20..MTM	05/1990 - 08/1991	1
83159B - RELAY ASSY, METER
83159-22170	TCR10,20	01/1990 - 07/1997	1
83242 - TACHOMETER ASSY, ENGINE
83242-95D19	TCR10,20..MTM	01/1990 - 08/1991	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-95D11	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83243-95D09	TCR10,20..MTM..USA W(*AEOF) OR W(CRUISE CONTROL)	01/1990 - 05/1990	1
83243-95D09	TCR10,20	05/1990 - 08/1991	1
83243-95D11	TCR10,20..MTM..USA W(AEOF & CRUISE CONTROL & TAC) OR W(CRUISE CONTROL & TAC) OR W(TAC)	01/1990 - 05/1990	1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-95D03	TCR10,20..MTM..USA W(*AEOF) OR W(CRUISE CONTROL)	01/1990 - 05/1990	1
83244-95D05	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83244-95D05	TCR10,20..MTM..USA W(AEOF & CRUISE CONTROL & TAC) OR W(CRUISE CONTROL & TAC) OR W(TAC)	01/1990 - 05/1990	1
83244-95D03	TCR10,20	05/1990 - 08/1991	1
83247 - PLATE, METER CIRCUIT
83247-95D27	TCR10,20..MTM W(*TAC)	01/1990 - 05/1990	1
83247-95D25	TCR10,20..MTM W(*TAC)	05/1990 - 08/1991	1
83247-95D33	TCR10,20..MTM..USA W(*AEOF & CRUISE CONTROL)	01/1990 - 05/1990	1
83247-95D35	TCR10,20..MTM..USA W(CRUISE CONTROL)	01/1990 - 05/1990	1
83247-95D25	TCR10,20..MTM..USA W(TAC & AEOF & CRUISE CONTROL)	01/1990 - 05/1990	1
83247-95D33	TCR10,20..MTM..USA W(CRUISE CONTROL)	05/1990 - 08/1991	1
83247B - PLATE, METER CIRCUIT, NO.2
83247-95D43	TCR10,20..MTM..USA W(CRUISE CONTROL)	01/1990 - 05/1990	1
83247-95D41	TCR10,20..MTM W(TACHOMETER)	01/1990 - 05/1990	1
Common parts
83133-28230
83133-28250
83133-28290
90099-00211
90099-00917
90099-00944
90099-00953
90149-50032
93540-14020
93567-55016

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

SENSER

Part #	Description	Period	Qty
83181A - SENSOR, SPEEDOMETER
83181-20040	TCR10,20	01/1990 - 08/1993	1
83181A - SENSOR, SPEEDOMETER
83181-20040	TCR10,20	01/1990 - 08/1993	1
83783 - KEY, SPEEDMETER SENSOR
83783-22010	TCR10,20	01/1990 - 08/1993	1
