TCR20L-REMDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1992
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

Click highlighted areas on diagram

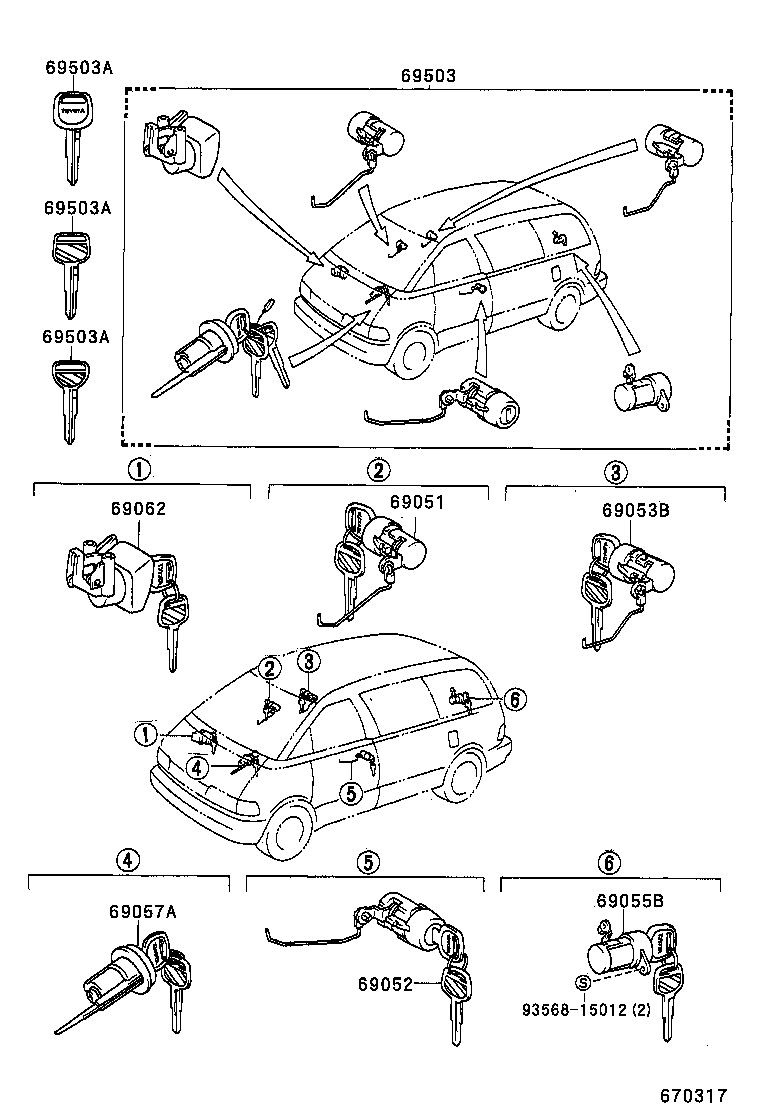

diagram 69051 69052 69053B 69055B 69057A 69062 69503 69503A 69503A 69503A 9356815012
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95D02

TCR10,20

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95D02

TCR10,20

 1
69053B - CYLINDER & KEY SET, SLIDE DOOR LOCK, RH
69053-95D00

TCR10,20

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-95D00

TCR10,20

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95D00

TCR10,20

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-95D0006

TCR10,20

LIGHT TAN,TRIM4#

 1
69056-95D0003

TCR10,20

LIGHT GRAY,TRIM1#

 1
69056-95D0004

TCR10,20

LIGHT BLUE,TRIM8#

 1
69503 - CYLINDER SET, LOCK
69503-95D0303

TCR10,20

LIGHT GRAY,TRIM1#

 1
69503-95D0306

TCR10,20

LIGHT TAN,TRIM4#

 1
69503-95D0304

TCR10,20

LIGHT BLUE,TRIM8#

 1
69503A - KEY, BLANK
90999-00167

TCR10,20

MASTER KEY

 1
90999-00168

TCR10,20

SUB KEY

 1
90999-00166

TCR10,20

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00167

TCR10,20

MASTER KEY

 1
90999-00168

TCR10,20

SUB KEY

 1
90999-00166

TCR10,20

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00167

TCR10,20

MASTER KEY

 1
90999-00168

TCR10,20

SUB KEY

 1
90999-00166

TCR10,20

MASTER KEY,W(*68)

 1
Common parts
93568-15012
