TCR20L-REMDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1992
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

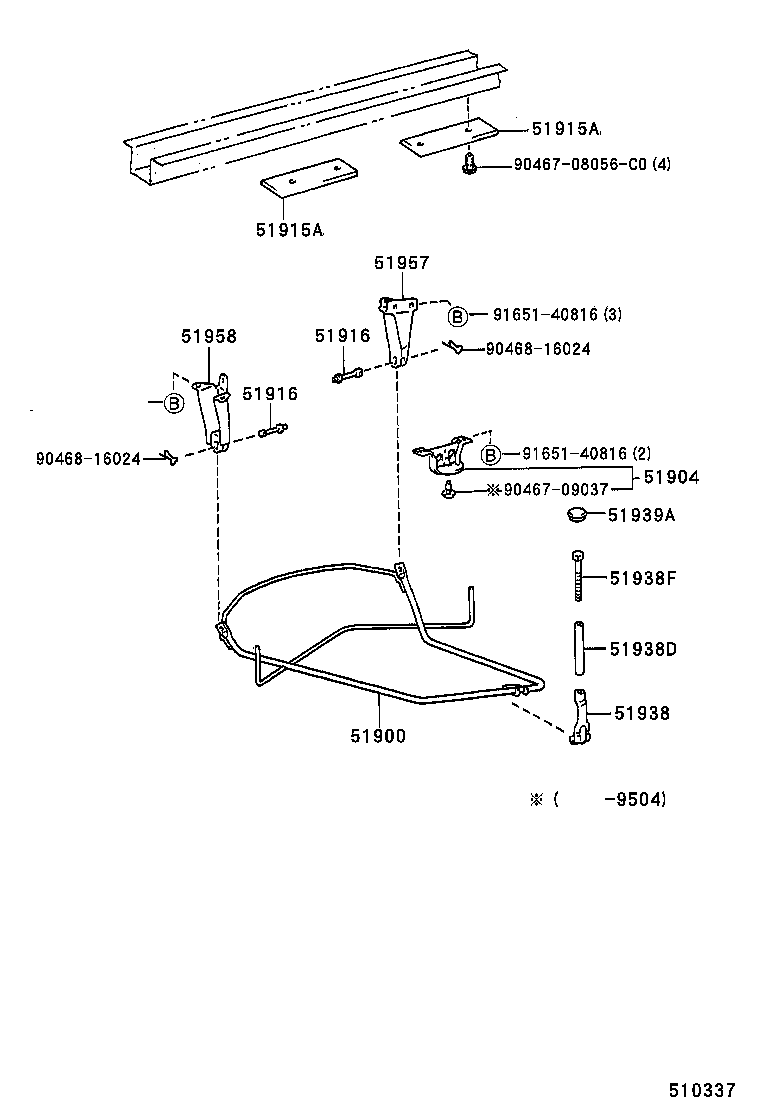

Click highlighted areas on diagram

diagram 51900 51904 51915A 51915A 51916 51916 51938 51938D 51938F 51939A 51957 51958 9046708056C0 9046709037 9046816024 9046816024 9165140816 9165140816
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-28160

TCR10,20

 1
51904 - BRACKET SUB-ASSY, SPEARE WHEEL CARRIER
51904-28040

TCR10,20

 1
51916 - PIN, SPARE TIRE CARRIER
51916-27020

TCR10,20

 2
51916 - PIN, SPARE TIRE CARRIER
51916-27020

TCR10,20

 2
51938 - LOCK, SPARE WHEEL CARRIER
51938-27070

TCR10,20

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90440-17051

TCR10,20

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
90119-12190

TCR10,20

 1
51939A - CAP, SPARE WHEEL CARRIER HANDLE
90950-01119

TCR10,20

 1
51957 - BRACKET, SPARE WHEEL CARRIER HINGE, RH
51957-28010

TCR10,20

 1
51958 - BRACKET, SPARE WHEEL CARRIER HINGE, LH
51958-28010

TCR10,20

 1
Common parts
90467-08056C0
90467-09037
90468-16024
91651-40816
