TCR10L-RFSGKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1996
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

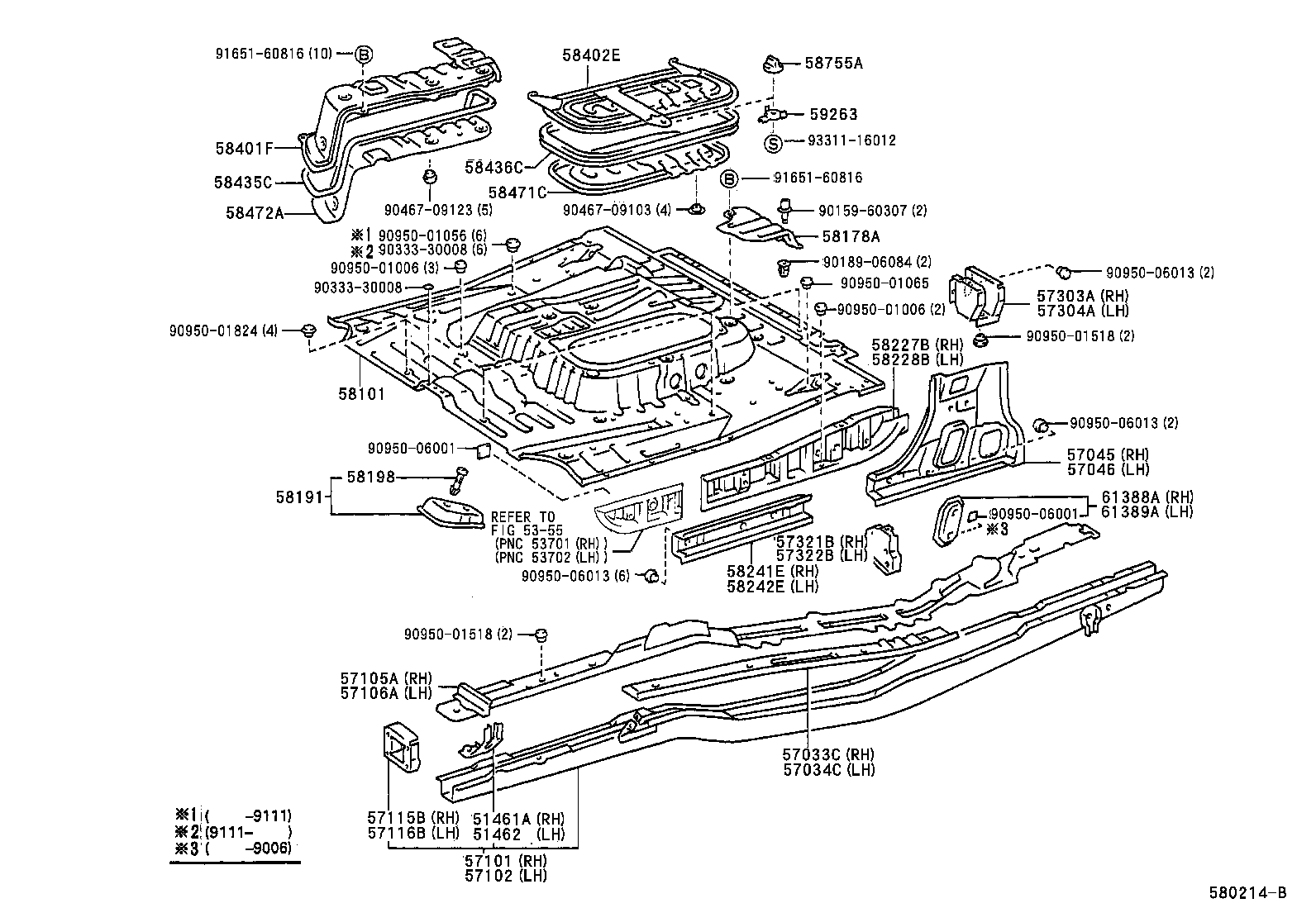

Click highlighted areas on diagram

diagram 51461A 51462 5355 57033C 57034C 57045 57046 57101 57102 57105A 57106A 57115B 57116B 57303A 57304A 57321B 57322B 58101 58178A 58191 58198 58227B 58228B 58241E 58242E 58401F 58402E 58435C 58436C 58471C 58472A 58755A 59263 61388A 61389A 9015960307 9018906084 9033330008 9033330008 9046709103 9046709123 9095001006 9095001006 9095001056 9095001065 9095001518 9095001518 9095001824 9095006001 9095006001 9095006013 9095006013 9095006013 9165160816 9165160816 9331116012
Part # Description Qty Price
51461A - BRACKET, RADIATOR MOUNTING, LOWER RH
51461-95D00

TCR20;TCR10..EFI;TCR10..USA..SPC

 1
51462 - BRACKET, RADIATOR MOUNTING, LOWER LH
51462-95D00

TCR20;TCR10..EFI;TCR10..USA..SPC

 1
57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57033-95D01

TCR10,20

 1
57034C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH
57034-95D01

TCR20;TCR10..EFI;TCR10..USA..SPC

 1
57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH
57045-95D00

TCR10,20

 1
57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH
57046-95D00

TCR10..07S;TCR20..CND;TCR20..07S..USA

 1
57046-95D00

TCR10,20

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-28150

TCR10,20

 1
57101-95D17

TCR10,20

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-95D13

TCR10,20

 1
57102-28120

TCR10,20

 1
57105A - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-95D01

TCR10,20

 1
57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-95D01

TCR10,20

 1
57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH
57115-28040

TCR10,20

 1
57115-95D00

TCR10,20

 1
57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH
57115-95D00

TCR10,20

 1
57115-28040

TCR10,20

 1
57303A - OUTRIGGER SUB-ASSY, NO.2 RH
57303-95D00

TCR10,20

 1
57304A - OUTRIGGER SUB-ASSY, NO.2 LH
57304-95D00

TCR10,20

 1
57321B - OUTRIGGER, NO.5, RH
57321-95D00

TCR10,20

 1
57322B - OUTRIGGER, NO.5, LH
57322-95D00

TCR10,20

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-28350

TCR10,20..ATM

W(COOL & HOT BOX)

 1
58101-28330

TCR10,20..ATM

 1
58101-28570

TCR10,20..ATM

W(COOL & HOT BOX)

 1
58101-28550

TCR10,20..ATM

 1
58101-28570

TCR10..07S..USA

W(COOL & HOT BOX)

 1
58178A - EXTENSION, FRONT FLOOR PANEL, LH
58178-95D01

TCR10,20

 1
58191 - FOOTREST, FRONT FLOOR
58192-95D00

TCR10,20..07S

 1
58198 - CLIP, FOOTREST
58198-95D01

TCR10,20..07S

 2
58227B - PLATE, FRONT FLOOR PANEL SIDE, RH
58227-95D00

TCR10,20

 1
58228B - PLATE, FRONT FLOOR PANEL SIDE, LH
58228-95D02

TCR10,20

 1
58241E - PANEL, FLOOR SIDE, FRONT RH
58241-95D00

TCR10,20

 1
58242E - PANEL, FLOOR SIDE, FRONT LH
58242-95D00

TCR10,20

 1
58401F - COVER SUB-ASSY, ENGINE SERVICE HOLE, RH
58401-95D00

TCR10,20

 1
58402E - COVER SUB-ASSY, ENGINE SERVICE HOLE, LH
58402-95D00

TCR10,20

 1
58435C - PACKING, ENGINE SERVICE HOLE COVER, RH
58435-28030

TCR10,20

 1
58435-95D00

TCR10,20

 1
58436C - PACKING, ENGINE SERVICE HOLE COVER, LH
58436-95D00

TCR10,20

 1
58471C - SILENCER, ENGINE MAIN COVER
58471-95D02

TCR10,20

 1
58472A - SILENCER, ENGINE SUB COVER
58472-95D00

TCR10,20

 1
58755A - HANDLE, ENGINE SERVICE COVER CATCH
58755-95D00

TCR10,20

 1
59263 - HOOK, ENGINE COVER LOCK
59263-95D00

TCR10,20

 1
61388A - PLATE, CENTER BODY PILLAR END, RH
61388-95D00

TCR10,20

 1
61389A - PLATE, CENTER BODY PILLAR END, LH
61389-95D00

TCR10,20

 1
Common parts
90159-60307
90189-06084
90333-30008
90467-09103
90467-09123
90950-01006
90950-01056
90950-01065
90950-01518
90950-01824
90950-06001
90950-06013
91651-60816
93311-16012
Linked diagrams
5355
