TCR10L-RESDVA (1994)

Toyota Previa

Production Jan 1994 - Jul 1997
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9401- )2TZFZE

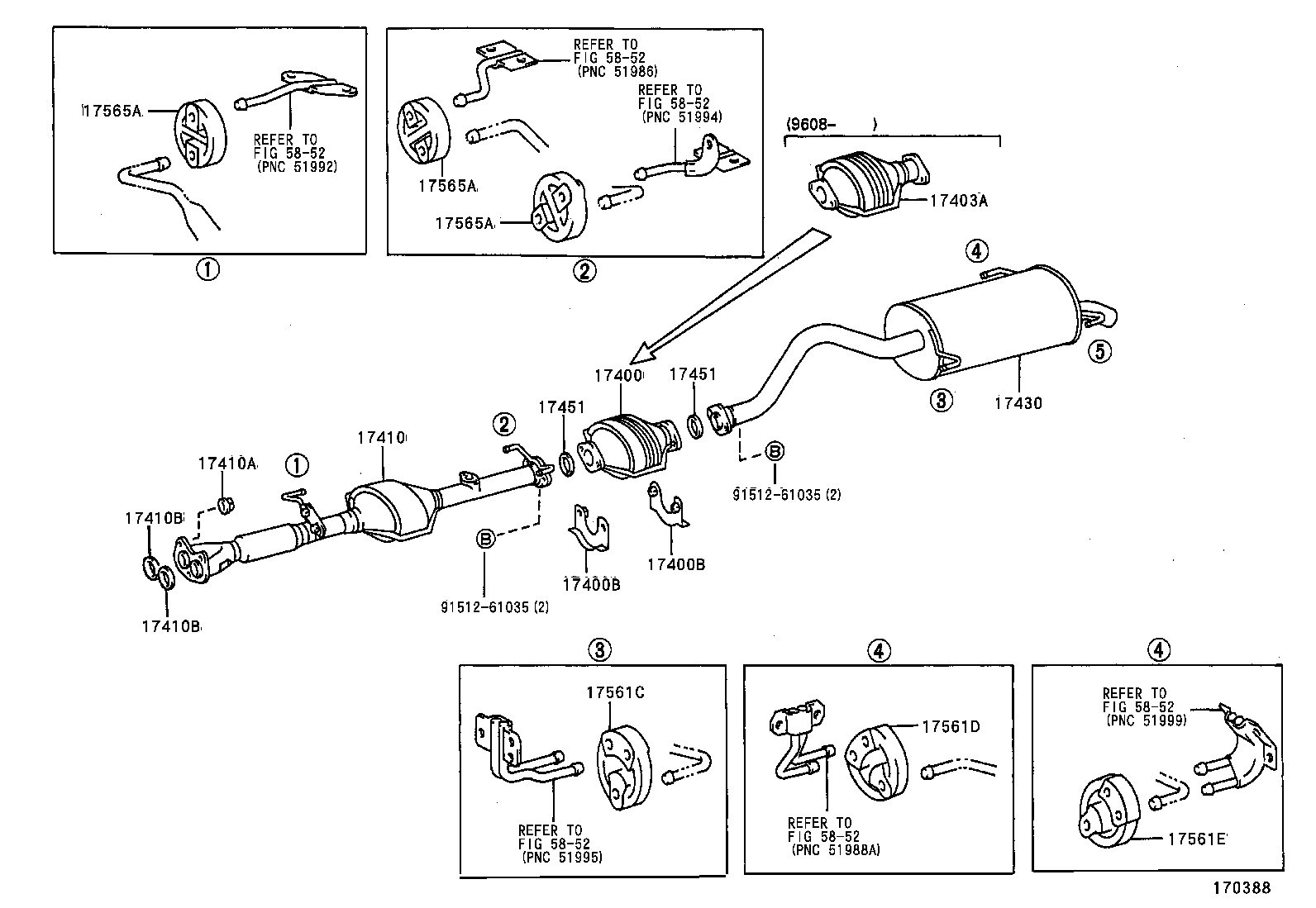

Click highlighted areas on diagram

diagram 17400 17400B 17400B 17403A 17410 17410A 17410B 17410B 17430 17451 17451 17561C 17561D 17561E 17565A 17565A 17565A 5852 5852 5852 5852 5852 5852 9151261035 9151261035
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-76120

2TZFZE..TCR10,20

 1
17400B - RETAINER, EXHAUST PIPE
18495-76010

2TZFZE..TCR10,20

 2
17400B - RETAINER, EXHAUST PIPE
18495-76010

2TZFZE..TCR10,20

 2
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17403-76040

2TZFZE..TCR10,20

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-76131

2TZFZE..TCR10,20

 1
17410-76132

2TZFZE..TCR10,20

 1
17410-76130

2TZFZE..TCR10,20

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2TZ#..TCR10,20

 3
17410B - GASKET, EXHAUST PIPE
90917-06039

2TZ#..TCR10,20

 2
17410B - GASKET, EXHAUST PIPE
90917-06039

2TZ#..TCR10,20

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-76080

2TZFZE..TCR10,20

 1
17430-76101

2TZFZE..TCR10,20

 1
17430-76100

2TZFZE..TCR10,20

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

2TZFZE..TCR10,20

RR

 1
90917-06057

2TZFZE..TCR10,20

RR

 1
90917-06043

2TZFZE..TCR10,20

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

2TZFZE..TCR10,20

RR

 1
90917-06057

2TZFZE..TCR10,20

RR

 1
90917-06043

2TZFZE..TCR10,20

FR

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

2TZ#..TCR10,20

 1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

2TZ#..TCR10,20

 1
17561E - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

2TZ#..TCR10,20

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2TZFZE..TCR10,20

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2TZFZE..TCR10,20

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2TZFZE..TCR10,20

 3
Common parts
91512-61035
Linked diagrams
5852
