TCR10L-RESDKK (1990)
Toyota Previa

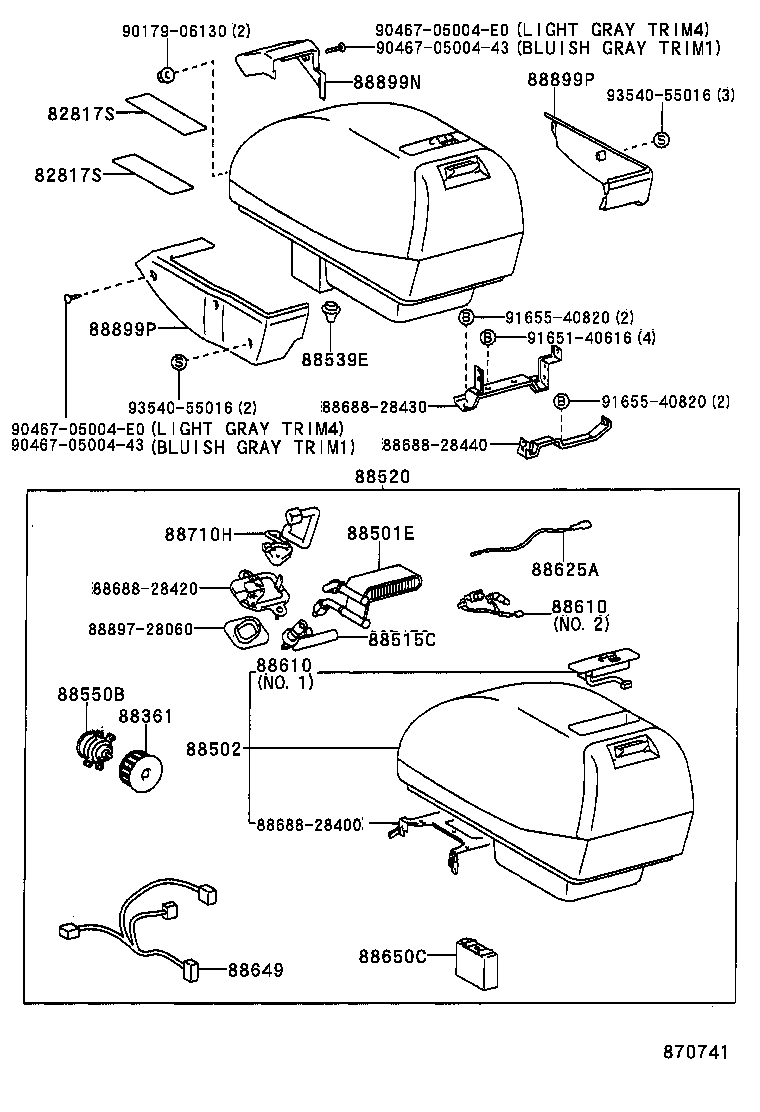

ILLUST NO. 4 OF 5(9108-9308)
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-87013 |
TCR10,20 |
1 | ||
| 82817-12400 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20..ATM |
2 | ||
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-87013 |
TCR10,20 |
1 | ||
| 82817-12400 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20..ATM |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR10,20 |
1 | ||
| 87105-87004 |
TCR10,20..ATM |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-28030 |
TCR10,20..ATM |
1 | ||
| 88501-95D04 |
TCR10,20 |
1 | ||
| 88501-28180 |
TCR10,20 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28210B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88502-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88502-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88502-28210J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8# |
1 | ||
| 88502-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88502-28210E0 |
TCR10,20..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60010 |
TCR10,20..ATM |
1 | ||
| 88515-95700 |
TCR10,20 |
1 | ||
| 88515-60020 |
TCR10,20 |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88520-28050J0 |
TCR10,20..ATM BLUE,TRIM8# |
1 | ||
| 88520-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28050E1 |
TCR10,20..ATM GRAIGE,TRIM4# |
1 | ||
| 88520-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050B0 |
TCR10,20..ATM GRAY,TRIM1# |
1 | ||
| 88520-2803003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140E0 |
TCR10,20 LIGHT GREIGE,TRIM4# |
1 | ||
| 88520-2803006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88520-2803004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28140J0 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28140B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR10,20..ATM |
1 | ||
| 88539-95708 |
TCR10,20 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR10,20 |
1 | ||
| 88550-28040 |
TCR10,20..ATM |
1 | ||
| 88550-87003 |
TCR10,20 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR10,20 NO.1 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95713 |
TCR10,20..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR10,20..ATM NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR10,20 NO.1 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95713 |
TCR10,20..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR10,20..ATM NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-95700 |
TCR10,20 |
1 | ||
| 88625-28050 |
TCR10,20..ATM |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-28240 |
TCR10,20 |
1 | ||
| 88605-28330 |
TCR10,20..ATM |
1 | ||
| 88605-28330 |
TCR10,20 NO.1 |
1 | ||
| 88605-2J440 |
TCR10,20 NO.2 |
1 | ||
| 88605-95D23 |
TCR10,20 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28120 |
TCR10,20 |
1 | ||
| 88650-95705 |
TCR10,20 |
1 | ||
| 88650-28120 |
TCR10,20..ATM |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-28320 |
TCR10,20..ATM |
1 | ||
| 88710-28150 |
TCR10,20 |
1 | ||
| 88710-28890 |
TCR10,20 |
1 | ||
| 88710-95D07 |
TCR10,20 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8# |
1 | ||
| 88899-28240B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240E2 |
TCR10,20..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88899-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D0206 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88899-28200B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28210B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,LH |
1 | ||
| 88899-95D0204 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88899-28210E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,RH |
1 | ||
| 88899-28210J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,RH |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D0206 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88899-28200B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28210B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,LH |
1 | ||
| 88899-95D0204 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88899-28210E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,RH |
1 | ||
| 88899-28210J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,RH |
1 | ||
| Common parts | ||||
| 88688-28400 | ||||
| 88688-28420 | ||||
| 88688-28430 | ||||
| 88688-28440 | ||||
| 88897-28060 | ||||
| 90179-06130 | ||||
| 90467-0500443 | ||||
| 90467-05004E0 | ||||
| 91651-40616 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||

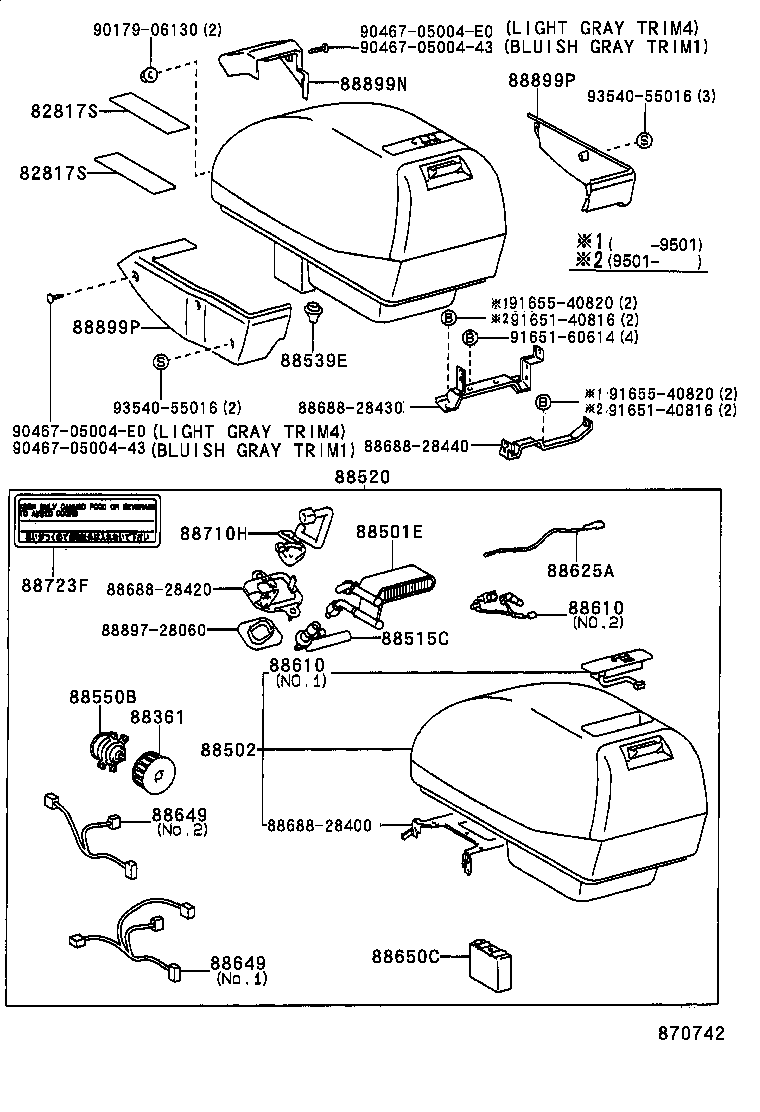

ILLUST NO. 4 OF 5(9308- )
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-87013 |
TCR10,20 |
1 | ||
| 82817-12400 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20..ATM |
2 | ||
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-87013 |
TCR10,20 |
1 | ||
| 82817-12400 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20..ATM |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR10,20 |
1 | ||
| 87105-87004 |
TCR10,20..ATM |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-28030 |
TCR10,20..ATM |
1 | ||
| 88501-95D04 |
TCR10,20 |
1 | ||
| 88501-28180 |
TCR10,20 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28210B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88502-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88502-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88502-28210J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8# |
1 | ||
| 88502-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88502-28210E0 |
TCR10,20..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60010 |
TCR10,20..ATM |
1 | ||
| 88515-95700 |
TCR10,20 |
1 | ||
| 88515-60020 |
TCR10,20 |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88520-28050J0 |
TCR10,20..ATM BLUE,TRIM8# |
1 | ||
| 88520-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28050E1 |
TCR10,20..ATM GRAIGE,TRIM4# |
1 | ||
| 88520-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050B0 |
TCR10,20..ATM GRAY,TRIM1# |
1 | ||
| 88520-2803003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140E0 |
TCR10,20 LIGHT GREIGE,TRIM4# |
1 | ||
| 88520-2803006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88520-2803004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28140J0 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28140B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR10,20..ATM |
1 | ||
| 88539-95708 |
TCR10,20 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR10,20 |
1 | ||
| 88550-28040 |
TCR10,20..ATM |
1 | ||
| 88550-87003 |
TCR10,20 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR10,20 NO.1 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95713 |
TCR10,20..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR10,20..ATM NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR10,20 NO.1 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95713 |
TCR10,20..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR10,20..ATM NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-95700 |
TCR10,20 |
1 | ||
| 88625-28050 |
TCR10,20..ATM |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-28240 |
TCR10,20 |
1 | ||
| 88605-28330 |
TCR10,20..ATM |
1 | ||
| 88605-28330 |
TCR10,20 NO.1 |
1 | ||
| 88605-2J440 |
TCR10,20 NO.2 |
1 | ||
| 88605-95D23 |
TCR10,20 |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-28240 |
TCR10,20 |
1 | ||
| 88605-28330 |
TCR10,20..ATM |
1 | ||
| 88605-28330 |
TCR10,20 NO.1 |
1 | ||
| 88605-2J440 |
TCR10,20 NO.2 |
1 | ||
| 88605-95D23 |
TCR10,20 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28120 |
TCR10,20 |
1 | ||
| 88650-95705 |
TCR10,20 |
1 | ||
| 88650-28120 |
TCR10,20..ATM |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-28320 |
TCR10,20..ATM |
1 | ||
| 88710-28150 |
TCR10,20 |
1 | ||
| 88710-28890 |
TCR10,20 |
1 | ||
| 88710-95D07 |
TCR10,20 |
1 | ||
| 88723F - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28150 |
TCR10,20 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8# |
1 | ||
| 88899-28240B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240E2 |
TCR10,20..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88899-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D0206 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88899-28200B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28210B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,LH |
1 | ||
| 88899-95D0204 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88899-28210E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,RH |
1 | ||
| 88899-28210J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,RH |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D0206 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88899-28200B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28210B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,LH |
1 | ||
| 88899-95D0204 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88899-28210E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,RH |
1 | ||
| 88899-28210J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,RH |
1 | ||
| Common parts | ||||
| 88688-28400 | ||||
| 88688-28420 | ||||
| 88688-28430 | ||||
| 88688-28440 | ||||
| 88897-28060 | ||||
| 90179-06130 | ||||
| 90467-0500443 | ||||
| 90467-05004E0 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||

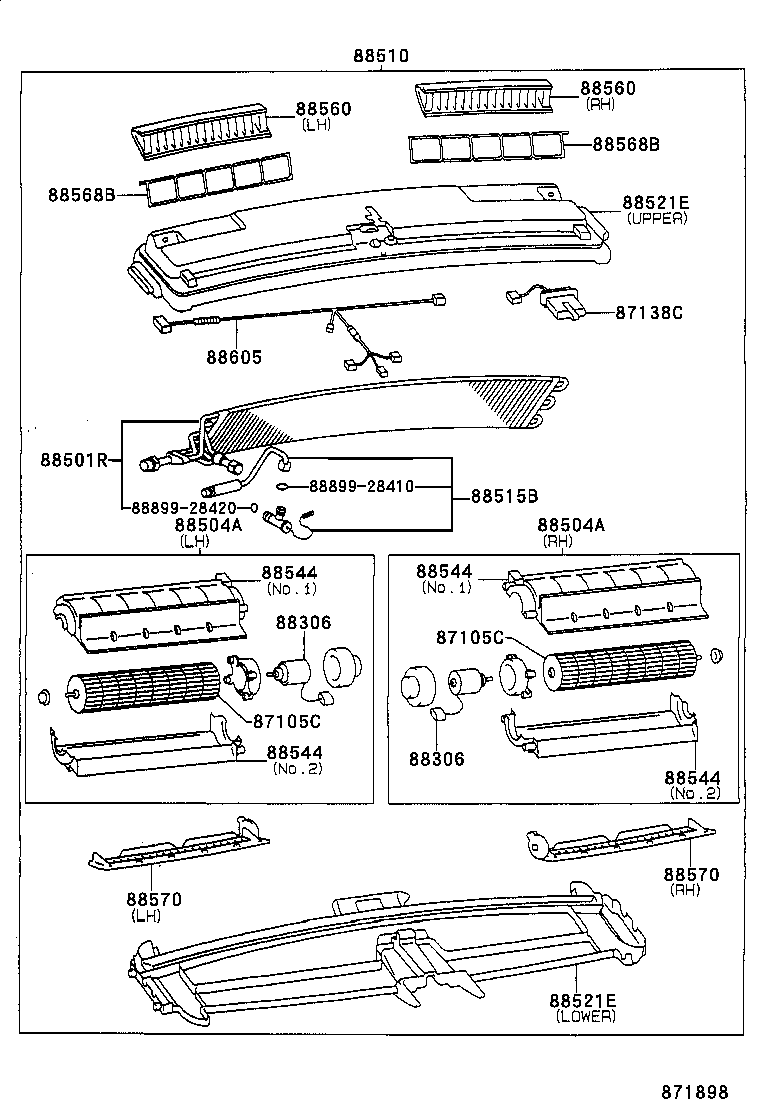

ILLUST NO. 2 OF 5(9001- )
REAR, DENSO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 87105-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 87105-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 87105-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 87105-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 87105-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 87105-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 87105-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 87105-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 87105-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 87105-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 87105-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 87105-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 87105-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 87105-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-95D01 |
TCR10,20 MATSUSHITA |
1 | ||
| 87138-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
1 | ||
| 87138-95D02 |
TCR10,20 NIPPONDENSO |
1 | ||
| 87138-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENSO |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28050 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 87104-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 87104-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 87104-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 87104-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 87104-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88550-28060 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 87104-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28050 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 87104-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 87104-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 87104-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 87104-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 87104-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88550-28060 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 87104-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-95D00 |
TCR10,20 MATSUSHITA |
1 | ||
| 88501-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA MATUSITA |
1 | ||
| 88501-28080 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
1 | ||
| 88501-95D01 |
TCR10,20 NIPPONDENSO |
1 | ||
| 88501-95D00 |
TCR10,20..CND |
1 | ||
| 88501-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENNSO |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D01 |
TCR10,20 LH |
1 | ||
| 88504-28040 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88504-28030 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88504-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88504-95D02 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88504-95D03 |
TCR10,20 RH |
1 | ||
| 88504-95D00 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88504-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D01 |
TCR10,20 LH |
1 | ||
| 88504-28040 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88504-28030 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88504-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88504-95D02 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88504-95D03 |
TCR10,20 RH |
1 | ||
| 88504-95D00 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88504-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28220E0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,MATSUSHITA |
1 | ||
| 88510-95D0306 |
TCR10,20 LIGHT TAN,TRIM4#,MATSUSHITA |
1 | ||
| 88510-2817003 |
TCR10,20 LIGHT GRAY,TRIM1#,NIPPONDENSO |
1 | ||
| 88510-95D0304 |
TCR10,20 LIGHT BLUE,TRIM8#,MATSUSHITA |
1 | ||
| 88510-28390J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,MATSUSHITA |
1 | ||
| 88510-28390E0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,MATSUSHITA |
1 | ||
| 88510-28220J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,MATSUSHITA |
1 | ||
| 88510-28390B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,MATSUSHITA |
1 | ||
| 88510-28450J0 |
TCR10,20 LIGHT BLUE,TRIM8#,MATSUSHITA |
1 | ||
| 88510-28220B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,MATSUSHITA |
1 | ||
| 88510-28240B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,NIPPONDENSO |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 82630-28010 |
TCR10;TCR20..07S;TCR20..05S..USA |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28060 |
TCR10,20 MATSUSHITA |
1 | ||
| 88515-95D01 |
TCR10,20 NIPPONDENSO |
1 | ||
| 88515-28020 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENSO |
1 | ||
| 88515-28040 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENSO |
1 | ||
| 88515-28060 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-95D0106 |
TCR10,20 LIGHT TAN,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88521-95D0006 |
TCR10,20 LIGHT TAN,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88502-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28120B0 |
TCR10,20 LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88521-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88502-95D0104 |
TCR10,20 LIGHT BLUE,TRIM8#,LOWER,MATSUSHITA |
1 | ||
| 88521-28030J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88521-28030E0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88521-28030J0 |
TCR10,20 LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88502-28300E0 |
TCR10..CND;TCR20..07S..CND..EFI;TCR10,20..05S..USA..EFI DUAL TYPE,LIGHT GRAY,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88502-28200E0 |
TCR10..CND;TCR20..07S..CND;TCR10,20..05S..USA DUAL TYPE,LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-28180B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28200J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8# |
1 | ||
| 88502-28300J0 |
TCR10..EFI;TCR20..07S..EFI;TCR20..05S..USA..EFI DUAL TYPE,LIGHT BLUE,TRIM8#,LOWER,MATSUSHITA |
1 | ||
| 88521-28010B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,UPPER,NIPPONDENSO |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-95D0106 |
TCR10,20 LIGHT TAN,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88521-95D0006 |
TCR10,20 LIGHT TAN,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88502-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28120B0 |
TCR10,20 LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88521-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88502-95D0104 |
TCR10,20 LIGHT BLUE,TRIM8#,LOWER,MATSUSHITA |
1 | ||
| 88521-28030J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88521-28030E0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88521-28030J0 |
TCR10,20 LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88502-28300E0 |
TCR10..CND;TCR20..07S..CND..EFI;TCR10,20..05S..USA..EFI DUAL TYPE,LIGHT GRAY,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88502-28200E0 |
TCR10..CND;TCR20..07S..CND;TCR10,20..05S..USA DUAL TYPE,LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-28180B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28200J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8# |
1 | ||
| 88502-28300J0 |
TCR10..EFI;TCR20..07S..EFI;TCR20..05S..USA..EFI DUAL TYPE,LIGHT BLUE,TRIM8#,LOWER,MATSUSHITA |
1 | ||
| 88521-28010B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,UPPER,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10,20 LH |
1 | ||
| 88544-95D05 |
TCR10,20 RH |
1 | ||
| 88544-95D01 |
TCR10,20 LH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D00 |
TCR10,20 LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D02 |
TCR10,20 RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88544-95D03 |
TCR10,20 RH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88544-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NO.1,MATSUSHITA |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10,20 LH |
1 | ||
| 88544-95D05 |
TCR10,20 RH |
1 | ||
| 88544-95D01 |
TCR10,20 LH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D00 |
TCR10,20 LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D02 |
TCR10,20 RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88544-95D03 |
TCR10,20 RH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88544-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NO.1,MATSUSHITA |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88560-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88560-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88560-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88560-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88560-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88560-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88560-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88560-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88560-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88560-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-95D00 |
TCR10,20 MATSUSHITA |
2 | ||
| 88568-95D01 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88568-95D02 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88568-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
2 | ||
| 88568-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 88568-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-95D00 |
TCR10,20 MATSUSHITA |
2 | ||
| 88568-95D01 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88568-95D02 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88568-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
2 | ||
| 88568-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 88568-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88570-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88570-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88570-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88570-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88570-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88570-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88570-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88570-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88570-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88570-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88570-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88570-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-95D01 |
TCR10,20 NIPPONDENSO |
1 | ||
| 88601-95D00 |
TCR10,20 MATSUSHITA |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28370 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENSO |
1 | ||
| 88605-28370 |
TCR10;TCR20..07S;TCR20..05S..USA W(DUAL AIR CONDITIONER),DENSO |
1 | ||
| 88605-95D21 |
TCR10,20 NIPPONDENSO |
1 | ||
| 88605-28370 |
TCR10..CND;TCR20..07S..CND;TCR10,20..05S..USA W(DUAL AIR CONDITIONER),DENSO |
1 | ||
| 88605-95D06 |
TCR10,20 MATSUSHITA |
1 | ||
| 88605-2J220 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
1 | ||
| 88605-28190 |
TCR10,20 |
1 | ||
| 88605-2J260 |
TCR10,20..CND |
1 | ||
| 88605-28190 |
TCR10..CND;TCR20..07S..CND;TCR10,20..05S..USA |
1 | ||
| 88605-2J260 |
TCR10..05S..CND |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28070 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 88688-28210 | ||||
| 90094-90414 | ||||
| 90099-00930 | ||||
| 90099-01340 | ||||
| 90099-04381 | ||||
| 93540-14012 | ||||
ILLUST NO. 5 OF 5(9001- )
W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
ILLUST NO. 5 OF 5(9001- )
W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||

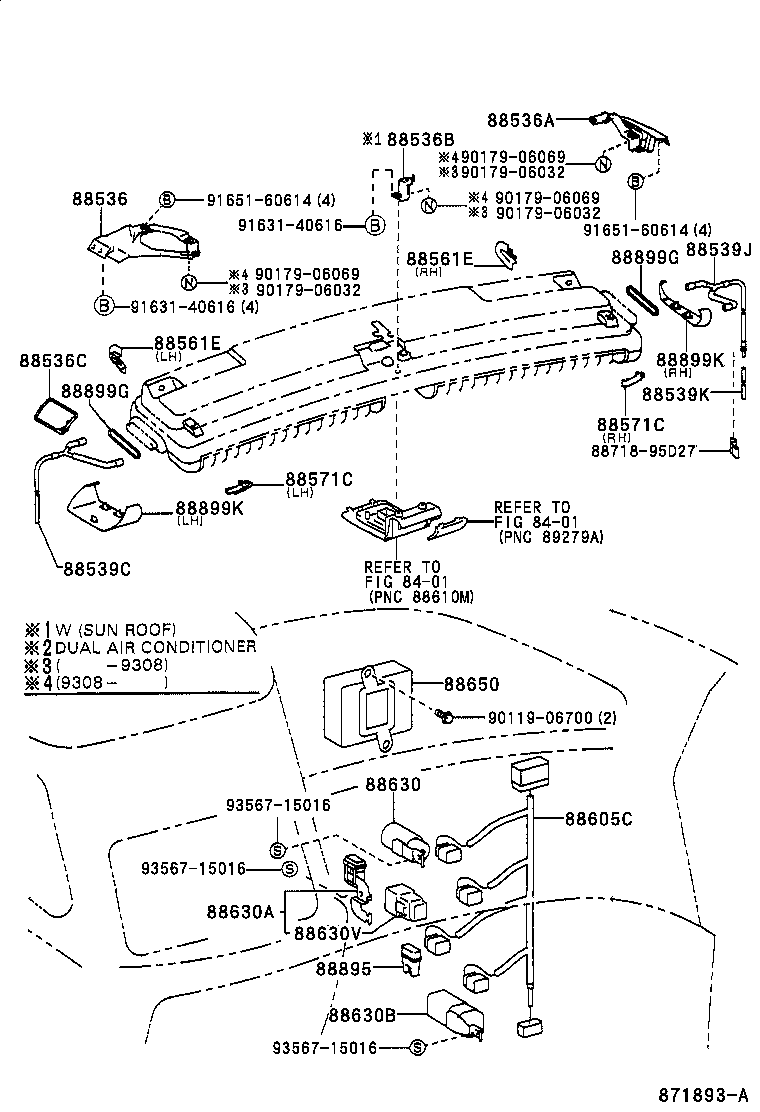

ILLUST NO. 3 OF 5(9001- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95D32 |
TCR20;TCR10..05S |
1 | ||
| 88688-95D32 |
TCR10..05S;TCR20..07S;TCR10..07S..USA;TCR20..05S..USA |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88688-95D34 |
TCR20;TCR10..05S |
1 | ||
| 88688-95D34 |
TCR10..05S;TCR20..07S;TCR10..07S..USA;TCR20..05S..USA |
1 | ||
| 88536C - BRACKET, COOLING UNIT, NO.4 | ||||
| 88688-95D42 |
TCR10;TCR20..07S;TCR20..05S..USA |
1 | ||
| 88688-95D42 |
TCR10,20 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95D00 |
TCR10,20 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-95D01 |
TCR10,20 |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95D02 |
TCR10,20 |
1 | ||
| 88561E - GRILLE, AIR INLET | ||||
| 88561-95D02 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88561-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88561-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 88561-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88561-95D01 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88561-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88561-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88561-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA RH.NIPPONDENSO |
1 | ||
| 88561E - GRILLE, AIR INLET | ||||
| 88561-95D02 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88561-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88561-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 88561-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88561-95D01 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88561-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88561-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88561-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA RH.NIPPONDENSO |
1 | ||
| 88571C - GRILLE, COOLER AIR OUTLET | ||||
| 88571-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88571-95D01 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88571-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSSHITA |
1 | ||
| 88571-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88571-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88571-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 88571-95D02 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88571C - GRILLE, COOLER AIR OUTLET | ||||
| 88571-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 88571-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88571-95D01 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88571-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSSHITA |
1 | ||
| 88571-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88571-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88571-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 88571-95D02 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95D28 |
TCR10,20 SINGLE |
1 | ||
| 88605-2J230 |
TCR10,20..CND SINGLE---DEALER OPT |
1 | ||
| 88605-2J230 |
TCR10..05S..CND SINGLE---DEALER OPT |
1 | ||
| 88605-95D28 |
TCR10,20..CND SINGLE |
1 | ||
| 88605-95D29 |
TCR10,20..CND;TCR10,20..05S..USA DUAL |
1 | ||
| 88605-95D29 |
TCR10,20 DUAL |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-28050 |
TCR10..05S..CND SINGLE AIR CONDITIONER |
1 | ||
| 88630-95D01 |
TCR10,20..CND DUAL AIR CONDITIONER |
1 | ||
| 88630-28050 |
TCR10,20..CND SINGLE AIR CONDITIONER |
1 | ||
| 88630-95D01 |
TCR10,20 |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95D03 |
TCR10,20 SINGLE AIR CONDITIONER |
1 | ||
| 88630-28070 |
TCR10,20..CND DUAL AIR CONDITIONER |
1 | ||
| 88630-95D03 |
TCR10..05S..CND SINGLE AIR CONDITIONER |
1 | ||
| 88630-95D06 |
TCR10,20 DUAL AIR CONDITIONER |
1 | ||
| 88630-95D03 |
TCR10,20..CND;TCR10,20..05S..USA SINGLE AIR CONDITIONER |
1 | ||
| 88630-28070 |
TCR10,20 DUAL AIR CONDITIONER |
1 | ||
| 88630-28070 |
TCR10,20..CND;TCR10,20..05S..USA DUAL AIR CONDITIONER |
1 | ||
| 88630-95D03 |
TCR10,20..CND SINGLE AIR CONDITIONER |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-95D02 |
TCR10,20 |
1 | ||
| 88630V - RELAY ASSY | ||||
| 88630-95D03 |
TCR10,20..CND |
1 | ||
| 88630-14030 |
TCR10..05S..CND |
1 | ||
| 88630-14030 |
TCR10,20..CND |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28100 |
TCR10,20 |
1 | ||
| 88650-95D01 |
TCR10,20 |
1 | ||
| 88650-28260 |
TCR10..05S..CND DUAL AIR CONDITIONER |
1 | ||
| 88650-28260 |
TCR10,20..CND DUAL AIR CONDITIONER |
1 | ||
| 88650-28290 |
TCR10..05S..CND SINGLE AIR CONDITIONER |
1 | ||
| 88650-28290 |
TCR10,20..CND SINGLE AIR CONDITIONER |
1 | ||
| 88895 - HOLDER, FUSE | ||||
| 88895-95J00 |
TCR10,20 |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-28110 |
TCR10,20 |
2 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-28110 |
TCR10,20 |
2 | ||
| 88899K - PLATE, COVER | ||||
| 88899-95D0403 |
TCR10,20 LIGHT GRAY,TRIM1#,NIPPONDENSO,LH |
1 | ||
| 88899-2813004 |
TCR10,20 LIGHT BLUE,TRIM8#,MATSUSHITA,LH |
1 | ||
| 88899-95D0504 |
TCR10,20 LIGHT BLUE,TRIM8#,RH |
1 | ||
| 88899-95D0404 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0403 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0404 |
TCR10,20 LIGHT BLUE,TRIM8#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0406 |
TCR10,20 LIGHT TAN,TRIM4#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0503 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0503 |
TCR10,20 LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0504 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,RH |
1 | ||
| 88899-95D0506 |
TCR10,20 LIGHT TAN,TRIM4#,RH |
1 | ||
| 88899-2813006 |
TCR10,20 LIGHT TAN,TRIM4#,MATSUSHITA,LH |
1 | ||
| 88899-95D05L1 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,RH |
1 | ||
| 88899-95D0404 |
TCR10,20 LIGHT BLUE,TRIM8#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0504 |
TCR10,20 LIGHT BLUE,TRIM8#,RH |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-95D0403 |
TCR10,20 LIGHT GRAY,TRIM1#,NIPPONDENSO,LH |
1 | ||
| 88899-2813004 |
TCR10,20 LIGHT BLUE,TRIM8#,MATSUSHITA,LH |
1 | ||
| 88899-95D0504 |
TCR10,20 LIGHT BLUE,TRIM8#,RH |
1 | ||
| 88899-95D0404 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0403 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0404 |
TCR10,20 LIGHT BLUE,TRIM8#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0406 |
TCR10,20 LIGHT TAN,TRIM4#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0503 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0503 |
TCR10,20 LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-95D0504 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,RH |
1 | ||
| 88899-95D0506 |
TCR10,20 LIGHT TAN,TRIM4#,RH |
1 | ||
| 88899-2813006 |
TCR10,20 LIGHT TAN,TRIM4#,MATSUSHITA,LH |
1 | ||
| 88899-95D05L1 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,RH |
1 | ||
| 88899-95D0404 |
TCR10,20 LIGHT BLUE,TRIM8#,NIPPONDENSO,LH |
1 | ||
| 88899-95D0504 |
TCR10,20 LIGHT BLUE,TRIM8#,RH |
1 | ||
| Common parts | ||||
| 88718-95D27 | ||||
| 90119-06700 | ||||
| 90179-06032 | ||||
| 90179-06069 | ||||
| 91631-40616 | ||||
| 91651-60614 | ||||
| 93567-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

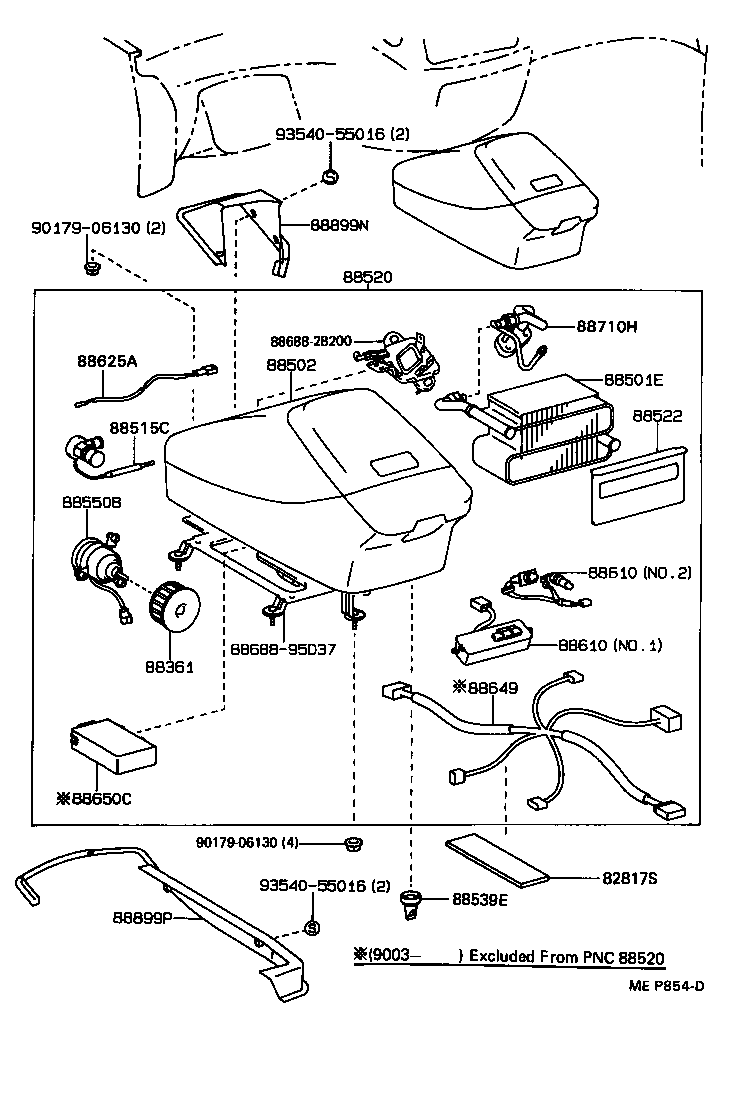

ILLUST NO. 2 OF 5(9001- )
REAR, MATSUSHITA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 87105-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 87105-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 87105-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 87105-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 87105-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 87105-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 87105-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 87105-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 87105-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 87105-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 87105-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 87105-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 87105-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 87105-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-95D01 |
TCR10,20 MATSUSHITA |
1 | ||
| 87138-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
1 | ||
| 87138-95D02 |
TCR10,20 NIPPONDENSO |
1 | ||
| 87138-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENSO |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28050 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 87104-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 87104-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 87104-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 87104-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 87104-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88550-28060 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 87104-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-28050 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 87104-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 87104-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 87104-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 87104-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 87104-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88550-28060 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 87104-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-95D00 |
TCR10,20 MATSUSHITA |
1 | ||
| 88501-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA MATUSITA |
1 | ||
| 88501-28080 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
1 | ||
| 88501-95D01 |
TCR10,20 NIPPONDENSO |
1 | ||
| 88501-95D00 |
TCR10,20..CND |
1 | ||
| 88501-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENNSO |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D01 |
TCR10,20 LH |
1 | ||
| 88504-28040 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88504-28030 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88504-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88504-95D02 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88504-95D03 |
TCR10,20 RH |
1 | ||
| 88504-95D00 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88504-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D01 |
TCR10,20 LH |
1 | ||
| 88504-28040 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88504-28030 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88504-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88504-95D02 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88504-95D03 |
TCR10,20 RH |
1 | ||
| 88504-95D00 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88504-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28220E0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,MATSUSHITA |
1 | ||
| 88510-95D0306 |
TCR10,20 LIGHT TAN,TRIM4#,MATSUSHITA |
1 | ||
| 88510-2817003 |
TCR10,20 LIGHT GRAY,TRIM1#,NIPPONDENSO |
1 | ||
| 88510-95D0304 |
TCR10,20 LIGHT BLUE,TRIM8#,MATSUSHITA |
1 | ||
| 88510-28390J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,MATSUSHITA |
1 | ||
| 88510-28390E0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,MATSUSHITA |
1 | ||
| 88510-28220J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,MATSUSHITA |
1 | ||
| 88510-28390B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,MATSUSHITA |
1 | ||
| 88510-28450J0 |
TCR10,20 LIGHT BLUE,TRIM8#,MATSUSHITA |
1 | ||
| 88510-28220B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,MATSUSHITA |
1 | ||
| 88510-28240B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,NIPPONDENSO |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28060 |
TCR10,20 MATSUSHITA |
1 | ||
| 88515-95D01 |
TCR10,20 NIPPONDENSO |
1 | ||
| 88515-28020 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENSO |
1 | ||
| 88515-28040 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENSO |
1 | ||
| 88515-28060 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-95D0106 |
TCR10,20 LIGHT TAN,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88521-95D0006 |
TCR10,20 LIGHT TAN,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88502-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28120B0 |
TCR10,20 LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88521-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88502-95D0104 |
TCR10,20 LIGHT BLUE,TRIM8#,LOWER,MATSUSHITA |
1 | ||
| 88521-28030J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88521-28030E0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88521-28030J0 |
TCR10,20 LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88502-28300E0 |
TCR10..CND;TCR20..07S..CND..EFI;TCR10,20..05S..USA..EFI DUAL TYPE,LIGHT GRAY,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88502-28200E0 |
TCR10..CND;TCR20..07S..CND;TCR10,20..05S..USA DUAL TYPE,LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-28180B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28200J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8# |
1 | ||
| 88502-28300J0 |
TCR10..EFI;TCR20..07S..EFI;TCR20..05S..USA..EFI DUAL TYPE,LIGHT BLUE,TRIM8#,LOWER,MATSUSHITA |
1 | ||
| 88521-28010B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,UPPER,NIPPONDENSO |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-95D0106 |
TCR10,20 LIGHT TAN,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88521-95D0006 |
TCR10,20 LIGHT TAN,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88502-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28120B0 |
TCR10,20 LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88521-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88502-95D0104 |
TCR10,20 LIGHT BLUE,TRIM8#,LOWER,MATSUSHITA |
1 | ||
| 88521-28030J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88521-28030E0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAIGE,TRIM4#,UPPER,MATSUSHITA |
1 | ||
| 88521-28030J0 |
TCR10,20 LIGHT BLUE,TRIM8#,UPPER,MATSUSHITA |
1 | ||
| 88502-28300E0 |
TCR10..CND;TCR20..07S..CND..EFI;TCR10,20..05S..USA..EFI DUAL TYPE,LIGHT GRAY,TRIM4#,LOWER,MATSUSHITA |
1 | ||
| 88502-28200E0 |
TCR10..CND;TCR20..07S..CND;TCR10,20..05S..USA DUAL TYPE,LIGHT GRAIGE,TRIM4# |
1 | ||
| 88502-28180B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,LOWER,NIPPONDENSO |
1 | ||
| 88502-28200J0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT BLUE,TRIM8# |
1 | ||
| 88502-28300J0 |
TCR10..EFI;TCR20..07S..EFI;TCR20..05S..USA..EFI DUAL TYPE,LIGHT BLUE,TRIM8#,LOWER,MATSUSHITA |
1 | ||
| 88521-28010B0 |
TCR10;TCR20..07S;TCR20..05S..USA LIGHT GRAY,TRIM1#,UPPER,NIPPONDENSO |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10,20 LH |
1 | ||
| 88544-95D05 |
TCR10,20 RH |
1 | ||
| 88544-95D01 |
TCR10,20 LH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D00 |
TCR10,20 LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D02 |
TCR10,20 RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88544-95D03 |
TCR10,20 RH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88544-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NO.1,MATSUSHITA |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10,20 LH |
1 | ||
| 88544-95D05 |
TCR10,20 RH |
1 | ||
| 88544-95D01 |
TCR10,20 LH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D00 |
TCR10,20 LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D02 |
TCR10,20 RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88544-95D03 |
TCR10,20 RH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88544-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NO.1,MATSUSHITA |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10,20 LH |
1 | ||
| 88544-95D05 |
TCR10,20 RH |
1 | ||
| 88544-95D01 |
TCR10,20 LH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D00 |
TCR10,20 LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D02 |
TCR10,20 RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88544-95D03 |
TCR10,20 RH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88544-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NO.1,MATSUSHITA |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR10,20 LH |
1 | ||
| 88544-95D05 |
TCR10,20 RH |
1 | ||
| 88544-95D01 |
TCR10,20 LH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D00 |
TCR10,20 LH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D02 |
TCR10,20 RH,NO.1,MATSUSHITA |
1 | ||
| 88544-95D05 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88544-95D03 |
TCR10,20 RH,NO.2,MATSUSHITA |
1 | ||
| 88544-95D04 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88544-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NO.1,MATSUSHITA |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88560-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88560-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88560-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88560-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88560-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88560-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88560-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88560-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88560-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88560-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-95D00 |
TCR10,20 MATSUSHITA |
2 | ||
| 88568-95D01 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88568-95D02 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88568-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
2 | ||
| 88568-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 88568-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-95D00 |
TCR10,20 MATSUSHITA |
2 | ||
| 88568-95D01 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88568-95D02 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88568-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
2 | ||
| 88568-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA LH,NIPPONDENSO |
1 | ||
| 88568-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA RH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88570-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88570-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88570-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88570-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88570-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88570-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D01 |
TCR10,20 LH,MATSUSHITA |
1 | ||
| 88570-95D00 |
TCR10;TCR20..07S;TCR20..05S..USA RH,MATSUSHITA |
1 | ||
| 88570-95D00 |
TCR10,20 RH,MATSUSHITA |
1 | ||
| 88570-95D02 |
TCR10;TCR20..07S;TCR20..05S..USA RH |
1 | ||
| 88570-95D01 |
TCR10;TCR20..07S;TCR20..05S..USA LH,MATSUSHITA |
1 | ||
| 88570-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88570-95D03 |
TCR10;TCR20..07S;TCR20..05S..USA LH |
1 | ||
| 88570-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-28370 |
TCR10;TCR20..07S;TCR20..05S..USA NIPPONDENSO |
1 | ||
| 88605-28370 |
TCR10;TCR20..07S;TCR20..05S..USA W(DUAL AIR CONDITIONER),DENSO |
1 | ||
| 88605-95D21 |
TCR10,20 NIPPONDENSO |
1 | ||
| 88605-28370 |
TCR10..CND;TCR20..07S..CND;TCR10,20..05S..USA W(DUAL AIR CONDITIONER),DENSO |
1 | ||
| 88605-95D06 |
TCR10,20 MATSUSHITA |
1 | ||
| 88605-2J220 |
TCR10;TCR20..07S;TCR20..05S..USA MATSUSHITA |
1 | ||
| 88605-28190 |
TCR10,20 |
1 | ||
| 88605-2J260 |
TCR10,20..CND |
1 | ||
| 88605-28190 |
TCR10..CND;TCR20..07S..CND;TCR10,20..05S..USA |
1 | ||
| 88605-2J260 |
TCR10..05S..CND |
1 | ||
| Common parts | ||||
| 88899-28410 | ||||
| 88899-28420 | ||||
ILLUST NO. 1 OF 5(9001- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-28070 |
TCR10,20 |
1 | ||
| 87050-95D00 |
TCR10,20..ATM;TCR10..MTM..CND |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95D02 |
TCR10,20..ATM;TCR10..MTM..CND |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D04 |
TCR10,20 NO.1 |
1 | ||
| 87114-95D00 |
TCR10,20 NO.2 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-95D04 |
TCR10,20 NO.1 |
1 | ||
| 87114-95D00 |
TCR10,20 NO.2 |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-95D01 |
TCR10,20 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95D03 |
TCR10,20 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14062 |
TCR10,20..ATM;TCR10,20..MTM..CND |
1 | ||
| 88515-33010 |
TCR10,20 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95D04 |
TCR10,20 |
1 | ||
| 88539-95D04 |
TCR10..05S..CND DEALER OPTION |
1 | ||
| 88539-95D04 |
TCR10,20..CND DEALER OPTION |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60050 |
TCR10,20 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28720 |
TCR10,20 |
1 | ||
| 88723A - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28100 |
TCR10,20..CND SINGLE |
1 | ||
| 88723-28130 |
TCR10,20..CND;TCR10,20..05S..USA DUAL |
1 | ||
| 88723-28130 |
TCR10,20 DUAL |
1 | ||
| 88723-28100 |
TCR10,20 |
1 | ||
| 88723-28110 |
TCR10,20 DUAL |
1 | ||
| 88723-28170 |
TCR10,20..CND DUAL |
1 | ||
| 88723-28170 |
TCR10,20 DUAL |
1 | ||
| 88723-28180 |
TCR10,20..CND SINGLE---DEALER OPT |
1 | ||
| 88723-28180 |
TCR10..05S..CND SINGLE---DEALER OPT |
1 | ||
| 88723-28100 |
TCR10,20..CND SINGLE |
1 | ||
| Common parts | ||||
| 88718-95D33 | ||||
| 88897-28130 | ||||
| 88897-28140 | ||||
| 90119-08632 | ||||
| 90480-05148 | ||||
| 90480-26014 | ||||
| 91621-40816 | ||||
| 91651-40816 | ||||
| 93567-55016 | ||||
ILLUST NO. 4 OF 5(9001-9108)
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817S - PROTECTOR, WIRING HARNESS | ||||
| 82817-87013 |
TCR10,20 |
1 | ||
| 82817-12400 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20 |
2 | ||
| 82817-87013 |
TCR10,20..ATM |
2 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR10,20 |
1 | ||
| 87105-87004 |
TCR10,20..ATM |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-28030 |
TCR10,20..ATM |
1 | ||
| 88501-95D04 |
TCR10,20 |
1 | ||
| 88501-28180 |
TCR10,20 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28210B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88502-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88502-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88502-28210J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8# |
1 | ||
| 88502-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88502-28210E0 |
TCR10,20..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-60010 |
TCR10,20..ATM |
1 | ||
| 88515-95700 |
TCR10,20 |
1 | ||
| 88515-60020 |
TCR10,20 |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88520-28050J0 |
TCR10,20..ATM BLUE,TRIM8# |
1 | ||
| 88520-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28050E1 |
TCR10,20..ATM GRAIGE,TRIM4# |
1 | ||
| 88520-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050B0 |
TCR10,20..ATM GRAY,TRIM1# |
1 | ||
| 88520-2803003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140E0 |
TCR10,20 LIGHT GREIGE,TRIM4# |
1 | ||
| 88520-2803006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88520-2803004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28140J0 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28140B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88520-28050J0 |
TCR10,20..ATM BLUE,TRIM8# |
1 | ||
| 88520-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28050E1 |
TCR10,20..ATM GRAIGE,TRIM4# |
1 | ||
| 88520-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28050B0 |
TCR10,20..ATM GRAY,TRIM1# |
1 | ||
| 88520-2803003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28140E0 |
TCR10,20 LIGHT GREIGE,TRIM4# |
1 | ||
| 88520-2803006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88520-2803004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28140J0 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88520-28140B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-95D00 |
TCR10,20 |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR10,20..ATM |
1 | ||
| 88539-95708 |
TCR10,20 |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR10,20 |
1 | ||
| 88550-28040 |
TCR10,20..ATM |
1 | ||
| 88550-87003 |
TCR10,20 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR10,20 NO.1 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95713 |
TCR10,20..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR10,20..ATM NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D00 |
TCR10,20 NO.1 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95713 |
TCR10,20..ATM NO.2 |
1 | ||
| 88610-28150 |
TCR10,20..ATM NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-95700 |
TCR10,20 |
1 | ||
| 88625-28050 |
TCR10,20..ATM |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-28240 |
TCR10,20 |
1 | ||
| 88605-28330 |
TCR10,20..ATM |
1 | ||
| 88605-28330 |
TCR10,20 NO.1 |
1 | ||
| 88605-2J440 |
TCR10,20 NO.2 |
1 | ||
| 88605-95D23 |
TCR10,20 |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-28120 |
TCR10,20 |
1 | ||
| 88650-95705 |
TCR10,20 |
1 | ||
| 88650-28120 |
TCR10,20..ATM |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-28320 |
TCR10,20..ATM |
1 | ||
| 88710-28150 |
TCR10,20 |
1 | ||
| 88710-28890 |
TCR10,20 |
1 | ||
| 88710-95D07 |
TCR10,20 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8# |
1 | ||
| 88899-28240B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28240E2 |
TCR10,20..ATM LIGHT GRAIGE,TRIM4# |
1 | ||
| 88899-95D0004 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88899-95D0006 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D0206 |
TCR10,20 LIGHT TAN,TRIM4# |
1 | ||
| 88899-28200B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,LH |
1 | ||
| 88899-28200E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,LH |
1 | ||
| 88899-95D0203 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88899-28210B0 |
TCR10,20..ATM LIGHT GRAY,TRIM1#,RH |
1 | ||
| 88899-28200J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,LH |
1 | ||
| 88899-95D0204 |
TCR10,20 LIGHT BLUE,TRIM8# |
1 | ||
| 88899-28210E2 |
TCR10,20..ATM LIGHT GREIGE,TRIM4#,RH |
1 | ||
| 88899-28210J0 |
TCR10,20..ATM LIGHT BLUE,TRIM8#,RH |
1 | ||
| Common parts | ||||
| 88688-28200 | ||||
| 88688-95D37 | ||||
| 90179-06130 | ||||
| 93540-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
