TCR10L-RESDKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

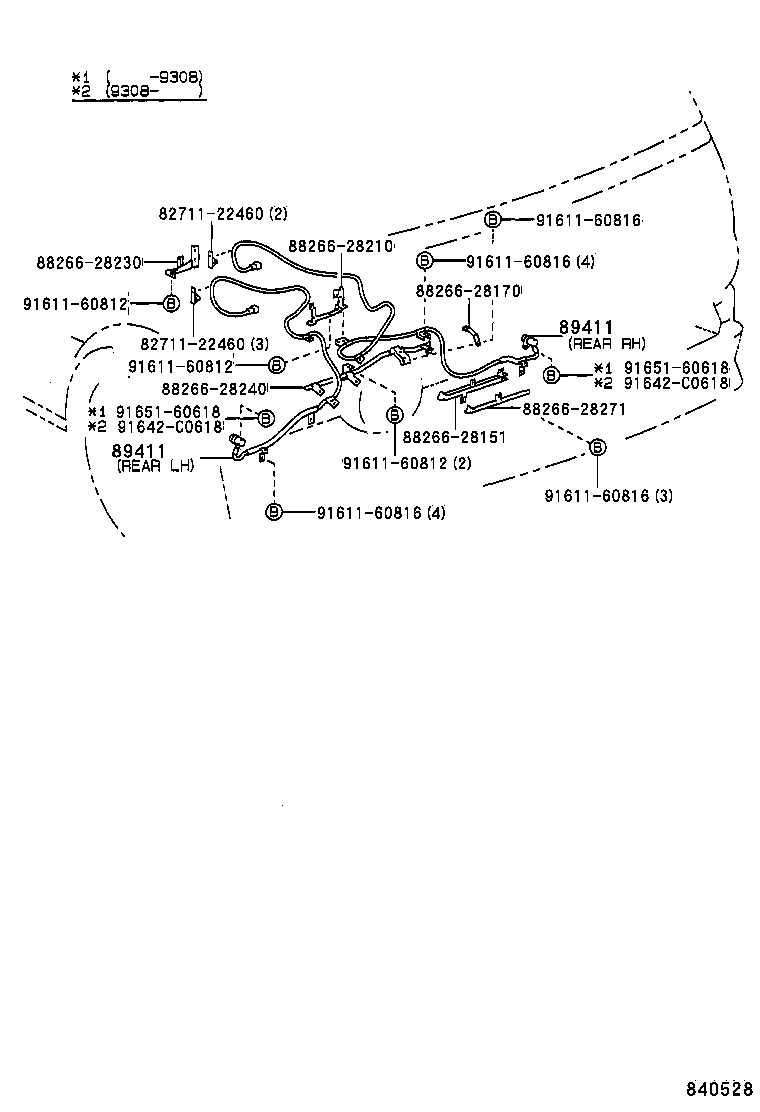

ILLUST NO. 2 OF 2(9001-9608)

Click highlighted areas on diagram

diagram 8271122460 8271122460 8826628151 8826628170 8826628210 8826628230 8826628240 8826628271 89411 89411 9161160812 9161160812 9161160812 9161160816 9161160816 9161160816 9161160816 91642C0618 91642C0618 9165160618 9165160618
Part # Description Qty Price
89411 - SENSOR, SPEED
89545-28010

TCR10,20

REAR RH

 1
89542-28010

TCR10,20

FRONT RH

 1
89546-28010

TCR10,20

REAR LH

 1
89545-28011

TCR10,20

REAR RH

 1
89543-28010

TCR10,20

FRONT LH

 1
89411 - SENSOR, SPEED
89545-28010

TCR10,20

REAR RH

 1
89542-28010

TCR10,20

FRONT RH

 1
89546-28010

TCR10,20

REAR LH

 1
89545-28011

TCR10,20

REAR RH

 1
89543-28010

TCR10,20

FRONT LH

 1
Common parts
82711-22460
88266-28151
88266-28170
88266-28210
88266-28230
88266-28240
88266-28271
91611-60812
91611-60816
91642-C0618
91651-60618

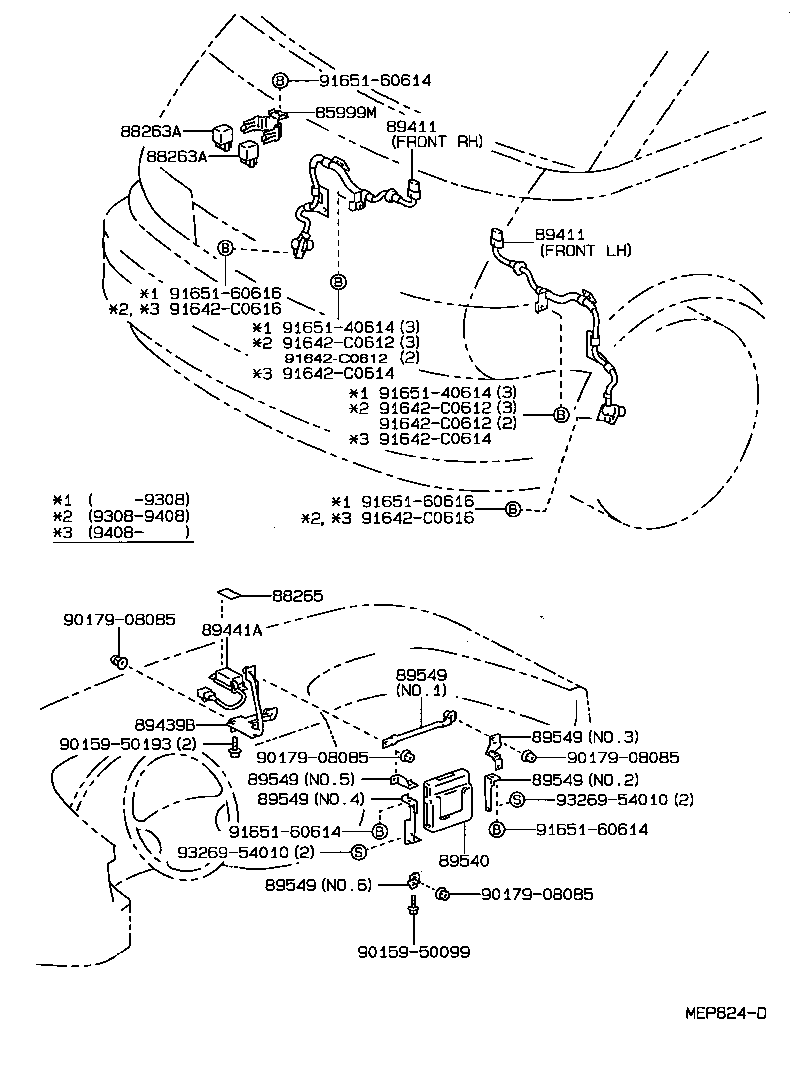

ILLUST NO. 1 OF 2(9001-9608)

Click highlighted areas on diagram

diagram 85999M 88263A 88263A 88265 89411 89411 89439B 89441A 89540 89549 89549 89549 89549 89549 89549 9015950099 9015950193 9017908085 9017908085 9017908085 9017908085 91642C0612 91642C0612 91642C0612 91642C0612 91642C0614 91642C0614 91642C0616 91642C0616 9165140614 9165140614 9165160614 9165160614 9165160614 9165160616 9165160616 9326954010 9326954010
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-14110

TCR10,20

MOTOR

 1
88263-14120

TCR10,20

SOLENOID

 1
88263A - RELAY, SKID CONTROL
88263-14110

TCR10,20

MOTOR

 1
88263-14120

TCR10,20

SOLENOID

 1
89411 - SENSOR, SPEED
89545-28010

TCR10,20

REAR RH

 1
89542-28010

TCR10,20

FRONT RH

 1
89546-28010

TCR10,20

REAR LH

 1
89545-28011

TCR10,20

REAR RH

 1
89543-28010

TCR10,20

FRONT LH

 1
89411 - SENSOR, SPEED
89545-28010

TCR10,20

REAR RH

 1
89542-28010

TCR10,20

FRONT RH

 1
89546-28010

TCR10,20

REAR LH

 1
89545-28011

TCR10,20

REAR RH

 1
89543-28010

TCR10,20

FRONT LH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-28011

TCR10

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88268-28100

TCR10,20

NO.5

 1
88269-28080

TCR10

NO.6

 1
88267-28090

TCR10,20

NO.2

 1
88267-28080

TCR10,20

NO.4

 1
88268-28110

TCR10,20

NO.3

 1
89549-28010

TCR10

NO.1

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88268-28100

TCR10,20

NO.5

 1
88269-28080

TCR10

NO.6

 1
88267-28090

TCR10,20

NO.2

 1
88267-28080

TCR10,20

NO.4

 1
88268-28110

TCR10,20

NO.3

 1
89549-28010

TCR10

NO.1

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88268-28100

TCR10,20

NO.5

 1
88269-28080

TCR10

NO.6

 1
88267-28090

TCR10,20

NO.2

 1
88267-28080

TCR10,20

NO.4

 1
88268-28110

TCR10,20

NO.3

 1
89549-28010

TCR10

NO.1

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88268-28100

TCR10,20

NO.5

 1
88269-28080

TCR10

NO.6

 1
88267-28090

TCR10,20

NO.2

 1
88267-28080

TCR10,20

NO.4

 1
88268-28110

TCR10,20

NO.3

 1
89549-28010

TCR10

NO.1

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88268-28100

TCR10,20

NO.5

 1
88269-28080

TCR10

NO.6

 1
88267-28090

TCR10,20

NO.2

 1
88267-28080

TCR10,20

NO.4

 1
88268-28110

TCR10,20

NO.3

 1
89549-28010

TCR10

NO.1

 1
89549 - BRACKET, SKID CONTROL COMPUTER
88268-28100

TCR10,20

NO.5

 1
88269-28080

TCR10

NO.6

 1
88267-28090

TCR10,20

NO.2

 1
88267-28080

TCR10,20

NO.4

 1
88268-28110

TCR10,20

NO.3

 1
89549-28010

TCR10

NO.1

 1
Common parts
90159-50099
90159-50193
90179-08085
91642-C0612
91642-C0614
91642-C0616
91651-40614
91651-60614
91651-60616
93269-54010
