TCR10L-RESDKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

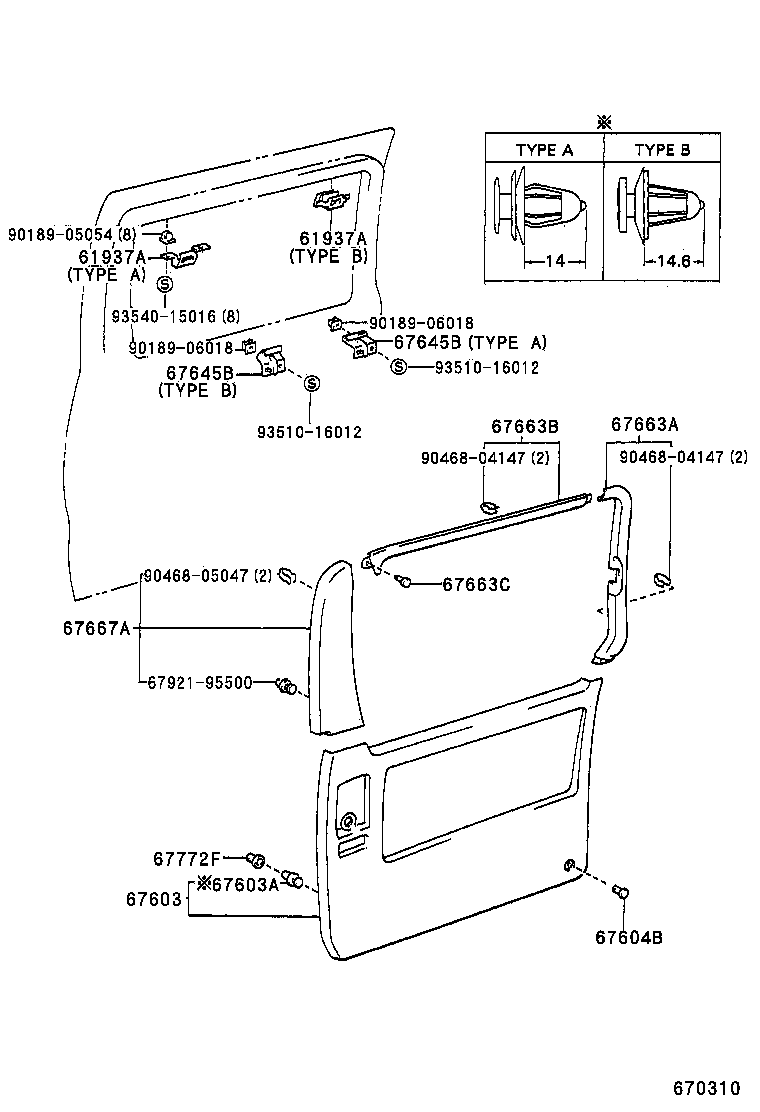

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram 61937A 61937A 67603 67603A 67604B 67645B 67645B 67663A 67663B 67663C 67667A 67772F 6792195500 9018905054 9018906018 9018906018 9046804147 9046804147 9046805047 9351016012 9351016012 9354015016
Part # Description Qty Price
61937A - BRACKET, SIDE WINDOW GARNISH
61937-95D00

TCR10,20

TYPE A:REFER TO ILLUSTRATION

 4
61937-95D01

TCR10..ATM..CND;TCR20..CND..SPC;TCR10,20..ATM..05S..USA

TYPE B:REFER TO ILLUSTRATION

 1
61937A - BRACKET, SIDE WINDOW GARNISH
61937-95D00

TCR10,20

TYPE A:REFER TO ILLUSTRATION

 4
61937-95D01

TCR10..ATM..CND;TCR20..CND..SPC;TCR10,20..ATM..05S..USA

TYPE B:REFER TO ILLUSTRATION

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67680-95D0004

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
67680-95D0006

TCR10,20..05S

LIGHT TAN,TRIM4#

 1
67680-95D0003

TCR10,20..05S

LIGHT GRAY,TRIM1#

 1
67680-95D00J1

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050

TCR10,20

 8
67771-12050

TCR10,20

TYPE A

 6
67604B - CLIP(FOR SLIDE DOOR TRIM BOARD)
90467-0704353

TCR10,20

GRAY,TRIM1#

 2
90467-07043R9

TCR10,20

BLUE,TRIM8#

 2
90467-0704330

TCR10,20

LIGHT GREIGE,TRIM4#

 2
90467-0704359

TCR10,20

LIGHT TAN,TRIM4#

 2
90467-0704349

TCR10,20

LIGHT BLUE,TRIM8#

 2
67645B - BRACKET, SLIDE DOOR TRIM BASE
67645-95D15

TCR10,20

TYPE B

 1
67645-95D14

TCR10,20

TYPE A

 2
67645B - BRACKET, SLIDE DOOR TRIM BASE
67645-95D15

TCR10,20

TYPE B

 1
67645-95D14

TCR10,20

TYPE A

 2
67663A - GARNISH, DOOR FRAME, RH
67663-95D0103

TCR10,20

LIGHT GRAY,TRIM1#

 1
67663-95D0104

TCR10,20

LIGHT BLUE,TRIM8#

 1
67663-95D01R4

TCR10,20

BLUE,TRIM8#

 1
67663-95D0106

TCR10,20

LIGHT TAN,TRIM4#

 1
67663-95D0105

TCR10,20

LIGHT GREIGE,TRIM4#

 1
67663B - GARNISH, DOOR FRAME, UPPER RH
67663-95D0006

TCR10,20

LIGHT TAN,TRIM4#

 1
67663-95D00R4

TCR10,20

BLUE,TRIM8#

 1
67663-95D0005

TCR10,20

LIGHT GREIGE,TRIM4#

 1
67663-95D0003

TCR10,20

LIGHT GRAY,TRIM1#

 1
67663-95D0004

TCR10,20

LIGHT BLUE,TRIM8#

 1
67663C - CLIP(FOR DOOR FRAME GARNISH)
90467-0601101

TCR10,20

BLACK,TRIM1#,4#,8#

 1
67667A - GARNISH, SLIDE DOOR WINDOW, RH
67667-95D0103

TCR10,20..05S

LIGHT GRAY,TRIM1#

 1
67667-95D0104

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
67667-95D0106

TCR10,20..05S

LIGHT TAN,TRIM4#

 1
67667-95D01R4

TCR10,20..05S

BLUE,TRIM8#

 1
67772F - CAP, REAR DOOR TRIM RETAINER
67772-95J02

TCR10,20

 2
Common parts
67921-95500
90189-05054
90189-06018
90468-04147
90468-05047
93510-16012
93540-15016

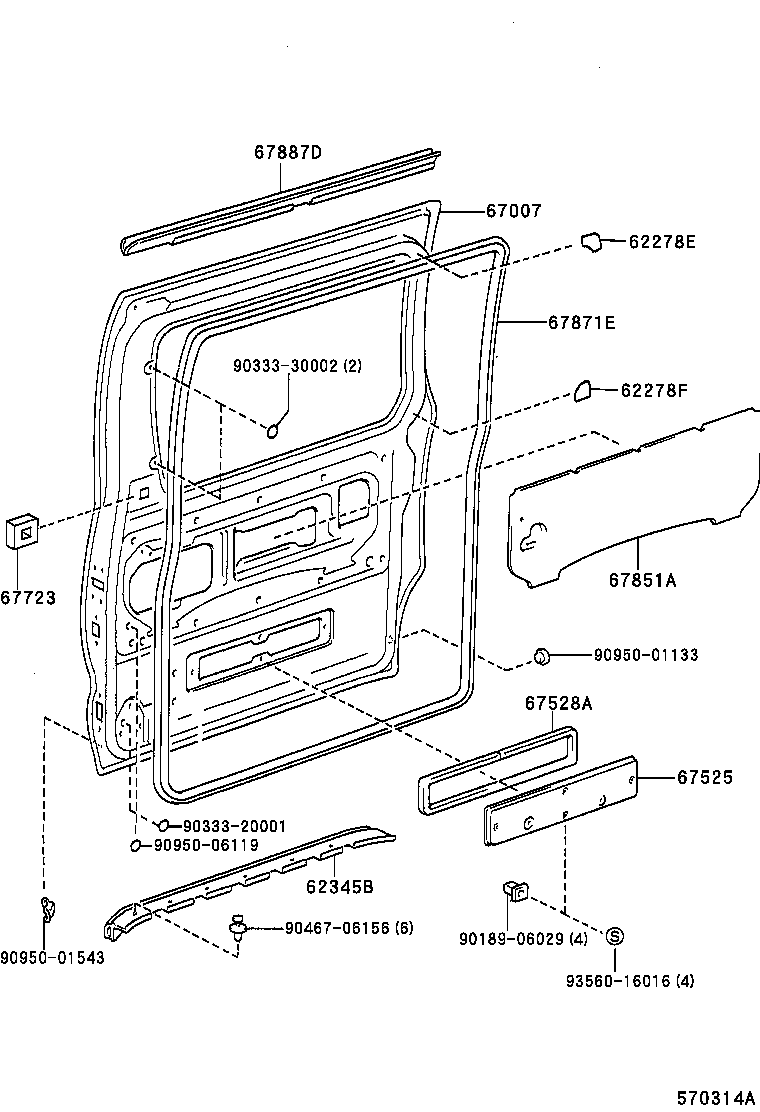

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

diagram 62278E 62278F 62345B 67007 67525 67528A 67723 67851A 67871E 67887D 9018906029 9033320001 9033330002 9046706156 9095001133 9095001543 9095006119 9356016016
Part # Description Qty Price
62345B - WEATHERSTRIP, SLIDE DOOR, NO.3 RH
62345-95D00

TCR10,20

 1
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-95D03

TCR10,20..05S

W(POWER DOOR LOCK)

 1
67003-95D05

TCR10,20..05S

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95D00

TCR10,20

 1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-87001

TCR10,20

 1
67723 - PAD, REAR DOOR TRIM, UPPER
67723-28010

TCR10,20

 1
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-95D00

TCR10,20

 1
67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH
67871-95D0006

TCR10,20

LIGHT TAN,TRIM4#

 1
67871-95D00J0

TCR10,20

LIGHT BLUE,TRIM8#

 1
67871-95D0003

TCR10,20

LIGHT GRAY,TRIM1#

 1
67871-95D0004

TCR10,20

LIGHT BLUE,TRIM8#

 1
67871-95D0005

TCR10,20

LIGHT GREIGE,TRIM4#

 1
67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH
67887-95D00

TCR10,20

 1
Common parts
90189-06029
90333-20001
90333-30002
90467-06156
90950-01133
90950-01543
90950-06119
93560-16016
