TCR10L-RESDKA (1990)
Toyota Previa
(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-95D00 |
TCR10,20 |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
TCR10,20 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-95D00 |
TCR10,20 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-95D00 |
TCR10,20 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95D00 |
TCR10,20 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12050 |
TCR10,20 LH |
1 | ||
| 69293-12060 |
TCR10,20 RH |
1 | ||
| 69293D - LINK, DOOR INSIDE HANDLE CONNECTING, RH | ||||
| 69293-95D00 |
TCR10,20 |
1 | ||
| 69294A - LINK, DOOR INSIDE HANDLE CONNECTING, LH | ||||
| 69294-95D00 |
TCR10,20 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-28050 |
TCR10,20..05S W(POWER DOOR LOCK) |
1 | ||
| 69030-95D01 |
TCR10,20..USA W(ANTI-THEFT DEVICE) |
1 | ||
| 69030-95D00 |
TCR10,20..05S W(POWER DOOR LOCK) |
1 | ||
| 69310-95D00 |
TCR10,20..05S |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-95D00 |
TCR10,20..05S W(POWER DOOR LOCK) |
1 | ||
| 69040-95D01 |
TCR10,20..USA W(ANTI-THEFT DEVICE) |
1 | ||
| 69320-95D00 |
TCR10,20..05S |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-95D00 |
TCR10,20 |
2 | ||
| 69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH | ||||
| 69701-95D00 |
TCR10,20 |
1 | ||
| 69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH | ||||
| 69702-95D00 |
TCR10,20 |
1 | ||
| 69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH | ||||
| 69725-95D00 |
TCR10,20 |
1 | ||
| 69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH | ||||
| 69726-95D00 |
TCR10,20 |
1 | ||
| 69731A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH | ||||
| 69731-95D00 |
TCR10,20 |
1 | ||
| 69732A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH | ||||
| 69732-95D00 |
TCR10,20 |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-50010 |
TCR10,20 |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-95D00 |
TCR10,20 |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20020 |
TCR10,20 LH |
1 | ||
| 69759-20030 |
TCR10,20 RH |
1 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-28010 |
TCR10,20 |
4 | ||
| 69759-95500 |
TCR10,20 |
4 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-28010 |
TCR10,20 |
4 | ||
| 69759-95500 |
TCR10,20 |
4 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20060 |
TCR10,20 LH-KNOB |
1 | ||
| 69759-20070 |
TCR10,20 RH-KNOB |
1 | ||
| 69759-14050 |
TCR10,20 LH-HANDEL |
1 | ||
| 69759-24070 |
TCR10,20 RH-HANDLE |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20060 |
TCR10,20 LH-KNOB |
1 | ||
| 69759-20070 |
TCR10,20 RH-KNOB |
1 | ||
| 69759-14050 |
TCR10,20 LH-HANDEL |
1 | ||
| 69759-24070 |
TCR10,20 RH-HANDLE |
1 | ||
| 69759Z - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24030 |
TCR10,20 LH |
1 | ||
| 69759-24040 |
TCR10,20 RH |
1 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-95D00 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90159-60409 | ||||
| 90159-60560 | ||||
| 90159-80044 | ||||
| 90189-05028 | ||||
| 90208-06001 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| 93530-55030 | ||||
| 93590-16014 | ||||

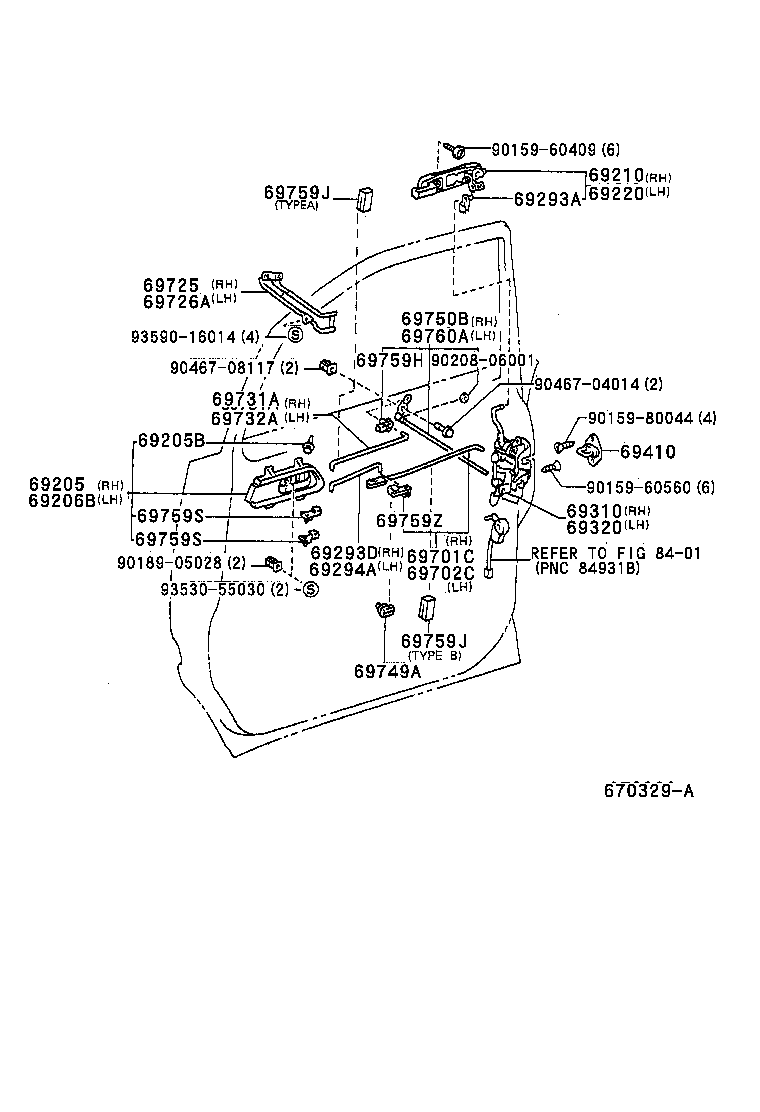

| Linked diagrams | ||||
| 8401 | ||||
