TCR10L-RESDKA (1990)

Toyota Previa

Production Jan 1990 - Aug 1995
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9608)2TZFE

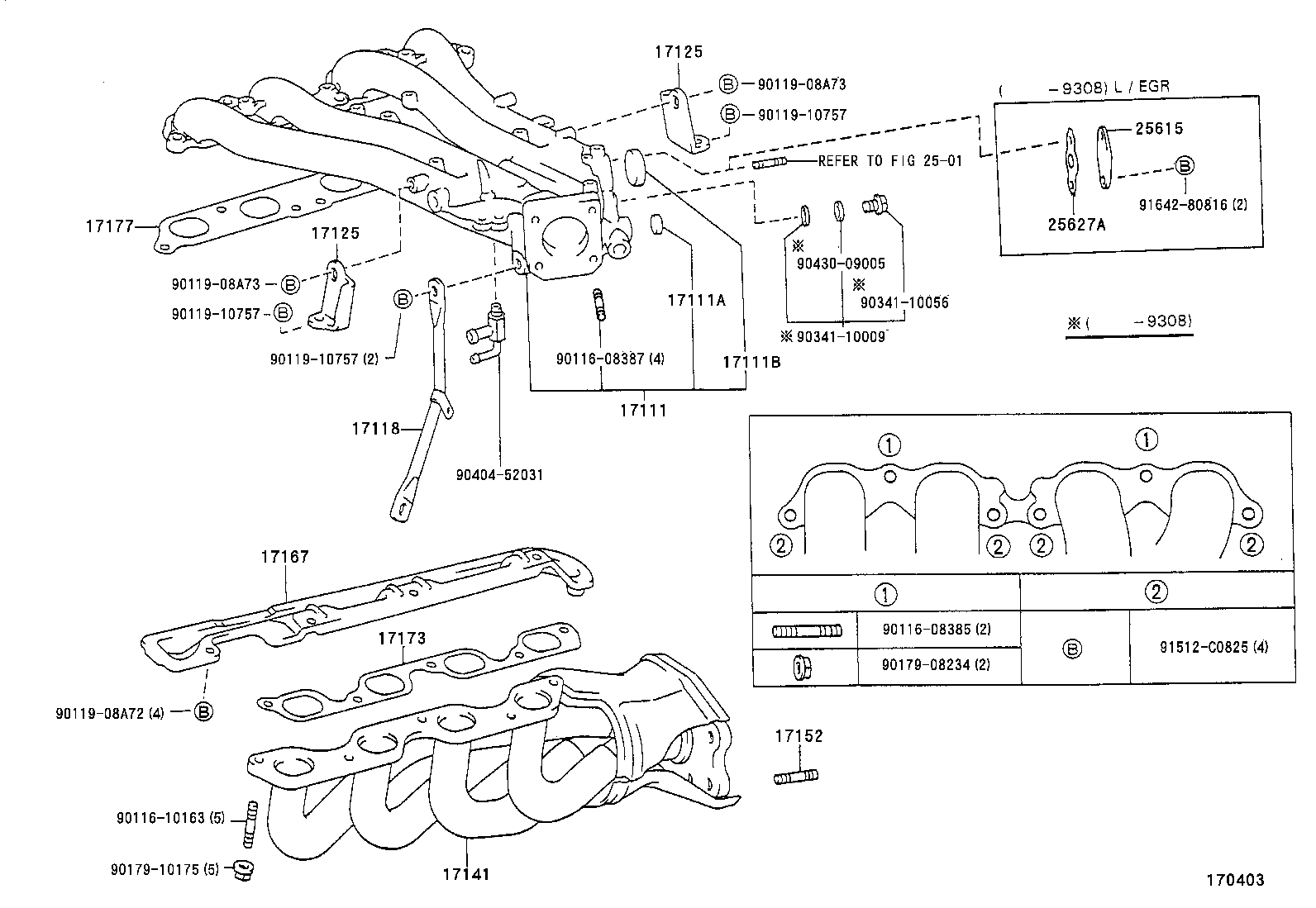

Click highlighted areas on diagram

diagram 17111 17111A 17111B 17118 17125 17125 17141 17152 17167 17173 17177 2501 25615 25627A 9011608385 9011608387 9011610163 9011908A72 9011908A73 9011908A73 9011910757 9011910757 9011910757 9017908234 9017910175 9034110009 9034110056 9040452031 9043009005 91512C0825 9164280816
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-76010

2TZFE..TCR10,20

 1
17101-76011

2TZFE..TCR10,20

 1
17111A - PLUG, NO.1
90331-16001

2TZ#..TCR10,20

 2
17111B - PLUG, NO.2
96411-43500

2TZ#..TCR10,20

 1
17118 - STAY, MANIFOLD
17118-76010

2TZFE..TCR10,20

 1
17118-76010

2TZ#..TCR10,20

NO.1

 1
17125 - STAY, SURGE TANK, NO.1
17125-76010

2TZ#..TCR10,20

 2
17125 - STAY, SURGE TANK, NO.1
17125-76010

2TZ#..TCR10,20

 2
17141 - MANIFOLD, EXHAUST
17141-76040

2TZFE..TCR10,20

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

2TZ#..TCR10,20

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-76010

2TZ#..TCR10,20

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-76010

2TZ#..TCR10,20

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-76011

2TZFE..TCR10,20

 1
Common parts
90116-08385
90116-08387
90116-10163
90119-08A72
90119-08A73
90119-10757
90179-08234
90179-10175
90341-10009
90341-10056
90404-52031
90430-09005
91512-C0825
91642-80816
Linked diagrams
2501
