TCR10L-REMDKK (1990)

Toyota Previa

Production Jan 1990 - Aug 1993
Engine 2TZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

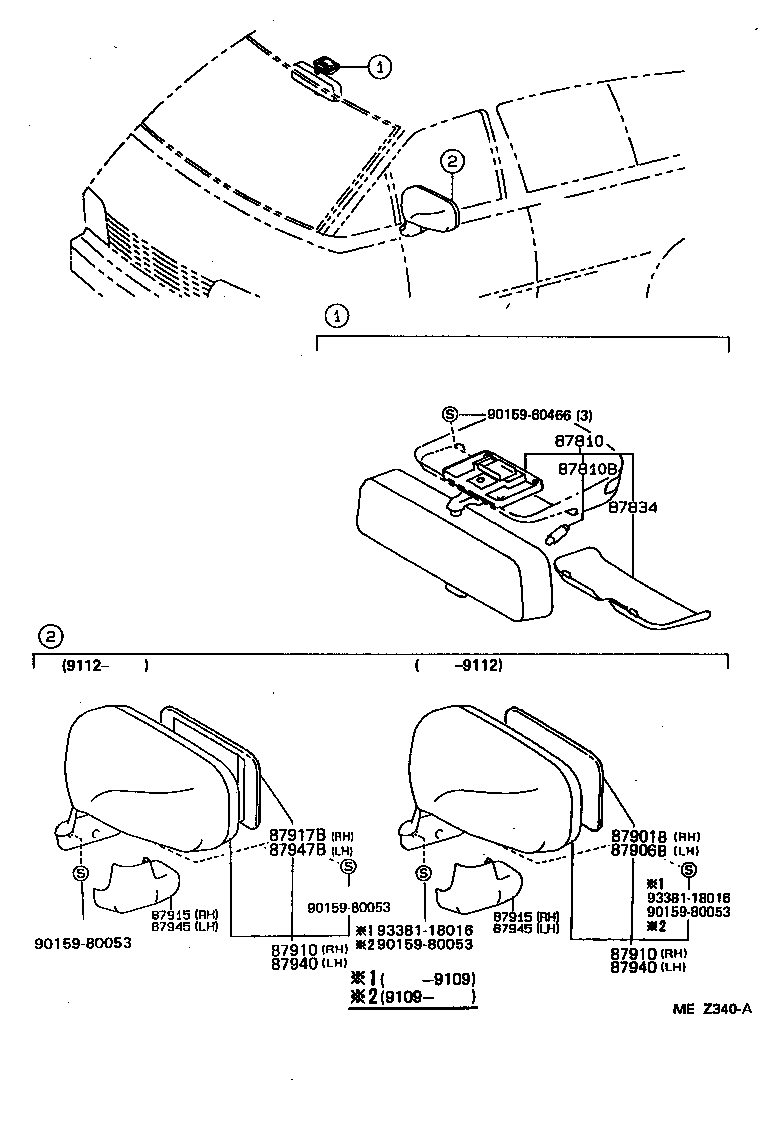

Click highlighted areas on diagram

diagram 87810 87810B 87834 87901B 87906B 87910 87910 87915 87915 87917B 87940 87940 87945 87945 87947B 9015960466 9015980053 9015980053 9015980053 9015980053 9338118016 9338118016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95D0406

TCR10,20..05S

LIGHT TAN,TRIM4#

 1
87810-95D0506

TCR10,20

W(CLOCK),LIGHT TAN,TRIM4#

 1
87810-95D0506

TCR10,20..05S

W(CLOCK),LIGHT TAN,TRIM4#

 1
87810-95D0403

TCR10,20..05S

LIGHT GRAY,TRIM1#

 1
87810-95D05E0

TCR10,20

LIGHT GREIGE,TRIM4#

 1
87810-95D0404

TCR10,20..05S

LIGHT BLUE,TRIM8#

 1
87810-95D0503

TCR10,20

W(CLOCK),LIGHT GRAY,TRIM1#

 1
87810-95D0504

TCR10,20..EFI

W(CLOCK),LIGHT BLUE,TRIM8#

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
99132-12100

TCR10,20

12V 10W

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81241-95D00

TCR10,20..05S..EFI

W(CLOCK)

 1
81241-87001

TCR10,20..05S

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87908-95D01

TCR10,20

MANUAL TYPE

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87909-95D03

TCR10,20

MANUAL TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95D0101

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87910-95D0201

TCR10,20..05S

ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87910-95D0201

TCR10,20..05S

ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87910-95D0101

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87910-28290

TCR10,20

ELECTRIC REMOTE

 1
87910-28270

TCR10,20

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95D0101

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87910-95D0201

TCR10,20..05S

ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87910-95D0201

TCR10,20..05S

ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87910-95D0101

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87910-28290

TCR10,20

ELECTRIC REMOTE

 1
87910-28270

TCR10,20

 1
87915 - COVER, OUTER MIRROR, RH
87915-95D0001

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87915-95D0001

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87915 - COVER, OUTER MIRROR, RH
87915-95D0001

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87915-95D0001

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-95D0401

TCR10,20..05S

ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87940-95D0301

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87940-28290

TCR10,20

ELECTRIC REMOTE

 1
87940-95D0301

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87940-28270

TCR10,20

 1
87940-95D0401

TCR10,20..05S

ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-95D0401

TCR10,20..05S

ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87940-95D0301

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87940-28290

TCR10,20

ELECTRIC REMOTE

 1
87940-95D0301

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87940-28270

TCR10,20

 1
87940-95D0401

TCR10,20..05S

ELECTRIC REMOTE,BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87945 - COVER, OUTER MIRROR, LH
87945-95D0001

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87945-95D0001

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87945 - COVER, OUTER MIRROR, LH
87945-95D0001

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H5

 1
87945-95D0001

TCR10,20..05S

BLACK,041 ,3H8 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5

 1
87947B - MIRROR, OUTER REAR VIEW, LH
87947-95D01

TCR10,20

 1
87947-28290

TCR10,20

W(*DRC)

 1
87947-28290

TCR10,20..CND

 1
Common parts
90159-60466
90159-80053
93381-18016
