RN48L-MSK (1981)

Toyota Pickup

Production Aug 1981 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )RN38,48

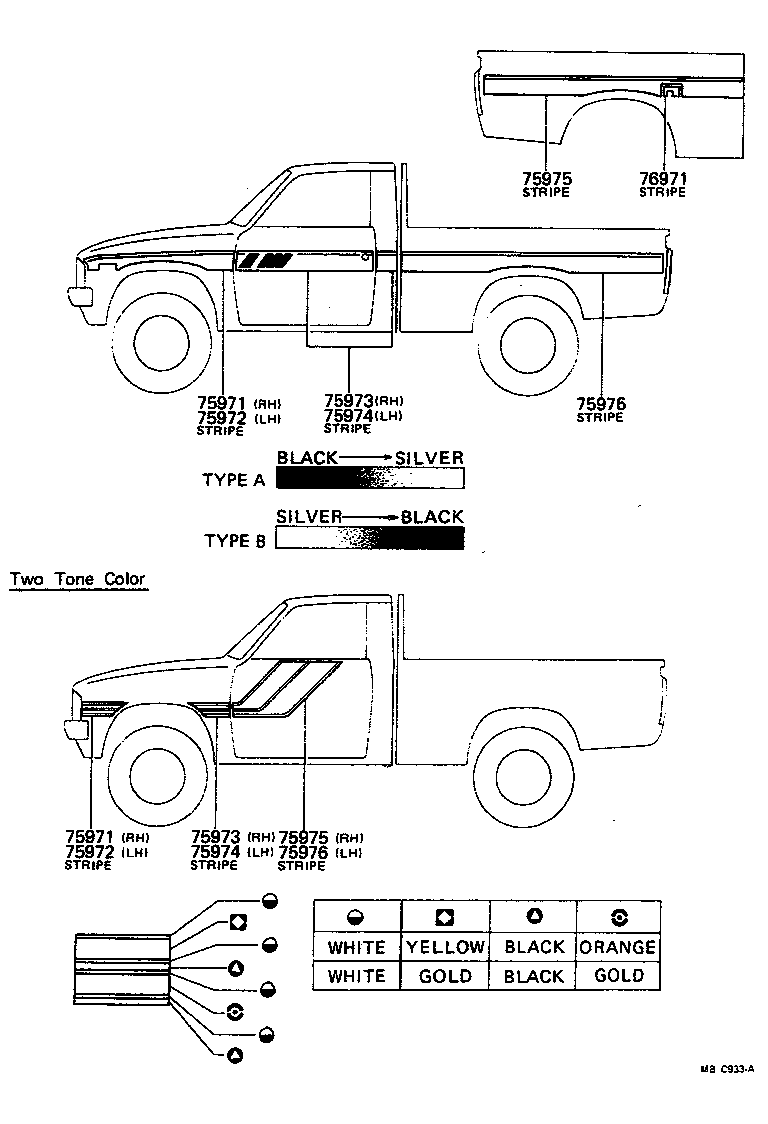

Click highlighted areas on diagram

diagram 75971 75971 75972 75972 75973 75973 75974 75974 75975 75975 75976 75976 76971
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75981-95115

RN38,48..SR5

YELLOW & ORANGE

 1
75981-95121

RN38,48..SR5

GOLD & GOLD

 1
75971 - STRIPE, SIDE, RH NO.1
75981-95115

RN38,48..SR5

YELLOW & ORANGE

 1
75981-95121

RN38,48..SR5

GOLD & GOLD

 1
75972 - STRIPE, SIDE, LH NO.1
75982-95121

RN38,48..SR5

GOLD & GOLD

 1
75982-95115

RN38,48..SR5

YELLOW & ORANGE

 1
75972 - STRIPE, SIDE, LH NO.1
75982-95121

RN38,48..SR5

GOLD & GOLD

 1
75982-95115

RN38,48..SR5

YELLOW & ORANGE

 1
75973 - STRIPE, SIDE, RH NO.2
75983-95111

RN38,48..SR5

GOLD & GOLD

 1
75983-95110

RN38,48..SR5

YELLOW & ORANGE

 1
75973 - STRIPE, SIDE, RH NO.2
75983-95111

RN38,48..SR5

GOLD & GOLD

 1
75983-95110

RN38,48..SR5

YELLOW & ORANGE

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75984-95111

RN38,48..SR5

GOLD & GOLD

 1
75984-95110

RN38,48..SR5

YELLOW & ORANGE

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75984-95111

RN38,48..SR5

GOLD & GOLD

 1
75984-95110

RN38,48..SR5

YELLOW & ORANGE

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75985-95119

RN38,48..SR5

GOLD & GOLD

 1
75985-95113

RN38,48..SR5

YELLOW & ORANGE

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75985-95119

RN38,48..SR5

GOLD & GOLD

 1
75985-95113

RN38,48..SR5

YELLOW & ORANGE

 1
75976 - STRIPE, SIDE, LH UPR
75986-95113

RN38,48..SR5

YELLOW & ORANGE

 1
75986-95119

RN38,48..SR5

GOLD & GOLD

 1
75976 - STRIPE, SIDE, LH UPR
75986-95113

RN38,48..SR5

YELLOW & ORANGE

 1
75986-95119

RN38,48..SR5

GOLD & GOLD

 1
