RN48L-MSK (1981)

Toyota Pickup

Production Aug 1981 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )4FC..SR5 ; (8108- )RN38,48..SR5

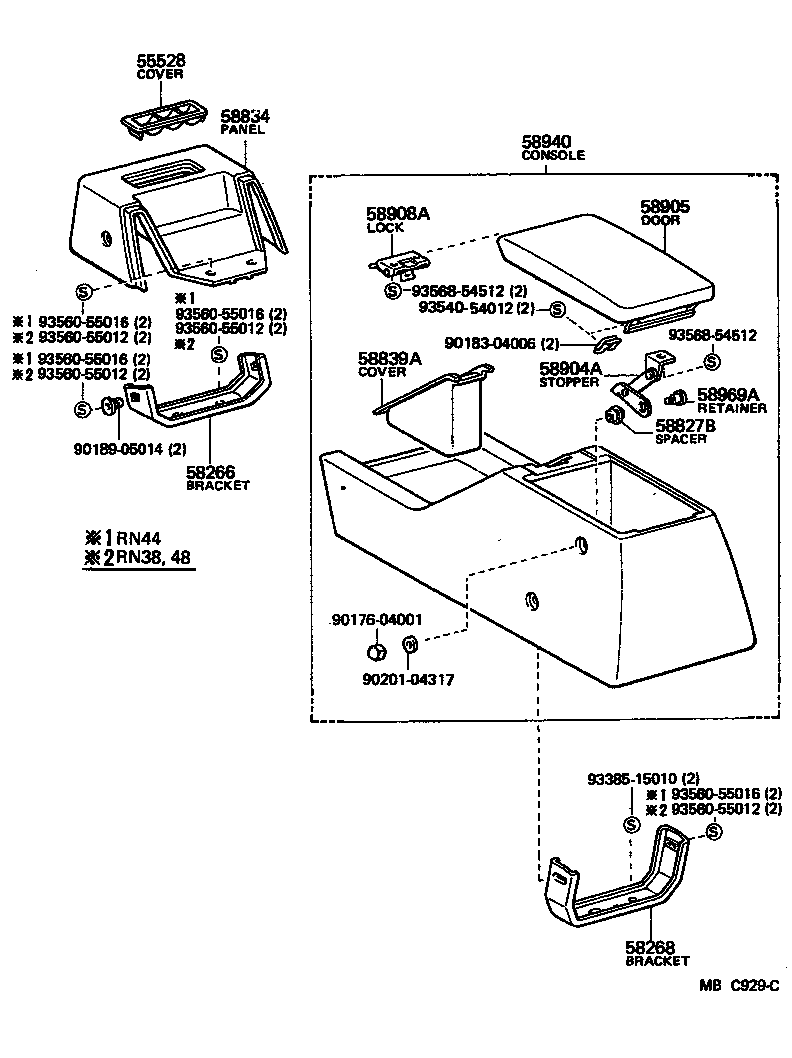

Click highlighted areas on diagram

diagram 55528 58266 58268 58827B 58834 58839A 58904A 58905 58908A 58940 58969A 9017604001 9018304006 9018905014 9020104317 9338515010 9354054012 9356055012 9356055012 9356055012 9356055016 9356055016 9356055016 9356055016 9356854512 9356854512
Part # Description Qty Price
55528 - COVER, AUTO DRIVE OPENING
55528-1403001

RN38,48..SR5

BLACK,BLACK

 1
55528-1403004

RN38,48..SR5

BLUE,BLUE

 1
55528-1403006

RN38,48..SR5

BROWN,BROWN

 1
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58995-95110

RN38,48..SR5

 1
58268 - BRACKET, CONSOLE BOX SUPPORT, REAR
58996-95111

RN38,48..SR5

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

RN38,48..SR5

 1
58834 - PANEL, CONSOLE END
58912-9511006

RN38,48..SR5

BROWN,BROWN

 1
58912-9511001

RN38,48..SR5

BLACK,BLACK

 1
58912-9511004

RN38,48..SR5

BLUE,BLUE

 1
58839A - COVER, CONSOLE BOX HOLE
58839-9511001

RN38,48..SR5

BLACK,BLACK

 1
58839-9511006

RN38,48..SR5

BROWN,BROWN

 1
58839-9511004

RN38,48..SR5

BLUE,BLUE

 1
58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58904-22020

RN38,48..SR5

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-1403016

RN38,48..SR5

BROWN,BROWN

 1
58905-1403004

RN38,48..SR5

BLUE,BLUE

 1
58905-1403001

RN38,48..SR5

BLACK,BLACK

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12010

RN38,48..SR5

 1
58940 - CONSOLE ASSY, REAR
58801-9511204

RN38,48..SR5

BLUE,BLUE

 1
58801-9511201

RN38,48..SR5

BLACK,BLACK

 1
58801-9511206

RN38,48..SR5

BROWN,BROWN

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

RN38,48..SR5

 1
Common parts
90176-04001
90183-04006
90189-05014
90201-04317
93385-15010
93540-54012
93560-55012
93560-55016
93568-54512
