RN48L-MSK (1981)

Toyota Pickup

Production Aug 1981 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )22R..RN38,48..CND

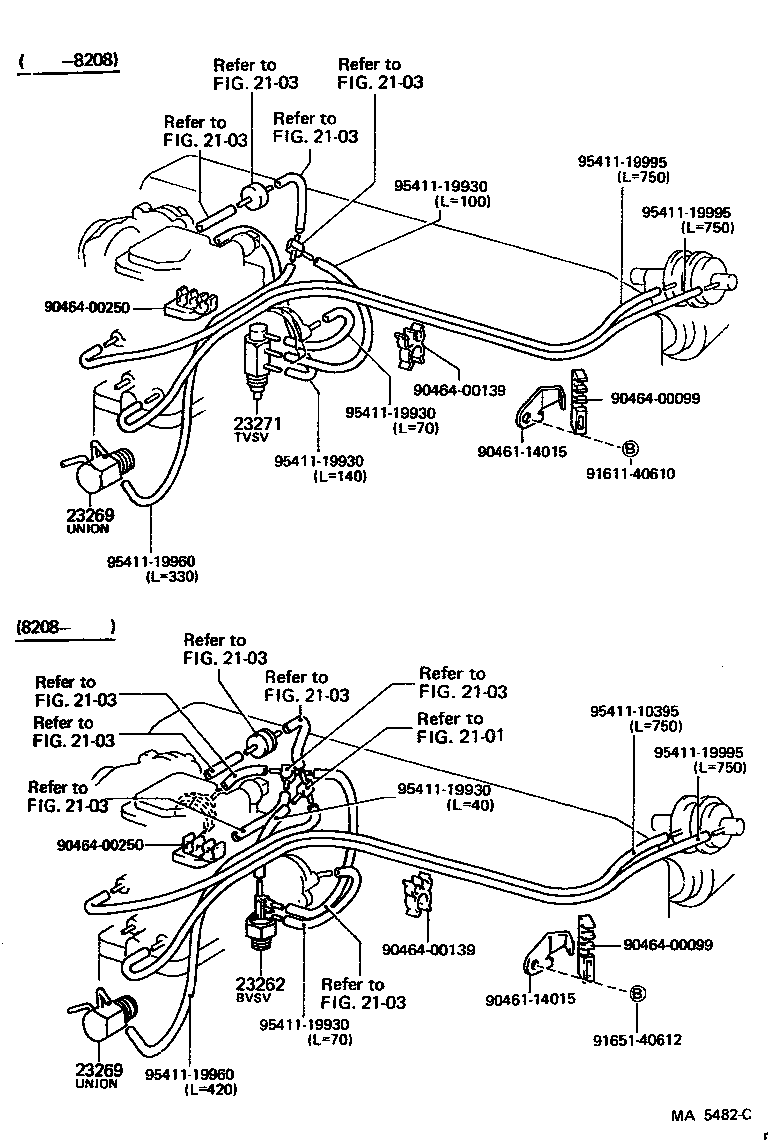

Click highlighted areas on diagram

diagram 2101 2103 2103 2103 2103 2103 2103 2103 2103 2103 2103 2103 23262 23269 23269 23271 9046114015 9046114015 9046400099 9046400099 9046400139 9046400139 9046400250 9046400250 9161140610 9165140612 9541110395 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119995 9541119995 9541119995
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

22R..RN3#,4#

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02069

22R..RN3#,4#

 1
Common parts
90461-14015
90464-00099
90464-00139
90464-00250
91611-40610
91651-40612
95411-10395
95411-19930
95411-19960
95411-19995
Linked diagrams
2101
2103
