RN48L-MSK (1981)

Toyota Pickup

Production Aug 1981 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )22R..RN38,48..CND

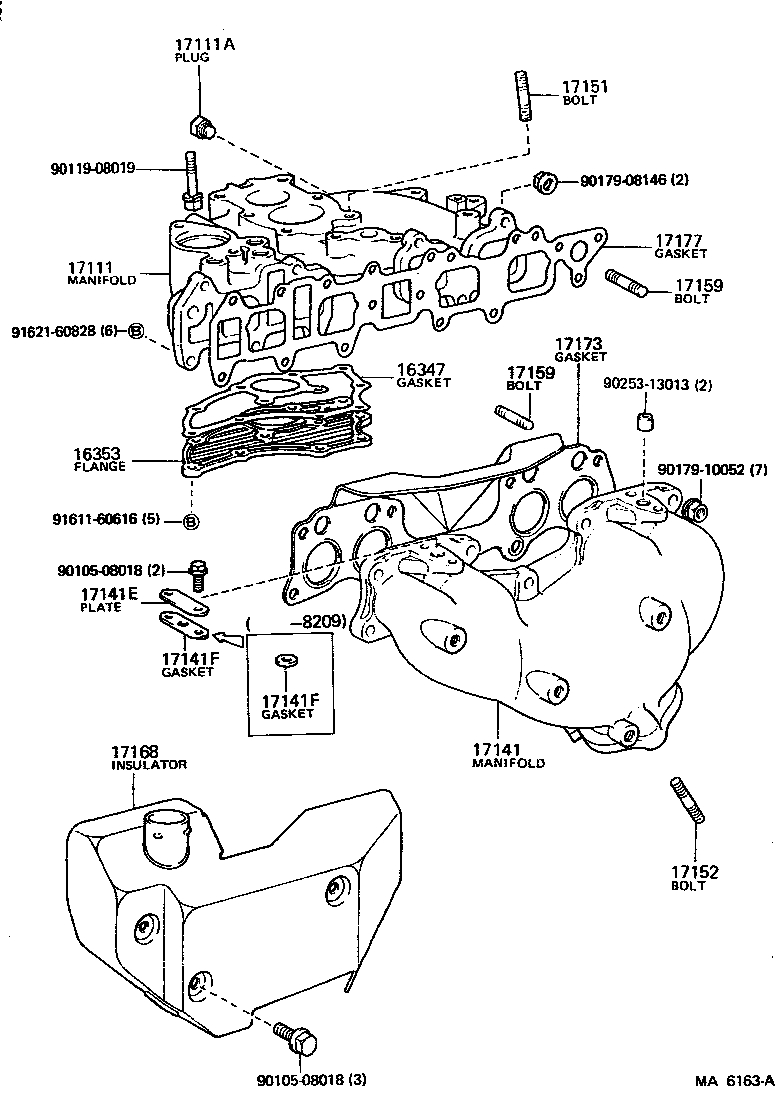

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17141 17141E 17141F 17141F 17151 17152 17159 17159 17168 17173 17177 9010508018 9010508018 9011908019 9017908146 9017910052 9025313013 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35020

22R..RN3#,4#

 1
16353 - FLANGE, WATER BY-PASS
16353-35020

22R..RN3#,4#

 1
17111 - MANIFOLD, INTAKE
17111-35030

22R..RN3#,4#

 1
17141 - MANIFOLD, EXHAUST
17141-35060

22R..RN38,48..CND

 1
17141E - PLATE, EXHAUST MANIFOLD
17148-35020

22R..RN38,48..CND

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
17198-35010

22R..RN38,48..CND

 2
17376-38011

22R..RN38,48..CND

 2
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
17198-35010

22R..RN38,48..CND

 2
17376-38011

22R..RN38,48..CND

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

20R,22R..RN3#,4#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

20R,22R..RN3#,4#

L=39,S=15&15

 3
90116-10087

22R..RN3#,4#

L=46.5,S=14&20

 3
90116-10058

22R..RN3#,4#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35040

22R..RN38,48..CND

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020

22R..RN3#,4#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35021

22R..RN3#,4#

 1
17177-35020

22R..RN3#,4#

 1
Common parts
90105-08018
90119-08019
90179-08146
90179-10052
90253-13013
91611-60616
91621-60828

(8208- )22R

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17141 17141D 17151 17152 17159 17159 17168 17173 17177 9010508018 9011908019 9017908146 9017910052 9025313013 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35020

22R..RN3#,4#

 1
16353 - FLANGE, WATER BY-PASS
16353-35020

22R..RN3#,4#

 1
17111 - MANIFOLD, INTAKE
17111-35030

22R..RN3#,4#

 1
17141 - MANIFOLD, EXHAUST
17141-35060

22R..RN38,48..CND

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

20R,22R..RN3#,4#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

20R,22R..RN3#,4#

L=39,S=15&15

 3
90116-10087

22R..RN3#,4#

L=46.5,S=14&20

 3
90116-10058

22R..RN3#,4#

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317

20R,22R..RN3#,4#

L=36,S=13&13

 7
90116-08013

20R,22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-08172

22R..RN3#,4#

INTAKE MANIFOLD SIDE

 2
90116-10067

22R..RN3#,4#

EXHAUST,UPR L=45,S=12&23

 4
90116-10064

22R..RN3#,4#

EXHAUST,LWR L=38,S=13&13

 3
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35040

22R..RN38,48..CND

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020

22R..RN3#,4#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35021

22R..RN3#,4#

 1
17177-35020

22R..RN3#,4#

 1
Common parts
90105-08018
90119-08019
90179-08146
90179-10052
90253-13013
91611-60616
91621-60828
