RN48L-MSA (1981)

Toyota Pickup

Production Aug 1981 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8304- )L

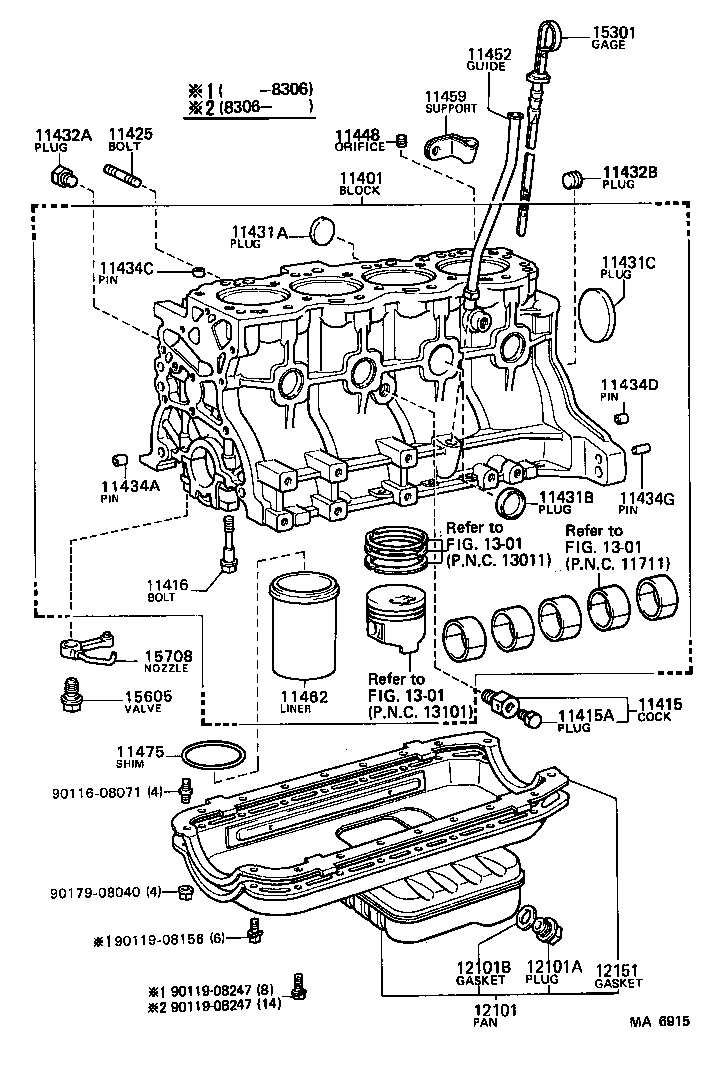

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11425 11431A 11431B 11431C 11432A 11432B 11434A 11434C 11434D 11434G 11448 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1301 1301 15301 15605 15708 9011608071 9011908156 9011908247 9011908247 9017908040
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39366

22R..RN3#,4#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

20R,22R..RN3#,4#

 1
90910-09070

22R..RN3#,4#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09072

22R..RN3#,4#

 1
96431-23814

20R,22R..RN3#,4#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02042

20R,22R..RN3#,4#

*12-1.25PX75-25

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

20R,22R..RN3#,4#

 6
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-52013

20R,22R..RN3#,4#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11021

20R,22R..RN3#,4#

L=8,OD=11,L=8,OD=11

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

20R,22R..RN3#,4#

L=18,OD=8,L=18,OD=9

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-38020

20R,22R..RN3#,4#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-38020

20R,22R..RN3#,4#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

20R,22R..RN3#,4#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

20R,22R..RN3#,4#

 1
12151 - GASKET, OIL PAN
12151-38010

20R,22R..RN3#,4#

 1
12151-35010

22R..RN3#,4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-38040

20R,22R..RN3#,4#

 1
15301-35010

22R..RN3#,4#

 1
Common parts
90116-08071
90119-08156
90119-08247
90179-08040
Linked diagrams
1301
