RN48L-MDA (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

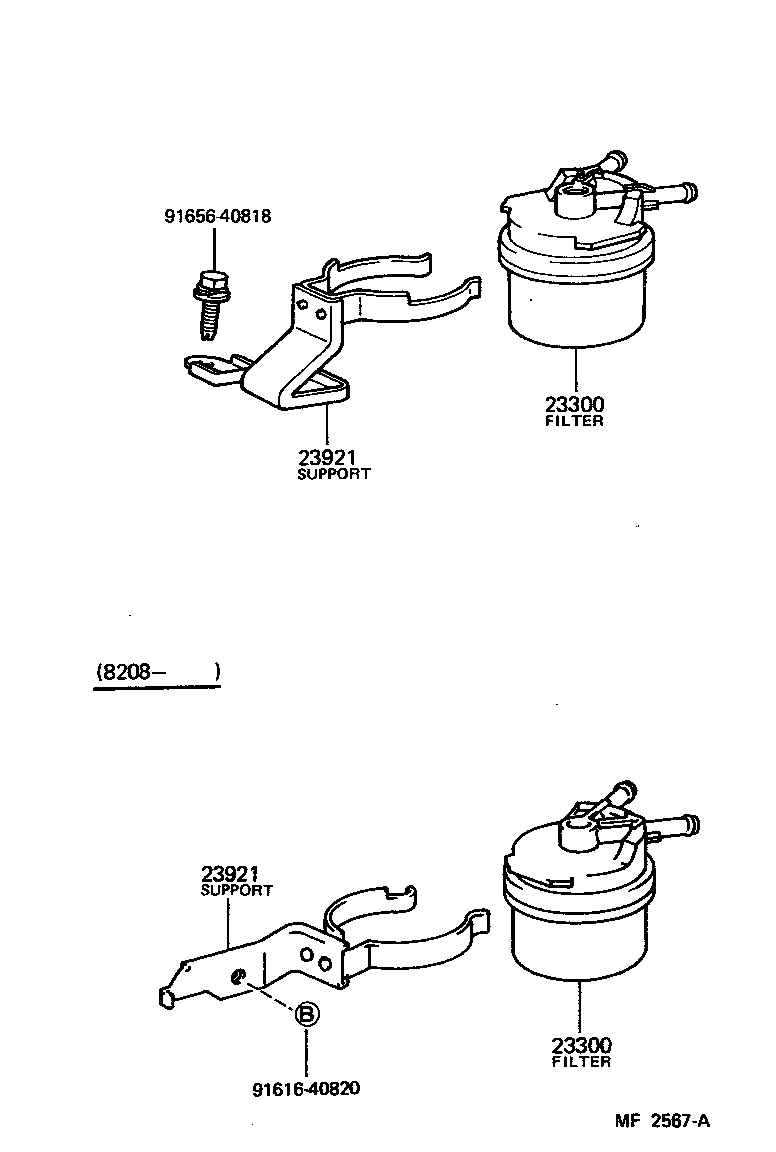

(8008- )22R

Click highlighted areas on diagram

diagram 23300 23300 23921 23921 9161640820 9165640818
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-15010

22R..RN3#,4#

 1
23300-34100

22R..RN3#,4#

 1
23300 - FILTER ASSY, FUEL
23300-15010

22R..RN3#,4#

 1
23300-34100

22R..RN3#,4#

 1
23921 - SUPPORT, FUEL FILTER
23921-35020

22R..RN3#,4#

 1
23921-35021

22R..RN3#,4#

 1
23921 - SUPPORT, FUEL FILTER
23921-35020

22R..RN3#,4#

 1
23921-35021

22R..RN3#,4#

 1
Common parts
91616-40820
91656-40818

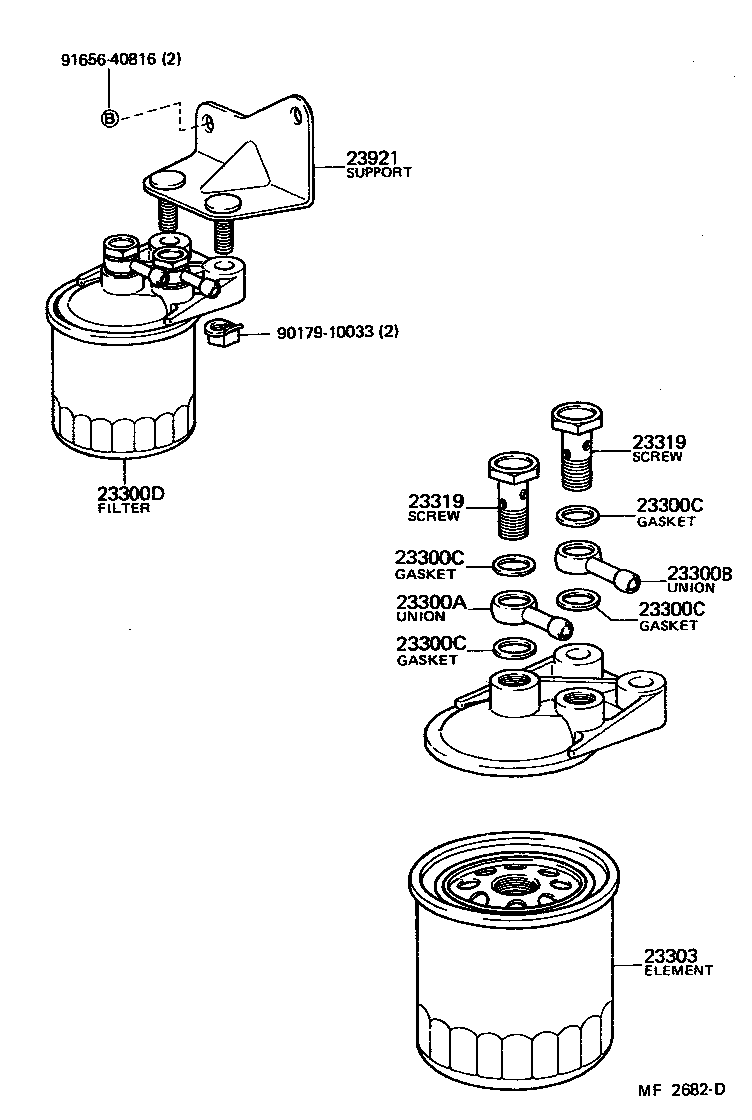

(8101- )L

Click highlighted areas on diagram

diagram 23300A 23300B 23300C 23300C 23300C 23300C 23300D 23303 23319 23319 23921 9017910033 9165640816
Part # Description Qty Price
23921 - SUPPORT, FUEL FILTER
23921-35020

22R..RN3#,4#

 1
23921-35021

22R..RN3#,4#

 1
Common parts
90179-10033
91656-40816

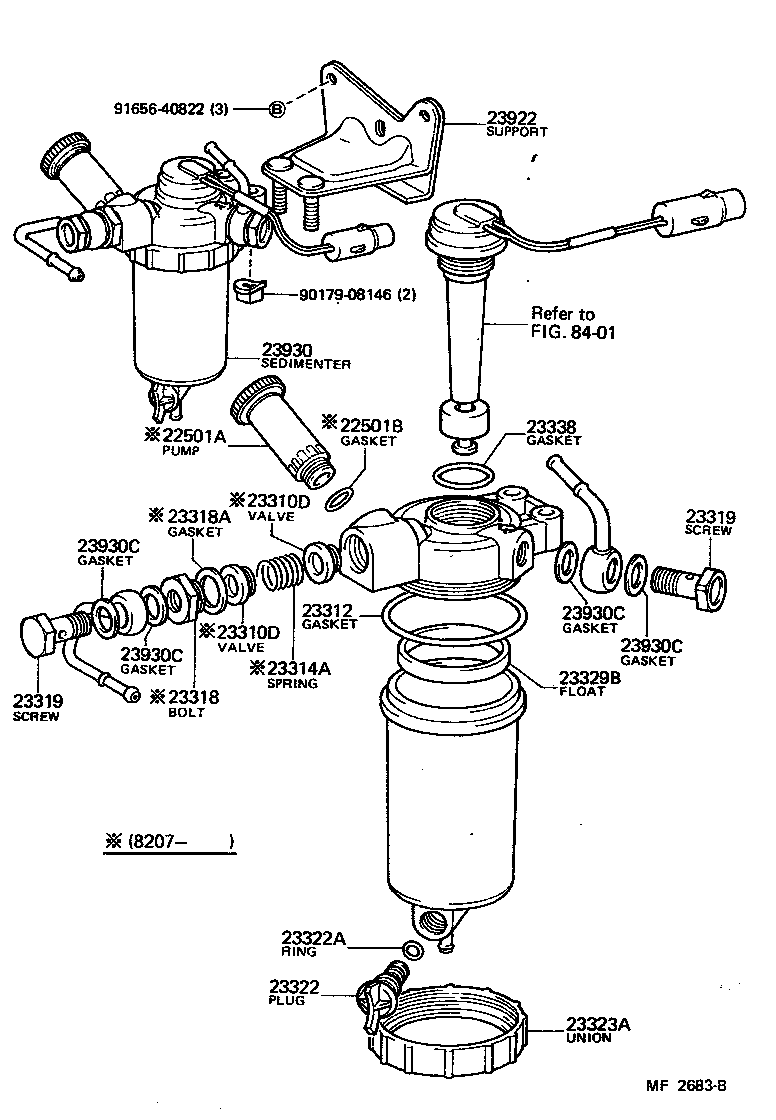

(8101- )L

Click highlighted areas on diagram

diagram 22501A 22501B 23310D 23310D 23312 23314A 23318 23318A 23319 23319 23322 23322A 23323A 23329B 23338 23922 23930 23930C 23930C 23930C 23930C 8401 9017908146 9165640822
Part # Description Qty Price
Common parts
90179-08146
91656-40822
Linked diagrams
8401
