RN48L-MDA (1980)

Toyota Pickup

Production Aug 1980 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )22R

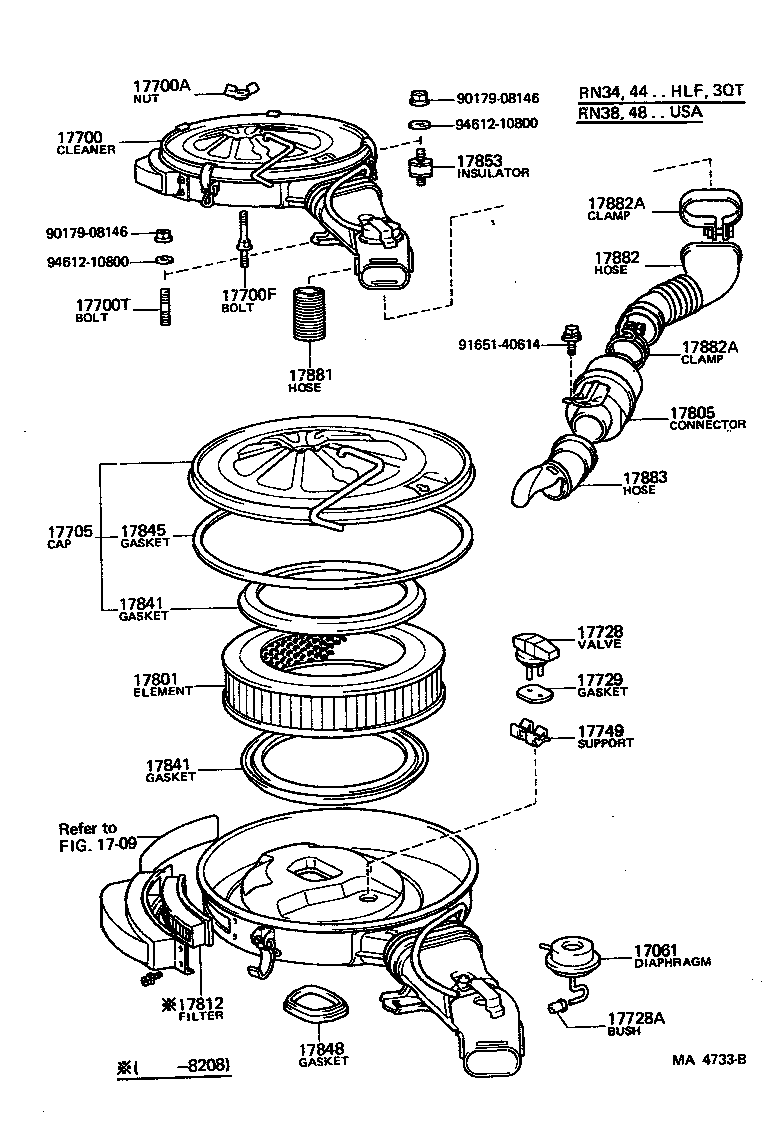

Click highlighted areas on diagram

diagram 17061 1709 17700 17700A 17700F 17700T 17705 17728 17728A 17729 17749 17801 17805 17812 17841 17841 17845 17848 17853 17881 17882 17882A 17882A 17883 9017908146 9017908146 9165140614 9461210800 9461210800
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-37010

22R..RN3#,4#

 1
17700 - CLEANER ASSY, AIR
17700-35060

22R..RN38,48..USA

 1
17700-35080

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17700-35100

22R..RN38,48..USA

 1
17700-35101

22R..RN38,48..USA

 1
17700-35040

22R..RN3#,4#..MTM..(3QT,HLF)

CALIFORNIA SPEC

 1
17700-35081

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

20R,22R..RN3#,4#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06020

22R..RN3#,4#

L=62,S=12.5&25

 1
17700T - BOLT, STUD(FOR AIR CLEANER)
90116-08033

20R,22R..RN3#,4#

L=26,S=8&13.5

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35040

22R..RN38,48..USA

 1
17705-35060

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17705-35030

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17705-35070

22R..RN38,48..USA

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090

20R,22R..RN3#,4#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-89102

22R..RN3#,4#

 1
17812 - FILTER, AIR CLEANER, NO.2
17812-37010

22R..RN38,48..USA

 1
17841 - GASKET, FILTER ELEMENT
17841-41050

20R,22R..RN3#,4#

 2
17841 - GASKET, FILTER ELEMENT
17841-41050

20R,22R..RN3#,4#

 2
17845 - GASKET, AIR CLEANER CAP
17845-35010

22R..RN3#,4#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

22R..RN3#,4#

 1
17853 - INSULATOR, AIR CLEANER BRACKET
17853-38010

20R,22R..RN3#,4#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37030

22R..RN3#,4#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-89105

22R..RN3#,4#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01017

22R..RN3#,4#

AIR CLEANER SIDE

 1
96111-10710

22R..RN3#,4#

CONNECTOR SIDE

 1
96111-10690

22R..RN38,48

CONNECTOR SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01017

22R..RN3#,4#

AIR CLEANER SIDE

 1
96111-10710

22R..RN3#,4#

CONNECTOR SIDE

 1
96111-10690

22R..RN38,48

CONNECTOR SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-89103

22R..RN3#,4#

 1
Common parts
90179-08146
91651-40614
94612-10800
Linked diagrams
1709

(8008- )22R

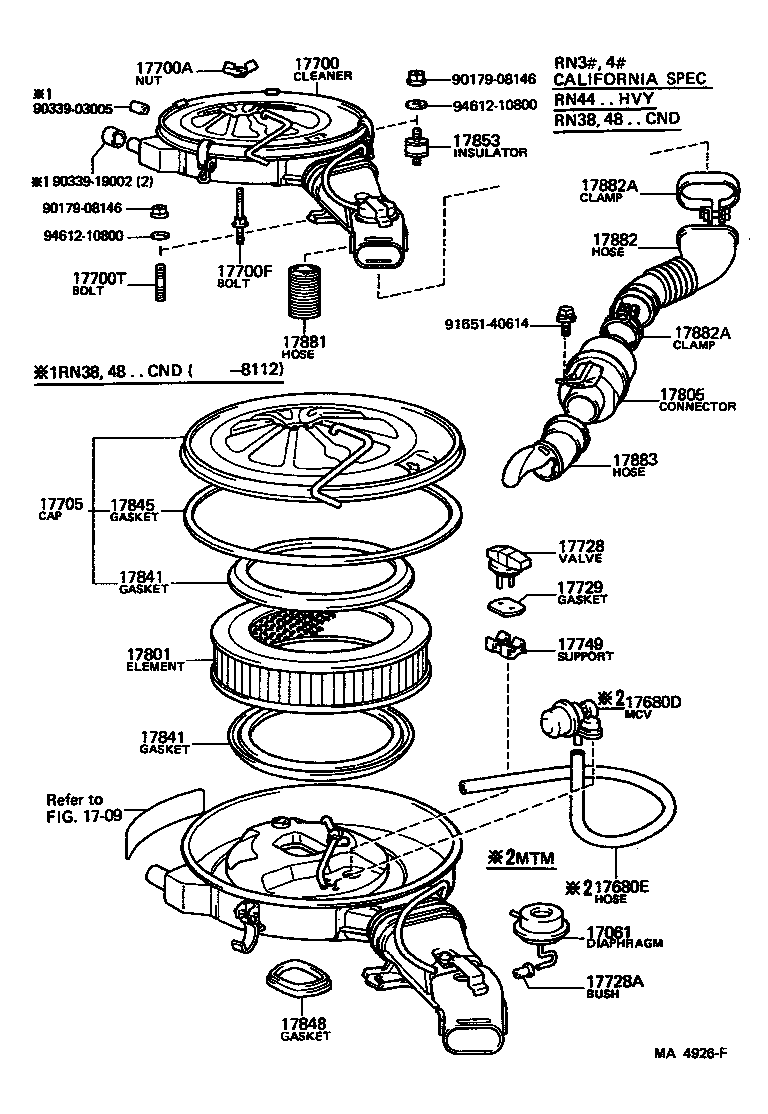

Click highlighted areas on diagram

diagram 17061 1709 17680D 17680E 17700 17700A 17700F 17700T 17705 17728 17728A 17729 17749 17801 17805 17841 17841 17845 17848 17853 17881 17882 17882A 17882A 17883 9017908146 9017908146 9033903005 9033919002 9165140614 9461210800 9461210800
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-37010

22R..RN3#,4#

 1
17680D - VALVE ASSY, MIXTURE CONTROL
17680-35010

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17680E - HOSE, AIR(FOR MIXTURE CONTROL VALVE)
17346-35010

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17700 - CLEANER ASSY, AIR
17700-35060

22R..RN38,48..USA

 1
17700-35080

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17700-35100

22R..RN38,48..USA

 1
17700-35101

22R..RN38,48..USA

 1
17700-35040

22R..RN3#,4#..MTM..(3QT,HLF)

CALIFORNIA SPEC

 1
17700-35081

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

20R,22R..RN3#,4#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06020

22R..RN3#,4#

L=62,S=12.5&25

 1
17700T - BOLT, STUD(FOR AIR CLEANER)
90116-08033

20R,22R..RN3#,4#

L=26,S=8&13.5

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35040

22R..RN38,48..USA

 1
17705-35060

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17705-35030

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17705-35070

22R..RN38,48..USA

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090

20R,22R..RN3#,4#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-89102

22R..RN3#,4#

 1
17841 - GASKET, FILTER ELEMENT
17841-41050

20R,22R..RN3#,4#

 2
17841 - GASKET, FILTER ELEMENT
17841-41050

20R,22R..RN3#,4#

 2
17845 - GASKET, AIR CLEANER CAP
17845-35010

22R..RN3#,4#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

22R..RN3#,4#

 1
17853 - INSULATOR, AIR CLEANER BRACKET
17853-38010

20R,22R..RN3#,4#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37030

22R..RN3#,4#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-89105

22R..RN3#,4#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01017

22R..RN3#,4#

AIR CLEANER SIDE

 1
96111-10710

22R..RN3#,4#

CONNECTOR SIDE

 1
96111-10690

22R..RN38,48

CONNECTOR SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01017

22R..RN3#,4#

AIR CLEANER SIDE

 1
96111-10710

22R..RN3#,4#

CONNECTOR SIDE

 1
96111-10690

22R..RN38,48

CONNECTOR SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-89103

22R..RN3#,4#

 1
Common parts
90179-08146
90339-03005
90339-19002
91651-40614
94612-10800
Linked diagrams
1709

(8101- )L

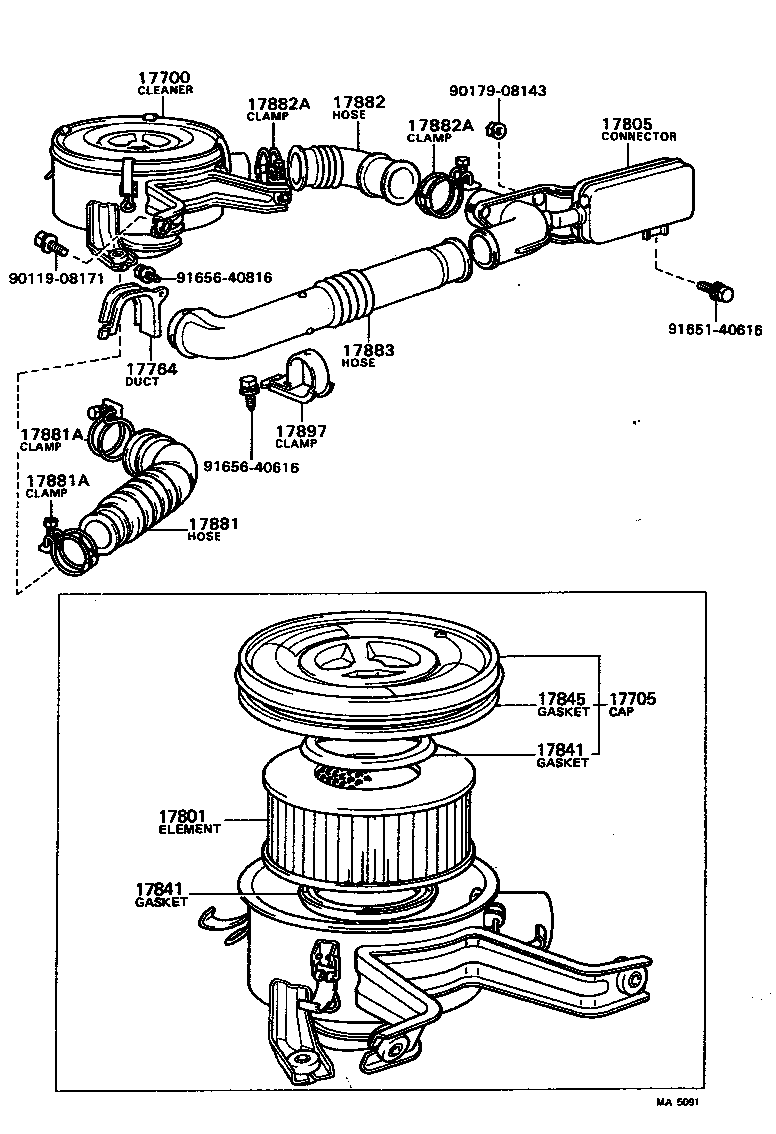

Click highlighted areas on diagram

diagram 17700 17705 17764 17801 17805 17841 17841 17845 17881 17881A 17881A 17882 17882A 17882A 17883 17897 9011908171 9017908143 9165140616 9165640616 9165640816
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-35060

22R..RN38,48..USA

 1
17700-35080

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17700-35100

22R..RN38,48..USA

 1
17700-35101

22R..RN38,48..USA

 1
17700-35040

22R..RN3#,4#..MTM..(3QT,HLF)

CALIFORNIA SPEC

 1
17700-35081

22R..RN3#,4#..MTM..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35040

22R..RN38,48..USA

 1
17705-35060

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17705-35030

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
17705-35070

22R..RN38,48..USA

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-41090

20R,22R..RN3#,4#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-89102

22R..RN3#,4#

 1
17841 - GASKET, FILTER ELEMENT
17841-41050

20R,22R..RN3#,4#

 2
17841 - GASKET, FILTER ELEMENT
17841-41050

20R,22R..RN3#,4#

 2
17845 - GASKET, AIR CLEANER CAP
17845-35010

22R..RN3#,4#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-37030

22R..RN3#,4#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-89105

22R..RN3#,4#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01017

22R..RN3#,4#

AIR CLEANER SIDE

 1
96111-10710

22R..RN3#,4#

CONNECTOR SIDE

 1
96111-10690

22R..RN38,48

CONNECTOR SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-01017

22R..RN3#,4#

AIR CLEANER SIDE

 1
96111-10710

22R..RN3#,4#

CONNECTOR SIDE

 1
96111-10690

22R..RN38,48

CONNECTOR SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-89103

22R..RN3#,4#

 1
Common parts
90119-08171
90179-08143
91651-40616
91656-40616
91656-40816
