RN48L-KDK (1980)
Toyota Pickup
(8008- )RN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

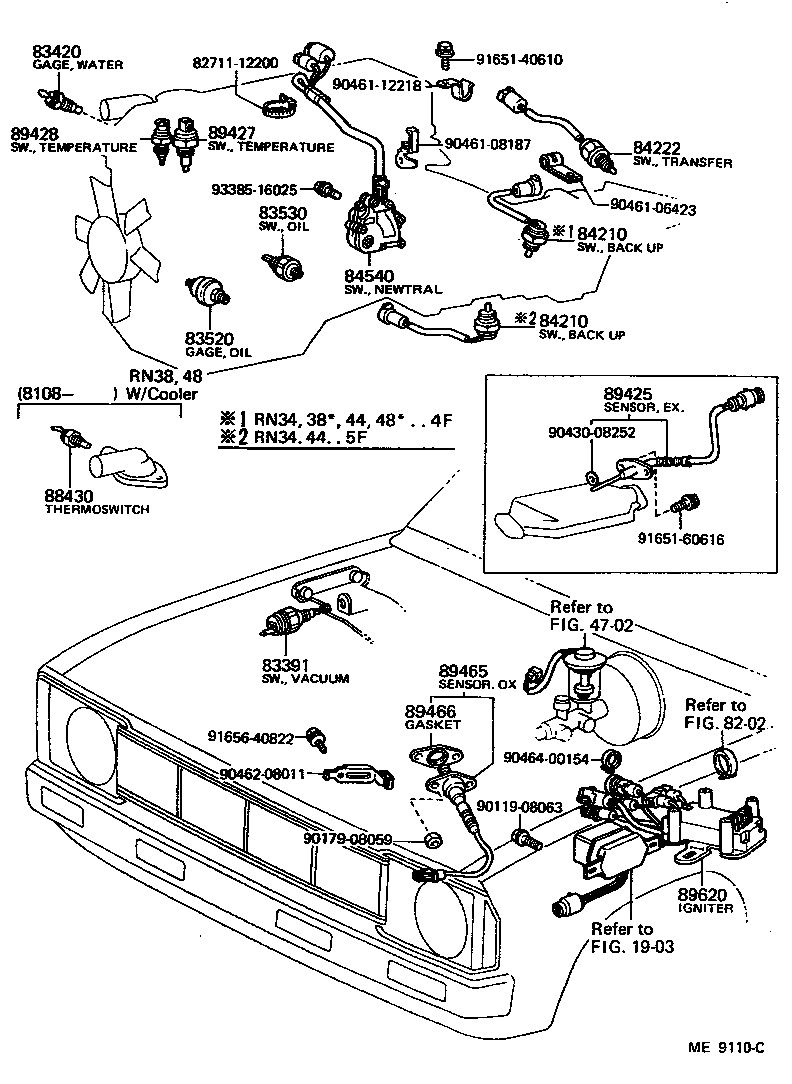

| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
LN40,RN37,47..DLX;RN32,34,38,42,44,48 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10071 |
LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
1 | ||
| 84210-26010 |
RN3#,4#..4F |
1 | ||
| 84210-10071 |
RN38,48 |
1 | ||
| 84210-35020 |
RN38,48 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10071 |
LN40,RN38,48;RN44..3QT,HVY;RN34,44..4F..HLF |
1 | ||
| 84210-26010 |
RN3#,4#..4F |
1 | ||
| 84210-10071 |
RN38,48 |
1 | ||
| 84210-35020 |
RN38,48 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35012 |
RN38,48 |
1 | ||
| 88430 - THERMOSWITCH ASSY, AIR CONDITIONER | ||||
| 88430-96440 |
RN38,48..CND |
1 | ||
| 88430-96440 |
RN38,48 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20050 |
RN3#,4# MARK=50B |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-35112 |
RN3#,4# |
1 | ||
| 89620-35110 |
RN3#,4# |
1 | ||
| 89620-35111 |
RN3#,4# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08063 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 90461-06423 | ||||
| 90461-08187 | ||||
| 90461-12218 | ||||
| 90462-08011 | ||||
| 90464-00154 | ||||
| 91651-40610 | ||||
| 91651-60616 | ||||
| 91656-40822 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 4702 | ||||
| 8202 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

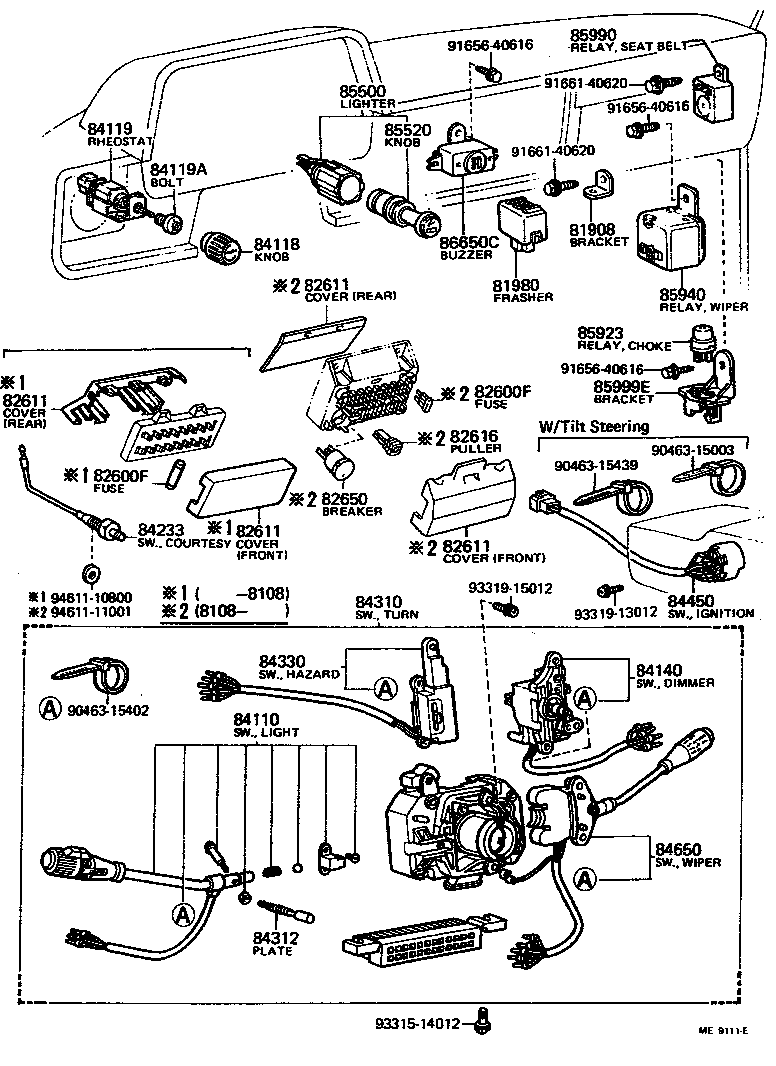

| 81908 - BRACKET SUB-ASSY, FLASHER | ||||
| 85999-89101 |
LN40,RN3#,4# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
LN40,RN3#,4# |
1 | ||
| 81980-22070 |
LN40,RN3#,4# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
LN40,RN3#,4# 15A,15A |
8 | ||
| 99118-62910 |
LN40,RN3#,4# 10A |
6 | ||
| 90982-09002 |
LN40,RN3#,4# 10A,10A |
1 | ||
| 99118-62005 |
LN40,RN3#,4# 5A |
2 | ||
| 90982-09004 |
LN40,RN3#,4# 20A,YELLOW,20A |
2 | ||
| 99118-62915 |
LN40,RN3#,4# 15A,15A |
5 | ||
| 90982-09005 |
LN40,RN3#,4# 7.5A,7.5A |
4 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
LN40,RN3#,4# 15A,15A |
8 | ||
| 99118-62910 |
LN40,RN3#,4# 10A |
6 | ||
| 90982-09002 |
LN40,RN3#,4# 10A,10A |
1 | ||
| 99118-62005 |
LN40,RN3#,4# 5A |
2 | ||
| 90982-09004 |
LN40,RN3#,4# 20A,YELLOW,20A |
2 | ||
| 99118-62915 |
LN40,RN3#,4# 15A,15A |
5 | ||
| 90982-09005 |
LN40,RN3#,4# 7.5A,7.5A |
4 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89105 |
LN40,RN3#,4# RR |
1 | ||
| 82611-89106 |
LN40,RN3#,4# FR |
1 | ||
| 82611-89108 |
LN40,RN3#,4# FR |
1 | ||
| 82611-89109 |
LN40,RN3#,4# RR |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89105 |
LN40,RN3#,4# RR |
1 | ||
| 82611-89106 |
LN40,RN3#,4# FR |
1 | ||
| 82611-89108 |
LN40,RN3#,4# FR |
1 | ||
| 82611-89109 |
LN40,RN3#,4# RR |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89105 |
LN40,RN3#,4# RR |
1 | ||
| 82611-89106 |
LN40,RN3#,4# FR |
1 | ||
| 82611-89108 |
LN40,RN3#,4# FR |
1 | ||
| 82611-89109 |
LN40,RN3#,4# RR |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-89105 |
LN40,RN3#,4# RR |
1 | ||
| 82611-89106 |
LN40,RN3#,4# FR |
1 | ||
| 82611-89108 |
LN40,RN3#,4# FR |
1 | ||
| 82611-89109 |
LN40,RN3#,4# RR |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LN40,RN3#,4# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-35010 |
LN40,RN3#,4# 20A |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19086 |
LN40,RN3#,4# |
1 | ||
| 84112-39036 |
RN38,48;RN44..HVY;RN34,44..SR5 W/TILT STEERING & *IW |
1 | ||
| 84112-39145 |
LN40,RN3#,4# |
1 | ||
| 84112-19265 |
RN38,48;RN44..HVY;LN40,RN34,44..SR5 W/TILT STEERING |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12030 |
LN40,RN3#,4# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-89102 |
LN40,RN3#,4# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01007 |
RN38,48 |
1 | ||
| 90984-01013 |
RN32,37,38,42,47,48 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19025 |
LN40,RN3#,4# |
1 | ||
| 84140-39065 |
LN40,RN3#,4# |
1 | ||
| 84140-19055 |
RN38,48;RN44..HVY;LN40,RN34,44..SR5 W/TILT STEERING |
1 | ||
| 84140-39015 |
RN38,48;RN44..HVY;RN34,44..SR5 W/TILT STEERING & *IW |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20060 |
LN40,RN3#,4# |
2 | ||
| 84230-89102 |
LN40,RN3#,4# |
2 | ||
| 84230-20040 |
LN40,RN3#,4# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10231 |
LN40,RN3#,4# |
1 | ||
| 84310-35150 |
LN40,RN3#,4#..DLX,STD |
1 | ||
| 84310-35112 |
RN38,48;RN44..HVY;RN34,44..SR5 W/TILT STEERING & *IW |
1 | ||
| 84310-35170 |
RN38,48;RN44..HVY;LN40,RN34,44..SR5 W/TILT STEERING |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LN40,RN3#,4# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39035 |
RN38,48;RN44..HVY;RN34,44..SR5 W/TILT STEERING & *IW |
1 | ||
| 84332-39105 |
RN38,48;RN44..HVY;LN40,RN34,44..SR5 W/TILT STEERING |
1 | ||
| 84332-19025 |
LN40,RN3#,4# |
1 | ||
| 84332-39125 |
LN40,RN3#,4# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
LN40,RN3#,4# |
1 | ||
| 84450-22090 |
RN38,48;RN44..HVY;LN40,RN34,44..SR5 W/TILT STEERING |
1 | ||
| 84450-35050 |
LN40,RN3#,4# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39175 |
LN40,RN3#,4#..DLX,STD |
1 | ||
| 84652-19156 |
LN40,RN3#,4# |
1 | ||
| 84652-39017 |
RN38,48;RN44..HVY;RN34,44..SR5 W/TILT STEERING & *IW |
1 | ||
| 84652-69285 |
RN38,48;RN44..HVY;LN40,RN34,44..SR5 W/TILT STEERING |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30340 |
LN40,RN3#,4# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30151 |
LN40,RN3#,4# |
1 | ||
| 85923 - RELAY, CHOKE CONTROL | ||||
| 90987-03001 |
RN3#,4# |
1 | ||
| 90987-03001 |
RN3#,4#..3FC,4F,5F |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-89101 |
LN40,RN3#,4# |
1 | ||
| 85991-20020 |
LN40,RN3#,4# |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-12050 |
RN3#,4# |
1 | ||
| Common parts | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 90463-15439 | ||||
| 91656-40616 | ||||
| 91661-40620 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 94611-10800 | ||||
| 94611-11001 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

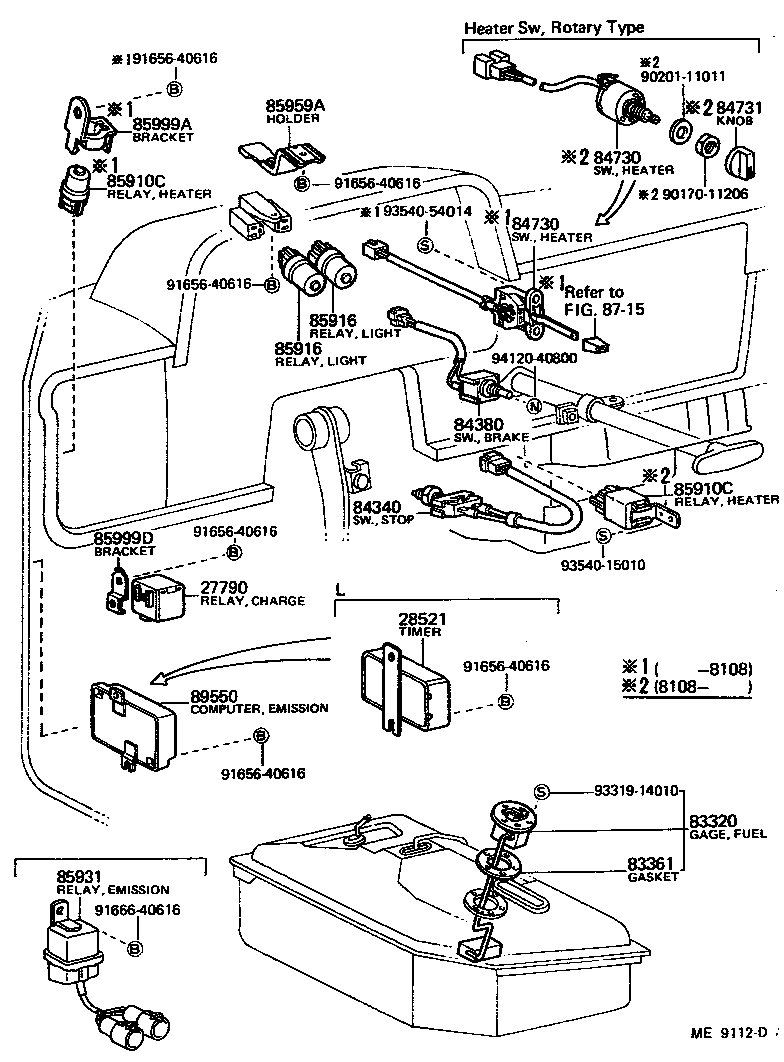

| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-35010 |
L,22R..LN40,RN3#,4# |
1 | ||
| 27790-35010 |
22R..RN3#,4# |
1 | ||
| 27790-35010 |
L,22R..LN40,RN3#,4#..3FC,4F,5F |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39315 |
LN40,RN4# |
1 | ||
| 83320-39195 |
LN40,RN4#..3FC,4F,5F |
1 | ||
| 83320-39316 |
LN40,RN4# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LN40,RN3#,4# |
1 | ||
| 77169-14020 |
LN40,RN3#,4# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
LN40,RN3#,4# TOKAIRIKA |
1 | ||
| 84340-36030 |
LN40,RN3#,4# MATSUSHITA |
1 | ||
| 84340-22071 |
LN40,RN3#,4# TOKAIRIKA |
1 | ||
| 84340-22060 |
LN40,RN3#,4# MATSUSHITA |
1 | ||
| 84340-22072 |
LN40,RN3#,4# W/O CRUISE CONTROL |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-35010 |
LN40,RN3#,4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89107 |
RN38,48;LN40,RN34,44..USA W/COOLER |
1 | ||
| 84732-89105 |
LN40,RN3#,4# |
1 | ||
| 84732-89106 |
LN40,RN3#,4# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89107 |
RN38,48;LN40,RN34,44..USA W/COOLER |
1 | ||
| 84732-89105 |
LN40,RN3#,4# |
1 | ||
| 84732-89106 |
LN40,RN3#,4# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
LN40,RN3#,4# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-12010 |
LN40,RN3#,4# |
1 | ||
| 90987-02004 |
LN40,RN3#,4# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-12010 |
LN40,RN3#,4# |
1 | ||
| 90987-02004 |
LN40,RN3#,4# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LN40,RN3#,4# |
2 | ||
| 90987-01003 |
RN38,48 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
LN40,RN3#,4# |
2 | ||
| 90987-01003 |
RN38,48 |
2 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85931-16010 |
RN3#,4# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
LN40,RN3#,4# |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-22070 |
RN3#,4# CHARGE LAMP RELAY |
1 | ||
| 85999-22070 |
LN40,RN3#,4#..3FC,4F,5F CHARGE LAMP RELAY |
1 | ||
| 85999-22070 |
LN40,RN3#,4# CHARGE LAMP RELAY |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-35230 |
RN38,48..CND |
1 | ||
| Common parts | ||||
| 90170-11206 | ||||
| 90201-11011 | ||||
| 91656-40616 | ||||
| 91666-40616 | ||||
| 93319-14010 | ||||
| 93540-15010 | ||||
| 93540-54014 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 8715 | ||||
