RN47L-KDA3 (1979)

Toyota Pickup

Production Jan 1979 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )RN37,38,47,48

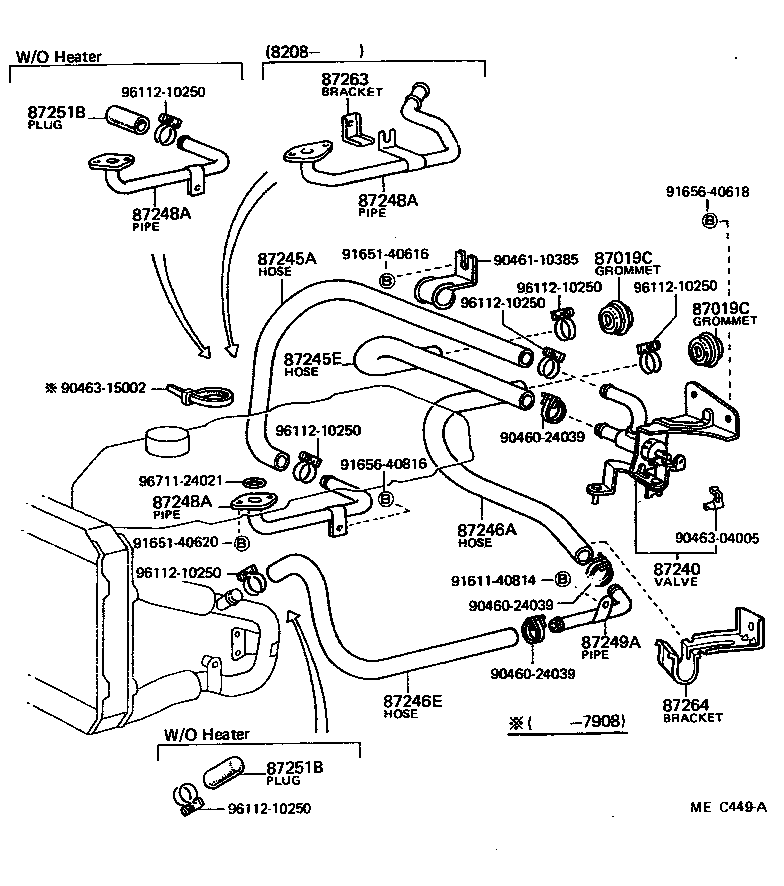

Click highlighted areas on diagram

diagram 87019C 87019C 87240 87245A 87245E 87246A 87246E 87248A 87248A 87248A 87249A 87251B 87251B 87263 87264 9046024039 9046024039 9046024039 9046110385 9046304005 9046315002 9161140814 9165140616 9165140620 9165640618 9165640816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9671124021
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

LN40,RN3#,4#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

LN40,RN3#,4#

 2
87240 - VALVE ASSY, HEATER WATER
87240-89111

LN40,RN3#,4#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89122

LN40,RN3#,4#

 1
87251B - PLUG, HEATER WATER
90339-16007

RN3#,4#..USA

W/BOOST VENTILATOR

 2
87251B - PLUG, HEATER WATER
90339-16007

RN3#,4#..USA

W/BOOST VENTILATOR

 2
Common parts
90460-24039
90461-10385
90463-04005
90463-15002
91611-40814
91651-40616
91651-40620
91656-40618
91656-40816
96112-10250
96711-24021
