RN47L-KDA3 (1979)

Toyota Pickup

Production Jan 1979 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )RN37,38,47,48

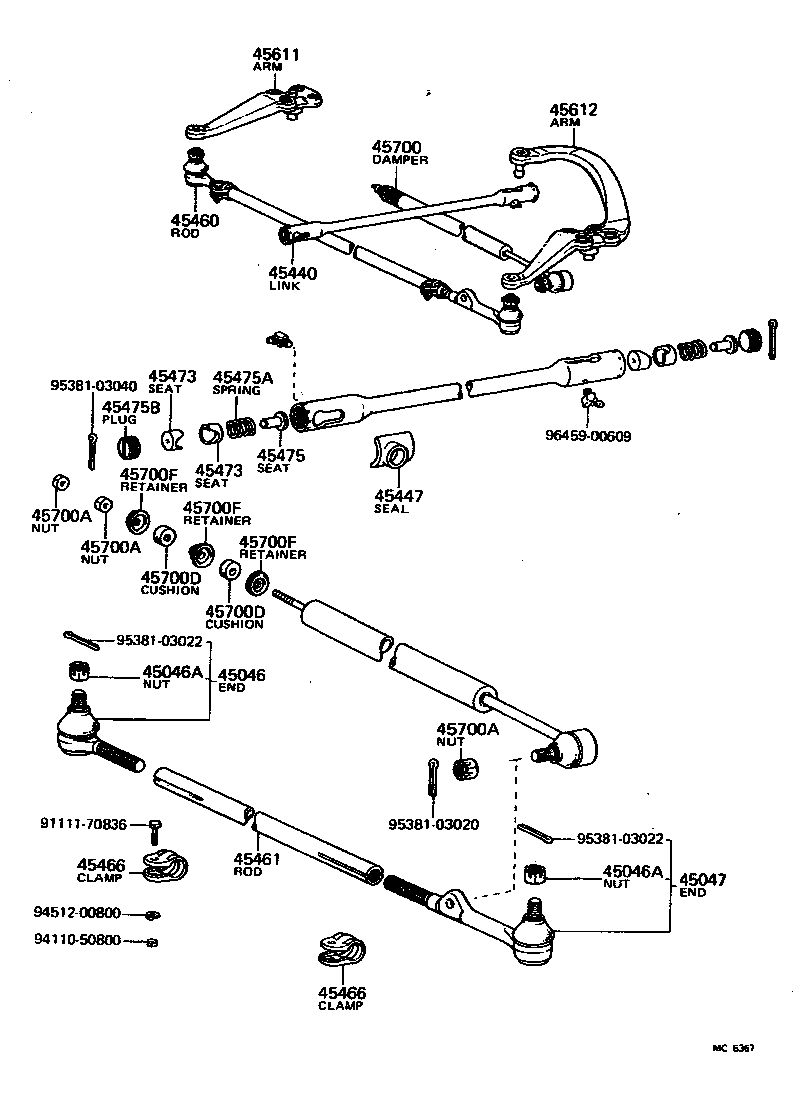

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45440 45447 45460 45461 45466 45466 45473 45473 45475 45475A 45475B 45611 45612 45700 45700A 45700A 45700A 45700D 45700D 45700F 45700F 45700F 9111170836 9411050800 9451200800 9538103020 9538103022 9538103022 9538103040 9645900609
Part # Description Qty Price
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN40,RN3#,4#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN40,RN3#,4#

 2
45466 - CLAMP, TIE ROD END
45466-30020

LN40,RN3#,4#

 4
45466 - CLAMP, TIE ROD END
45466-30020

LN40,RN3#,4#

 4
Common parts
91111-70836
94110-50800
94512-00800
95381-03020
95381-03022
95381-03040
96459-00609
