RN47L-KDA (1979)

Toyota Pickup

Production Jan 1979 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )RN37,38,47,48

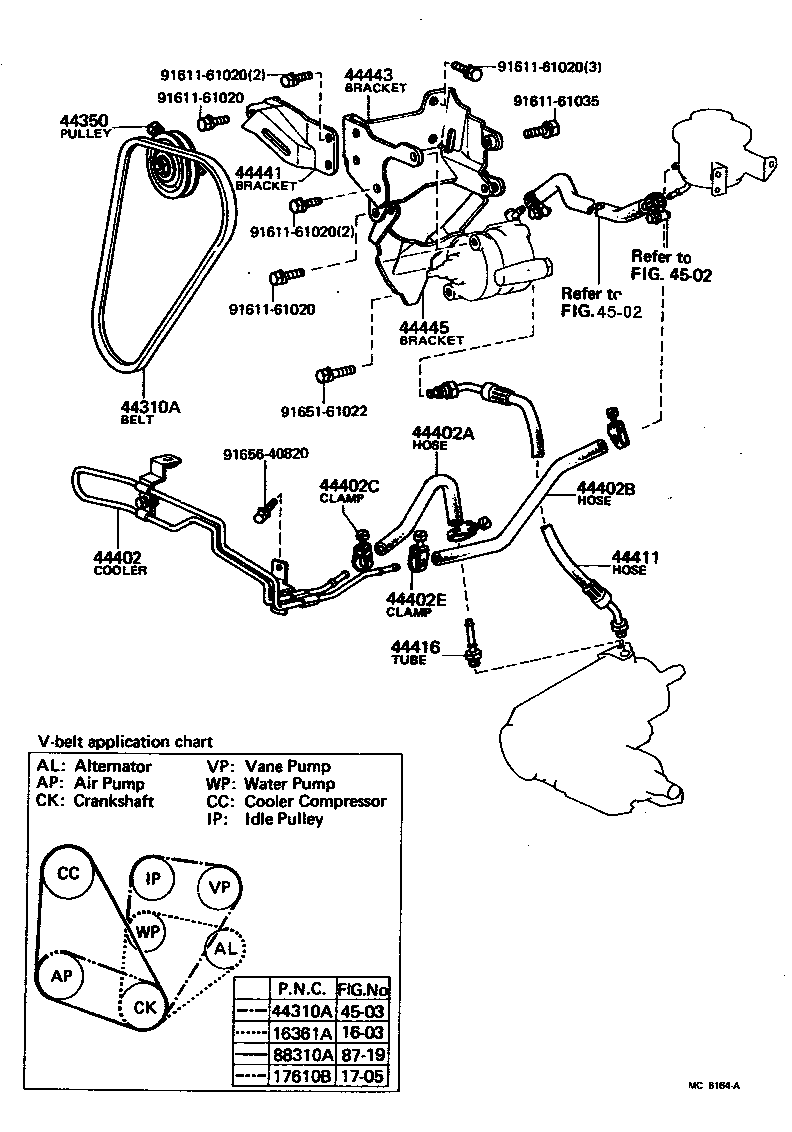

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 44310A 44310A 44350 44402 44402A 44402B 44402C 44402E 44411 44416 44441 44443 44445 4502 4502 4503 8719 88310A 9161161020 9161161020 9161161020 9161161020 9161161020 9161161035 9165161022 9165640820
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

20R..RN3#,4#

L=880

 1
Common parts
91611-61020
91611-61035
91651-61022
91656-40820
Linked diagrams
1603
1705
4502
4503
8719
