RN44L-PSA3 (1980)
Toyota Pickup
Production
Aug 1980
-
Jul 1983
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

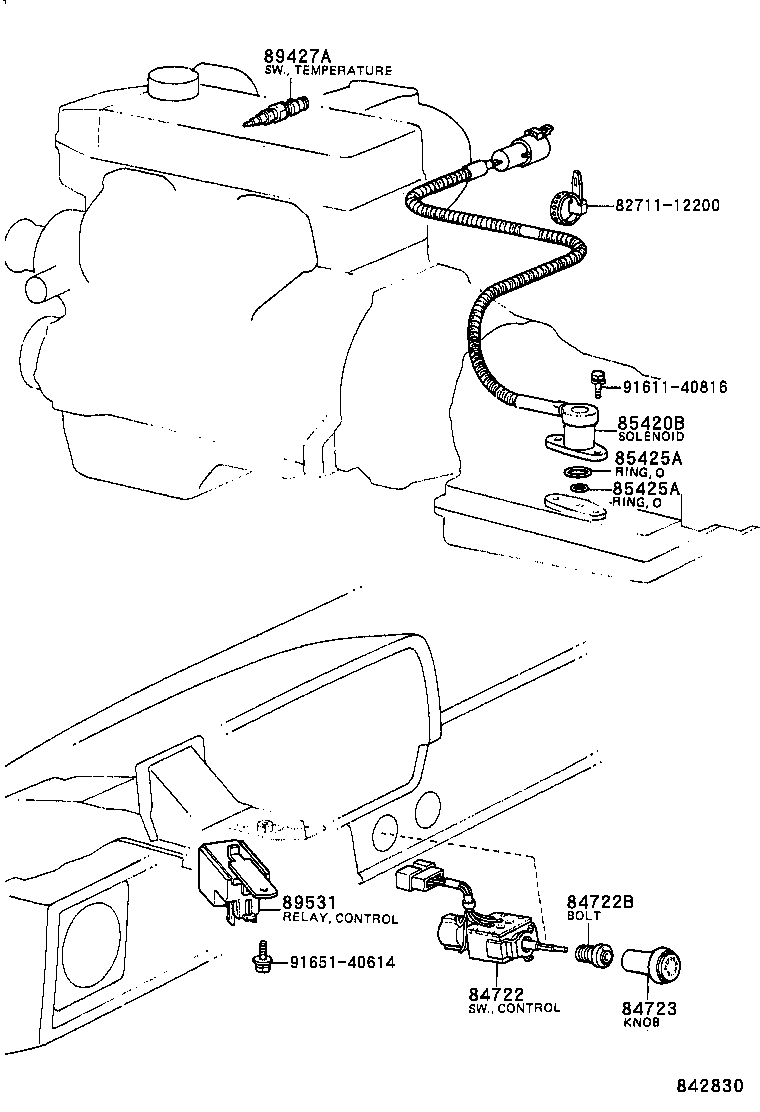

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-14040 |
RN34,44..4FC |
1 | ||
| 84722B - BOLT, TRANSMISSION CONTROL SWITCH | ||||
| 90984-01007 |
RN34,44..4FC |
1 | ||
| 84723 - KNOB, TRANSMISSION CONTROL SWITCH | ||||
| 84723-14020 |
RN34,44..4FC |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-20050 |
RN34,44..4FC |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-23001 |
RN34,44..4FC ID=23 |
1 | ||
| 90301-11001 |
RN34,44..4FC ID=11 |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-23001 |
RN34,44..4FC ID=23 |
1 | ||
| 90301-11001 |
RN34,44..4FC ID=11 |
1 | ||
| 89427A - SWITCH, TEMPERATURE | ||||
| 89428-20050 |
RN34,44..4FC FEDERAL SPEC & KANADA SPEC |
1 | ||
| 89428-20050 |
RN44..4FC..SR5 FEDERAL SPEC |
1 | ||
| 89428-20050 |
RN44..4FC FEDERAL SPEC |
1 | ||
| 89531 - RELAY, TRANSMISSION CONTROL | ||||
| 89531-30030 |
RN34,44..4FC |
1 | ||
| 89531-35010 |
RN34,44..4FC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 91611-40816 | ||||
| 91651-40614 | ||||
