RN44L-PDK (1981)

Toyota Pickup

Production Aug 1981 - Jul 1983
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

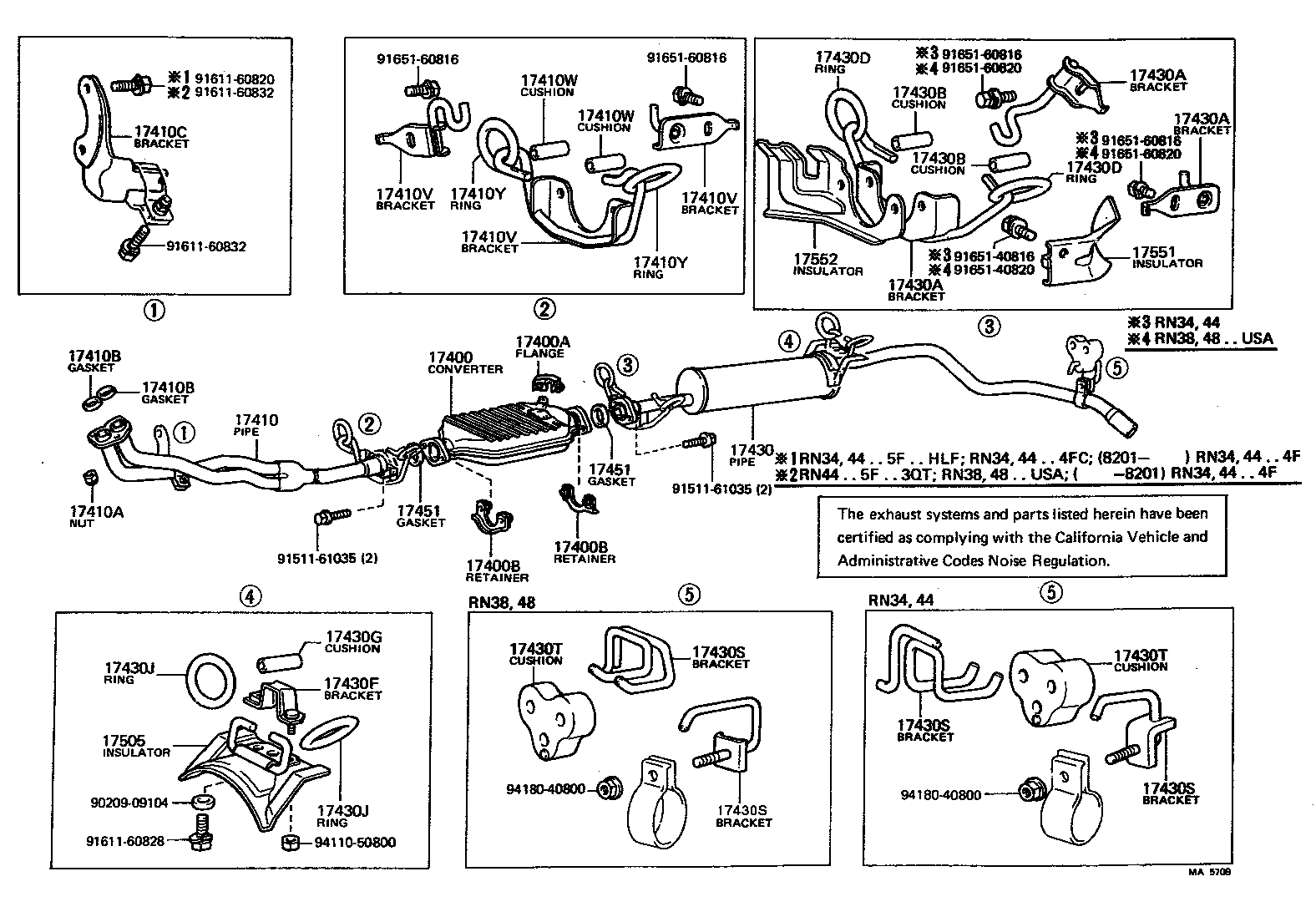

(8108-8208)22R..RN38,48..USA ; (8108-8208)22R..RN34,44..3QT,HLF

Click highlighted areas on diagram

diagram 17400 17400A 17400B 17400B 17410 17410A 17410B 17410B 17410C 17410V 17410V 17410V 17410W 17410W 17410Y 17410Y 17430 17430A 17430A 17430A 17430B 17430B 17430D 17430D 17430F 17430G 17430J 17430J 17430S 17430S 17430S 17430S 17430T 17430T 17451 17451 17505 17551 17552 9020909104 9151161035 9151161035 9161160820 9161160828 9161160832 9161160832 9165140816 9165140820 9165160816 9165160816 9165160816 9165160816 9165160820 9165160820 9411050800 9418040800 9418040800
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-35010

22R..RN34,44..3QT,HLF

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35100

22R..RN34,44..3QT,HLF

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

L,20R,22R..LN40,RN3#,4#

 3
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-38090

22R..RN34,44..4FC

 1
17571-38090

22R..RN34,44..4F

 1
17571-38090

22R..RN34,44

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

L,20R,22R..LN40,RN3#,4#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

L,20R,22R..LN40,RN3#,4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06023

22R..RN34,44..3QT,HLF

RR

 1
90917-06012

22R..RN34,44..3QT,HLF

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06023

22R..RN34,44..3QT,HLF

RR

 1
90917-06012

22R..RN34,44..3QT,HLF

FR

 1
17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2
17552-38030

22R..RN34,44..3QT,HLF

CALIFORNIA SPEC

 1
Common parts
90209-09104
91511-61035
91611-60820
91611-60828
91611-60832
91651-40816
91651-40820
91651-60816
91651-60820
94110-50800
94180-40800

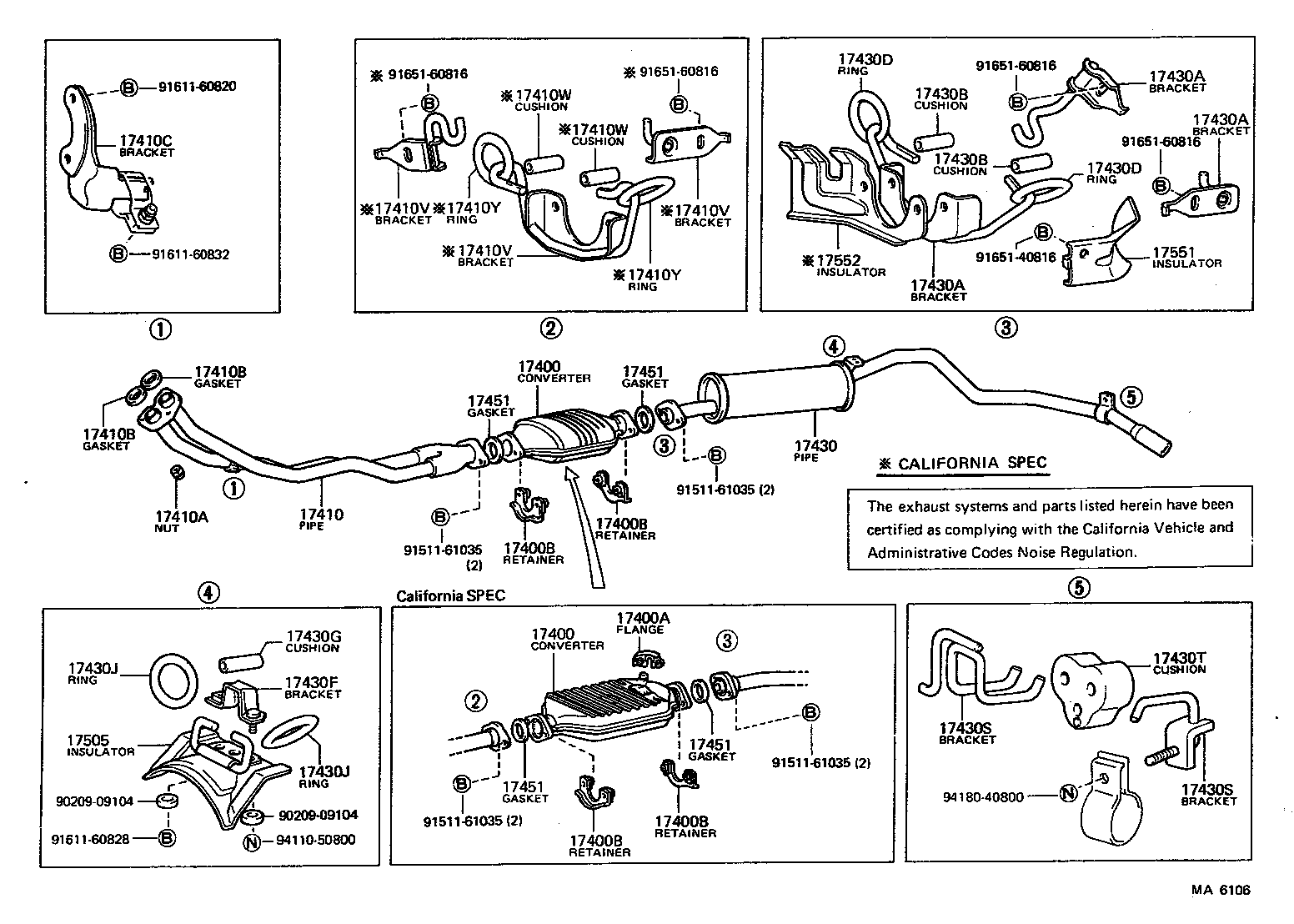

(8208- )22R..RN34,44..3QT,HLF

Click highlighted areas on diagram

diagram 17400 17400 17400A 17400B 17400B 17400B 17400B 17410 17410A 17410B 17410B 17410C 17410V 17410V 17410V 17410W 17410W 17410Y 17410Y 17430 17430A 17430A 17430A 17430B 17430B 17430D 17430D 17430F 17430G 17430J 17430J 17430S 17430S 17430T 17451 17451 17451 17451 17505 17551 17552 9020909104 9020909104 9151161035 9151161035 9151161035 9151161035 9161160820 9161160828 9161160832 9165140816 9165160816 9165160816 9165160816 9165160816 9411050800 9418040800
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-35010

22R..RN34,44..3QT,HLF

 1
17400 - CONVERTER ASSY, W/CATALYST
18450-35010

22R..RN34,44..3QT,HLF

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35100

22R..RN34,44..3QT,HLF

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

L,20R,22R..LN40,RN3#,4#

 3
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-38090

22R..RN34,44..4FC

 1
17571-38090

22R..RN34,44..4F

 1
17571-38090

22R..RN34,44

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

L,20R,22R..LN40,RN3#,4#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-33001

L,20R,22R..LN40,RN3#,4#

 2
17451 - GASKET, EXHAUST PIPE
90917-06023

22R..RN34,44..3QT,HLF

RR

 1
90917-06012

22R..RN34,44..3QT,HLF

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06023

22R..RN34,44..3QT,HLF

RR

 1
90917-06012

22R..RN34,44..3QT,HLF

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06023

22R..RN34,44..3QT,HLF

RR

 1
90917-06012

22R..RN34,44..3QT,HLF

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06023

22R..RN34,44..3QT,HLF

RR

 1
90917-06012

22R..RN34,44..3QT,HLF

FR

 1
17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2
17552-38030

22R..RN34,44..3QT,HLF

CALIFORNIA SPEC

 1
Common parts
90209-09104
91511-61035
91611-60820
91611-60828
91611-60832
91651-40816
91651-60816
94110-50800
94180-40800
