RN44L-MRHA3 (1981)

Toyota Pickup

Production Aug 1981 - Jul 1983
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )22R..RN34,44 ; (8208- )22R..RN38,48..USA

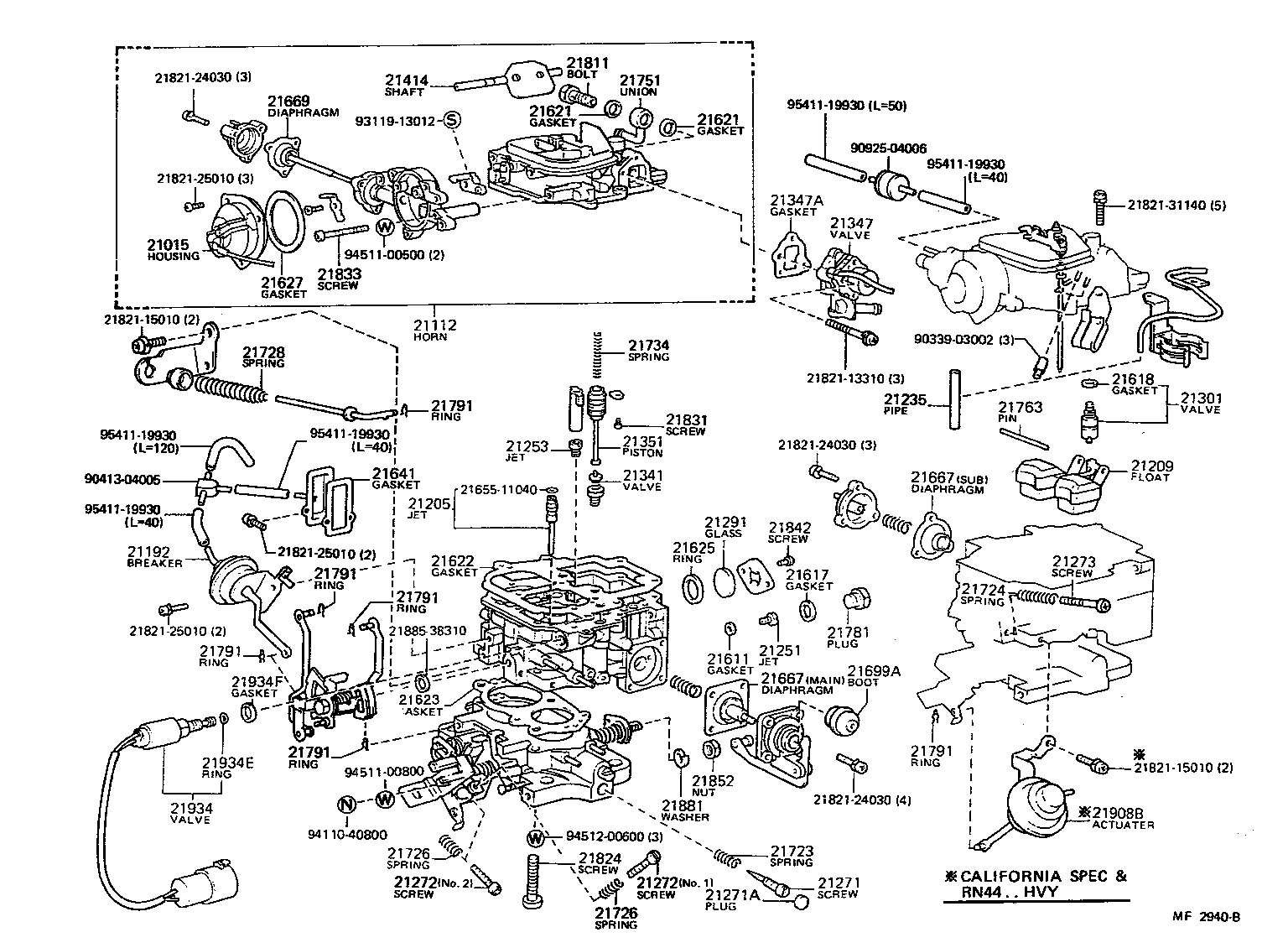

Click highlighted areas on diagram

diagram 21015 21112 21192 21205 21209 21235 21251 21253 21271 21271A 21272 21272 21273 21291 21301 21341 21347 21347A 21351 21414 21611 21617 21618 21621 21621 21622 21623 21625 21627 21641 2165511040 21667 21667 21669 21699A 21723 21724 21726 21726 21728 21734 21751 21763 21781 21791 21791 21791 21791 21791 21791 21811 2182113310 2182115010 2182115010 2182124030 2182124030 2182124030 2182125010 2182125010 2182125010 2182131140 21824 21831 21833 21842 21852 21881 2188538310 21908B 21934 21934E 21934F 9033903002 9041304005 9092504006 9311913012 9411040800 9451100500 9451100800 9451200600 9541119930 9541119930 9541119930 9541119930 9541119930
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-35210

22R..RN34,44

 1
21112 - HORN, AIR
21112-35070

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21112-35210

22R..RN34,44;22R..RN38,48..USA

 1
21112-35160

22R..RN34,44..3QT,HLF

 1
21192 - BREAKER
21192-35210

22R..RN3#,4#

 1
21205 - JET SUB-ASSY, SLOW
21205-35240

22R..RN3#,4#..3QT,HLF

 1
21205-35020

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21205-35210

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21235 - PIPE OR HOSE, CONNECTING
95411-19930

22R..RN34,44

*H,L=60

 1
21251 - JET, 1ST MAIN
90999-41109

22R..RN34,44..3QT,HLF

 1
90999-41119

22R..RN34,44..3QT,HLF

ID=1.19

 1
90999-41122

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
90999-41112

22R..RN3#,4#..(3QT,HLF)..USA

CALIFORNIA SPEC

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21844-33010

22R..RN3#,4#

NO.1

 1
21273-26370

22R..RN3#,4#

NO.2

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21844-33010

22R..RN3#,4#

NO.1

 1
21273-26370

22R..RN3#,4#

NO.2

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-35210

22R..RN3#,4#

 1
21291 - GLASS, LEVEL GAGE
21291-34320

20R,22R..RN3#,4#

 1
21414 - SHAFT, CHOKE
21054-35210

22R..RN3#,4#

 1
21611 - GASKET, MAIN JET
21611-22010

20R,22R..RN3#,4#

 2
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

20R,22R..RN3#,4#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

20R,22R..RN3#,4#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

20R,22R..RN3#,4#

 2
21625 - GASKET, LEVEL GAGE
21655-60200

20R,22R..RN3#,4#

 1
21627 - GASKET, COIL HOUSING
21627-28150

22R..RN3#,4#

 1
21669 - DIAPHRAGM
21669-37040

22R..RN3#,4#

 1
21728 - SPRING, THROTTLE VALVE RETURN
21864-31400

22R..RN3#,4#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

22R..RN3#,4#

 1
21781-30020

20R,22R..RN3#,4#

 2
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R,22R..RN3#,4#

 8
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R,22R..RN3#,4#

 8
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R,22R..RN3#,4#

 8
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R,22R..RN3#,4#

 8
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R,22R..RN3#,4#

 8
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

20R,22R..RN3#,4#

 8
21811 - BOLT, UNION NIPPLE
21811-11060

20R,22R..RN3#,4#

 1
21831 - SCREW, POWER PISTON STOP
21842-33010

20R,22R..RN3#,4#

 1
21821-15060

22R..RN3#,4#

 1
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21833-33010

22R..RN3#,4#

 2
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010

20R,22R..RN3#,4#

 2
21852 - NUT, THROTTLE LEVER SET
21852-30010

20R,22R..RN3#,4#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

20R,22R..RN3#,4#

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

20R,22R..RN3#,4#

 1
21934F - GASKET
21617-10010

20R,22R..RN3#,4#

 1
Common parts
21655-11040
21821-13310
21821-15010
21821-24030
21821-25010
21821-31140
21885-38310
90339-03002
90413-04005
90925-04006
93119-13012
94110-40800
94511-00500
94511-00800
94512-00600
95411-19930
