RN44L-KRK3W (1980)
Toyota Pickup
Production
Aug 1980
-
Jul 1983
Engine
22R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808-8108)LN40,RN32,34,42,44

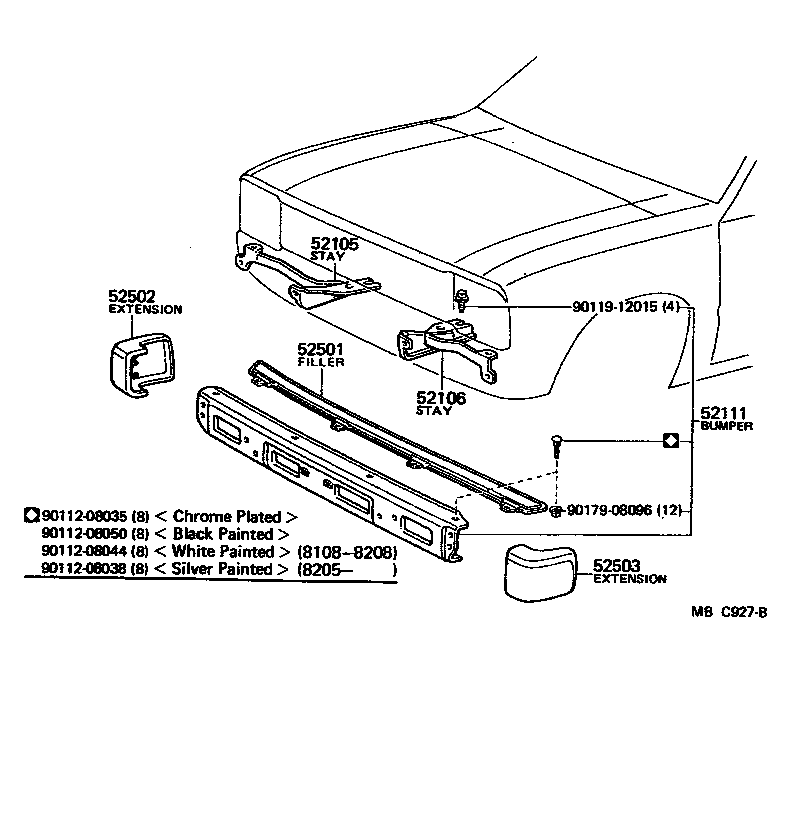

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-89102 |
LN40,RN32,34,42,44 |
1 | ||
| 52011-89104 |
LN40,RN34,44 |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-89104 |
LN40,RN34,44 |
1 | ||
| 52012-89102 |
LN40,RN32,34,42,44 |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52111-39405 |
RN34,44..STD SILVER |
1 | ||
| 52111-39225 |
RN34,44..STD WHITE |
1 | ||
| 52111-39295 |
RN34,44..STD WHITE |
1 | ||
| Common parts | ||||
| 90112-08035 | ||||
| 90112-08038 | ||||
| 90119-12015 | ||||
| 90179-08096 | ||||
(8108- )LN40,RN34,44
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-89102 |
LN40,RN32,34,42,44 |
1 | ||
| 52011-89104 |
LN40,RN34,44 |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-89104 |
LN40,RN34,44 |
1 | ||
| 52012-89102 |
LN40,RN32,34,42,44 |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52111-39405 |
RN34,44..STD SILVER |
1 | ||
| 52111-39225 |
RN34,44..STD WHITE |
1 | ||
| 52111-39295 |
RN34,44..STD WHITE |
1 | ||
| 52501 - FILLER SUB-ASSY, FRONT BUMPER | ||||
| 52501-89101 |
LN40,RN34,44 |
1 | ||
| 52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH | ||||
| 52102-89102 |
LN40,RN34,44 |
1 | ||
| 52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH | ||||
| 52103-89102 |
LN40,RN34,44 |
1 | ||
| Common parts | ||||
| 90112-08035 | ||||
| 90112-08038 | ||||
| 90112-08044 | ||||
| 90112-08050 | ||||
| 90119-12015 | ||||
| 90179-08096 | ||||
