RN44L-HDK (1980)

Toyota Pickup

Production Aug 1980 - Aug 1981
Engine 22R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)3FC

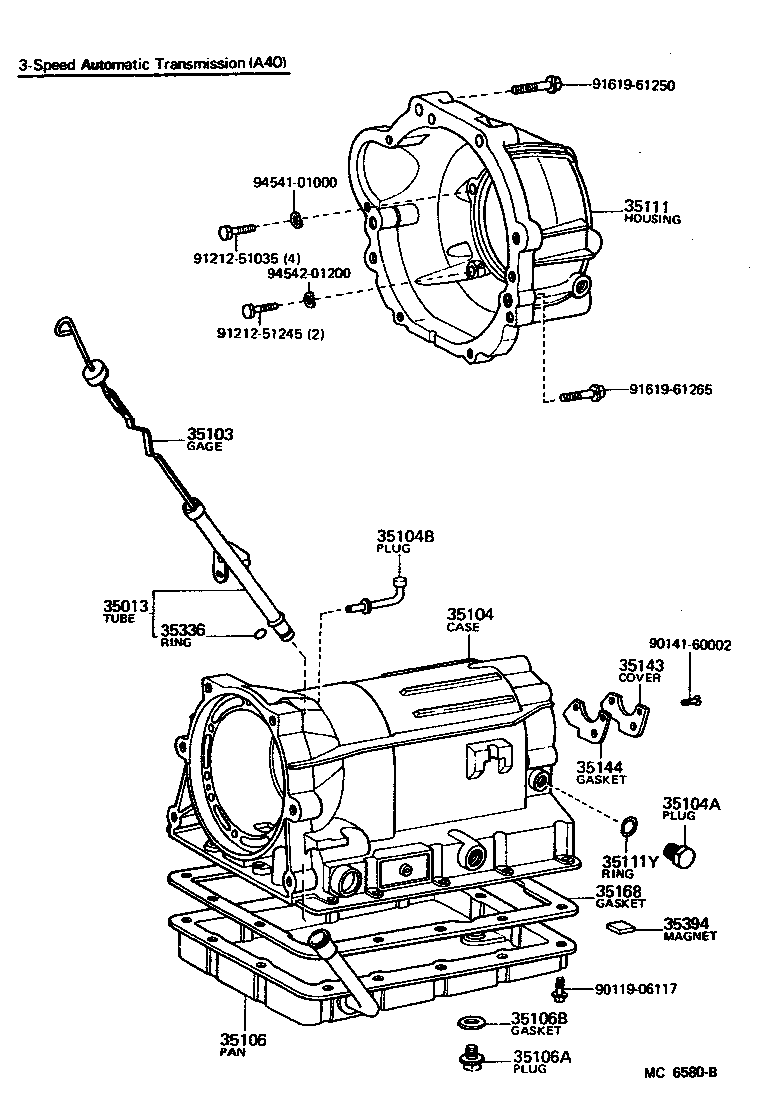

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111Y 35143 35144 35168 35336 35394 9011906117 9014160002 9121251035 9121251245 9161961250 9161961265 9454101000 9454201200
Part # Description Qty Price
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-35020

RN34,44..3FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-22024

RN34,44..3FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08079

RN32,34,42,44..ATM

L=7.54

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03061

RN32,34,42,44..3FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-14020

RN32,34,42,44..3FC

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-20061

RN32,34,42,44..3FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

RN32,34,42,44..ATM

 2
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

RN32,34,42,44..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

RN32,34,42,44..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

RN32,34,42,44..ATM

 1
Common parts
90119-06117
90141-60002
91212-51035
91212-51245
91619-61250
91619-61265
94541-01000
94542-01200
