RN44L-HDK (1980)

Toyota Pickup

Production Aug 1980 - Aug 1981
Engine 22R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8202)RN32,34,42,44..5F..HLF ; (8202-8208)3QT..CND ; (8202-8208)RN34,44..HLF,H

Click highlighted areas on diagram

diagram 3307 33143 33504F 33506F 33530F 33555 33556F 33556F 33599 9010908054 9010908092 9338116012
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3012001

RN32,34,42,44..ATM

BLACK,BLACK

 1
Common parts
90109-08054
90109-08092
93381-16012
Linked diagrams
3307

(8008- )ATM

Click highlighted areas on diagram

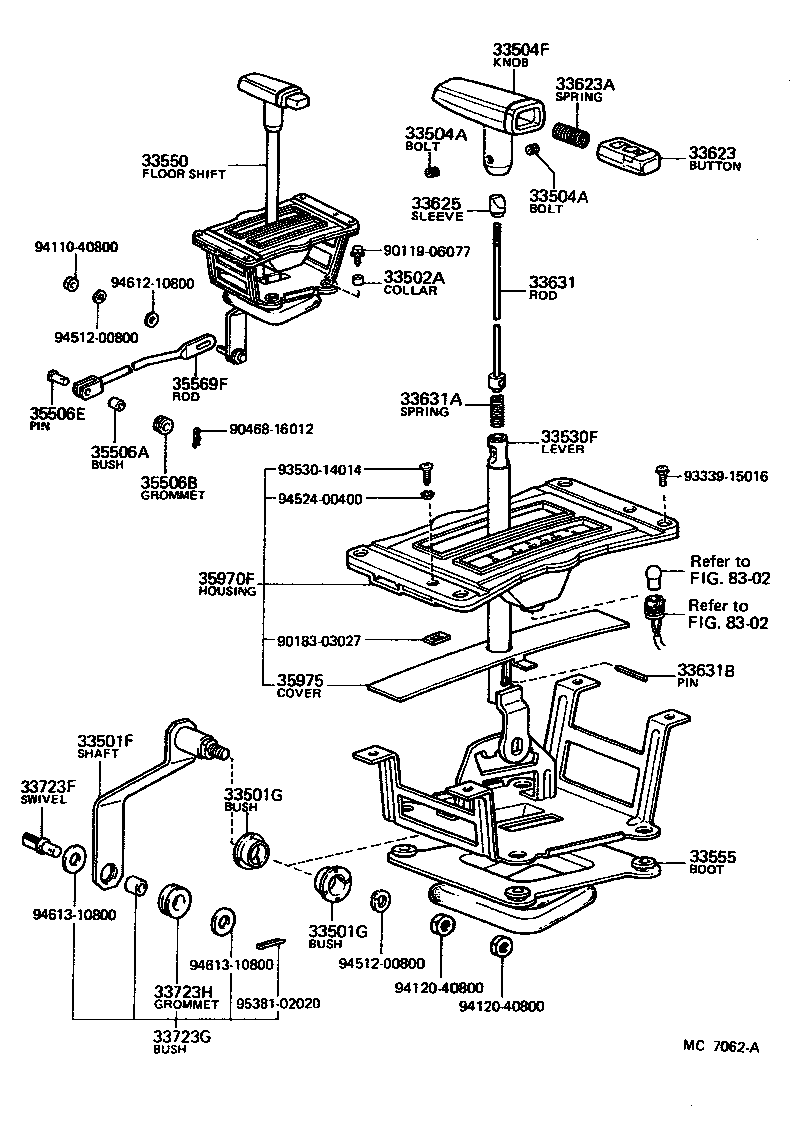

diagram 33501F 33501G 33501G 33502A 33504A 33504A 33504F 33530F 33550 33555 33623 33623A 33625 33631 33631A 33631B 33723F 33723G 33723H 35506A 35506B 35506E 35569F 35970F 35975 8302 8302 9011906077 9018303027 9046816012 9333915016 9353014014 9411040800 9412040800 9412040800 9451200800 9451200800 9452400400 9461210800 9461310800 9461310800 9538102020
Part # Description Qty Price
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-16045

RN32,34,42,44..ATM

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90385-16045

RN32,34,42,44..ATM

 2
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

RN32,34,42,44..ATM

OD=8.8

 4
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

RN32,34,42,44..ATM

 2
33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING)
90113-05034

RN32,34,42,44..ATM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3012001

RN32,34,42,44..ATM

BLACK,BLACK

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-35090

RN34,44..ATM

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-22020

RN32,34,42,44..ATM

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-09009

RN32,34,42,44..ATM

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-22020

RN32,34,42,44..ATM

 1
33631 - ROD, DETENT
33631-30050

RN32,34,42,44..ATM

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005

RN32,34,42,44..ATM

 1
33631B - PIN, SLOTTED SPRING (FOR DETENT ROD)
90254-04017

RN32,34,42,44..ATM

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

RN32,34,42,44..ATM

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90999-99017

RN32,34,42,44..ATM

 1
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177

RN32,34,42,44..ATM

 1
35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT)
90389-08005

RN32,34,42,44..ATM

 1
35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT)
90480-17177

RN32,34,42,44..ATM

 1
35506E - PIN, W/HOLE (FOR MANUAL VALVE LEVER)
90240-08120

RN32,34,42,44..ATM

 1
35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT)
33702-35030

RN34,44..3FC

 1
Common parts
90119-06077
90183-03027
90468-16012
93339-15016
93530-14014
94110-40800
94120-40800
94512-00800
94524-00400
94612-10800
94613-10800
95381-02020
Linked diagrams
8302
