RN44L-HDK (1980)

Toyota Pickup

Production Aug 1980 - Aug 1981
Engine 22R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8101- )L

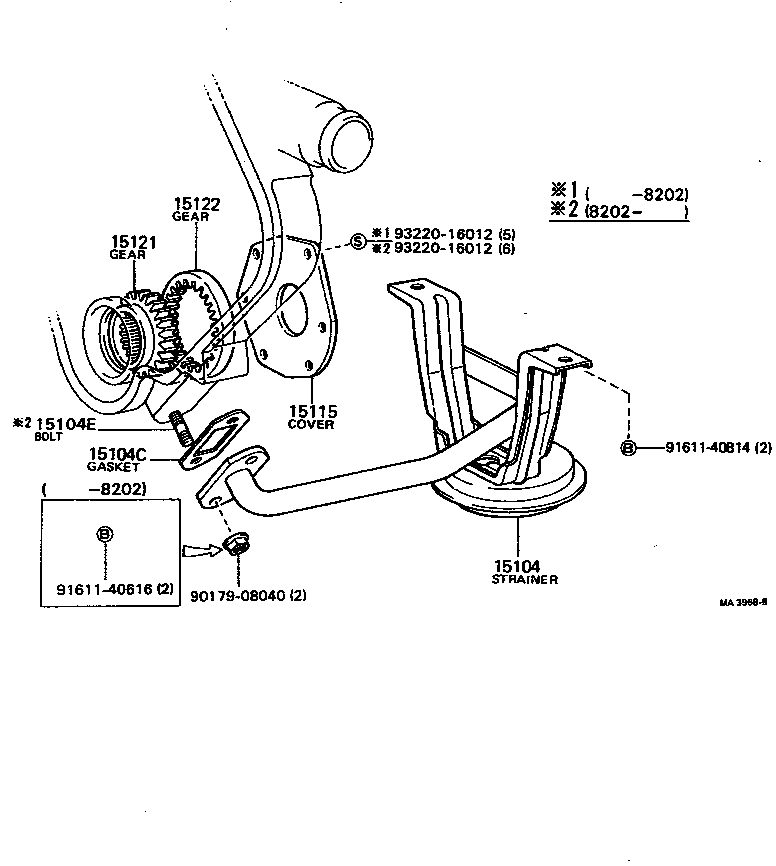

Click highlighted areas on diagram

diagram 15104 15104C 15104E 15115 15121 15122 9017908040 9161140616 9161140814 9322016012 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-38040

20R,22R..RN32,34,42,44

 1
15104C - GASKET(FOR OIL STRAINER)
15147-38020

20R,22R..RN3#,4#

 1
15115 - COVER, OIL PUMP
15115-38022

20R,22R..RN3#,4#

 1
15121 - GEAR, OIL PUMP DRIVE
15121-38020

20R,22R..RN3#,4#

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-38020

20R,22R..RN3#,4#

 1
Common parts
90179-08040
91611-40616
91611-40814
93220-16012
