RN42L-MSA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7902)

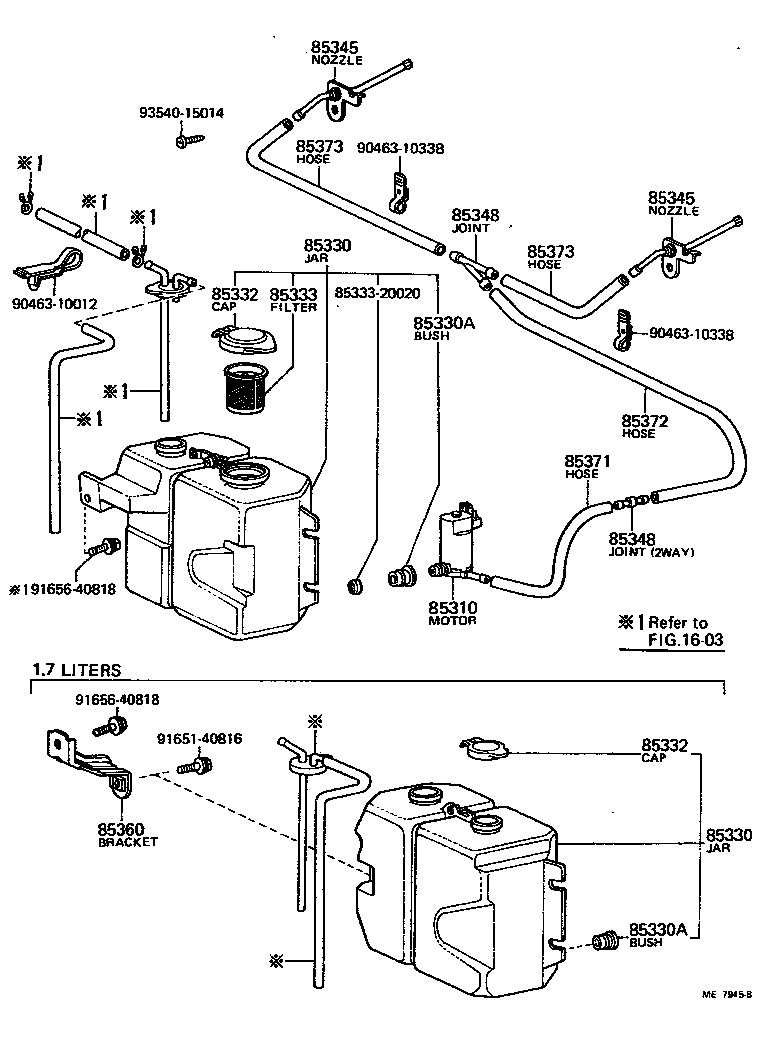

Click highlighted areas on diagram

diagram 1603 85310 85330 85330 85330A 85330A 85332 85332 85333 8533320020 85345 85345 85348 85348 85360 85371 85372 85373 85373 9046310012 9046310338 9046310338 9165140816 9165640818 9354015014
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20120

RN3#,42

2.5 LITERS

 1
85310-20100

RN3#,42..USA

1.7 LITERS

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89106

RN3#,42

2.5 LITERS

 1
85330-14012

RN3#,42..USA

1.7 LITERS

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89106

RN3#,42

2.5 LITERS

 1
85330-14012

RN3#,42..USA

1.7 LITERS

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RN3#,4#..USA

1.7 LITERS

 1
90099-32103

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RN3#,4#..USA

1.7 LITERS

 1
90099-32103

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20020

RN3#,4#..USA

1.7 LITERS

 1
85332-20060

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20020

RN3#,4#..USA

1.7 LITERS

 1
85332-20060

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

RN3#,4#

2.5 LITERS

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-89103

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 2
85341-89104

RN3#,4#..USA

1.7 LITERS

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-89103

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 2
85341-89104

RN3#,4#..USA

1.7 LITERS

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-89102

LN40,RN3#,4#

3WAY,2.1 LITERS,2.5 LITERS

 1
85355-87201

RN3#,4#..USA

2 WAY,1.7 LITERS

 2
85355-14010

RN3#,4#..USA

3WAY,1.7 LITERS

 1
85349-20010

LN40,RN3#,4#

2WAY,2.5 LITERS,2.1 LITERS

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-89102

LN40,RN3#,4#

3WAY,2.1 LITERS,2.5 LITERS

 1
85355-87201

RN3#,4#..USA

2 WAY,1.7 LITERS

 2
85355-14010

RN3#,4#..USA

3WAY,1.7 LITERS

 1
85349-20010

LN40,RN3#,4#

2WAY,2.5 LITERS,2.1 LITERS

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-14071

RN3#,4#..USA

1.7 LITERS

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33332

RN3#,4#

*H,L=400,2.5 LITERS

 1
90446-06013

RN3#,4#..USA

*H,L=400,1.7 LITERS

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33332

LN40,RN3#,4#

*H,L=700,2.5 LITERS,2.1 LITERS

 1
90099-33332

RN3#,4#..USA

*H,L=700,1.7 LITERS

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RN3#,4#..USA

*H,L=100,1.7 LITERS

 1
90446-06013

RN3#,4#..USA

*H,L=580,1.7 LITERS

 1
90099-33299

LN40,RN3#,4#

*H,L=100,2.5 LITERS,2.1 LITERS

 1
90099-33332

LN40,RN3#,4#

*H,L=550,2.5 LITERS,2.1 LITERS

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RN3#,4#..USA

*H,L=100,1.7 LITERS

 1
90446-06013

RN3#,4#..USA

*H,L=580,1.7 LITERS

 1
90099-33299

LN40,RN3#,4#

*H,L=100,2.5 LITERS,2.1 LITERS

 1
90099-33332

LN40,RN3#,4#

*H,L=550,2.5 LITERS,2.1 LITERS

 1
Common parts
85333-20020
90463-10012
90463-10338
91651-40816
91656-40818
93540-15014
Linked diagrams
1603

(7902- )RN3#,4#

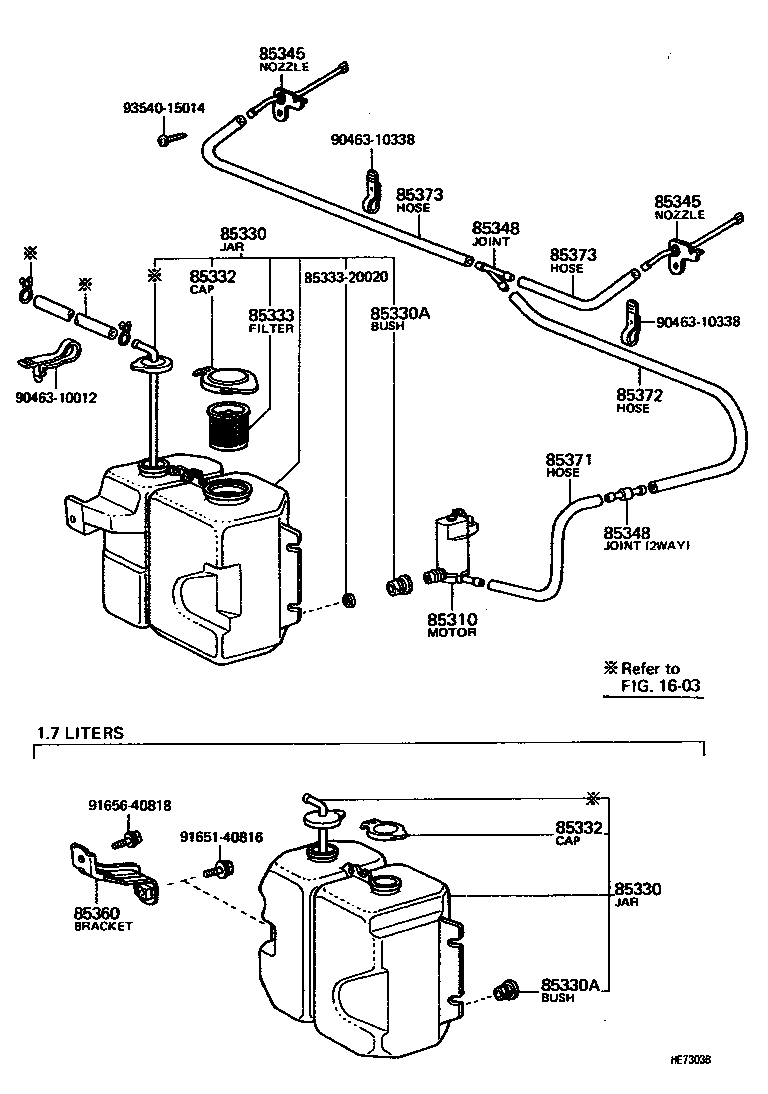

Click highlighted areas on diagram

diagram 1603 85310 85330 85330 85330A 85330A 85332 85332 85333 8533320020 85345 85345 85348 85348 85360 85371 85372 85373 85373 9046310012 9046310338 9046310338 9165140816 9165640818 9165640818 9354015014
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20120

RN3#,42

2.5 LITERS

 1
85310-20100

RN3#,42..USA

1.7 LITERS

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89106

RN3#,42

2.5 LITERS

 1
85330-14012

RN3#,42..USA

1.7 LITERS

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89106

RN3#,42

2.5 LITERS

 1
85330-14012

RN3#,42..USA

1.7 LITERS

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RN3#,4#..USA

1.7 LITERS

 1
90099-32103

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RN3#,4#..USA

1.7 LITERS

 1
90099-32103

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20020

RN3#,4#..USA

1.7 LITERS

 1
85332-20060

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-20020

RN3#,4#..USA

1.7 LITERS

 1
85332-20060

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

RN3#,4#

2.5 LITERS

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-89103

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 2
85341-89104

RN3#,4#..USA

1.7 LITERS

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-89103

LN40,RN3#,4#

2.5 LITERS,2.1 LITERS

 2
85341-89104

RN3#,4#..USA

1.7 LITERS

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-89102

LN40,RN3#,4#

3WAY,2.1 LITERS,2.5 LITERS

 1
85355-87201

RN3#,4#..USA

2 WAY,1.7 LITERS

 2
85355-14010

RN3#,4#..USA

3WAY,1.7 LITERS

 1
85349-20010

LN40,RN3#,4#

2WAY,2.5 LITERS,2.1 LITERS

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85348-89102

LN40,RN3#,4#

3WAY,2.1 LITERS,2.5 LITERS

 1
85355-87201

RN3#,4#..USA

2 WAY,1.7 LITERS

 2
85355-14010

RN3#,4#..USA

3WAY,1.7 LITERS

 1
85349-20010

LN40,RN3#,4#

2WAY,2.5 LITERS,2.1 LITERS

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-14071

RN3#,4#..USA

1.7 LITERS

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33332

RN3#,4#

*H,L=400,2.5 LITERS

 1
90446-06013

RN3#,4#..USA

*H,L=400,1.7 LITERS

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33332

LN40,RN3#,4#

*H,L=700,2.5 LITERS,2.1 LITERS

 1
90099-33332

RN3#,4#..USA

*H,L=700,1.7 LITERS

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RN3#,4#..USA

*H,L=100,1.7 LITERS

 1
90446-06013

RN3#,4#..USA

*H,L=580,1.7 LITERS

 1
90099-33299

LN40,RN3#,4#

*H,L=100,2.5 LITERS,2.1 LITERS

 1
90099-33332

LN40,RN3#,4#

*H,L=550,2.5 LITERS,2.1 LITERS

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RN3#,4#..USA

*H,L=100,1.7 LITERS

 1
90446-06013

RN3#,4#..USA

*H,L=580,1.7 LITERS

 1
90099-33299

LN40,RN3#,4#

*H,L=100,2.5 LITERS,2.1 LITERS

 1
90099-33332

LN40,RN3#,4#

*H,L=550,2.5 LITERS,2.1 LITERS

 1
Common parts
85333-20020
90463-10012
90463-10338
91651-40816
91656-40818
93540-15014
Linked diagrams
1603
