RN42L-MSA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

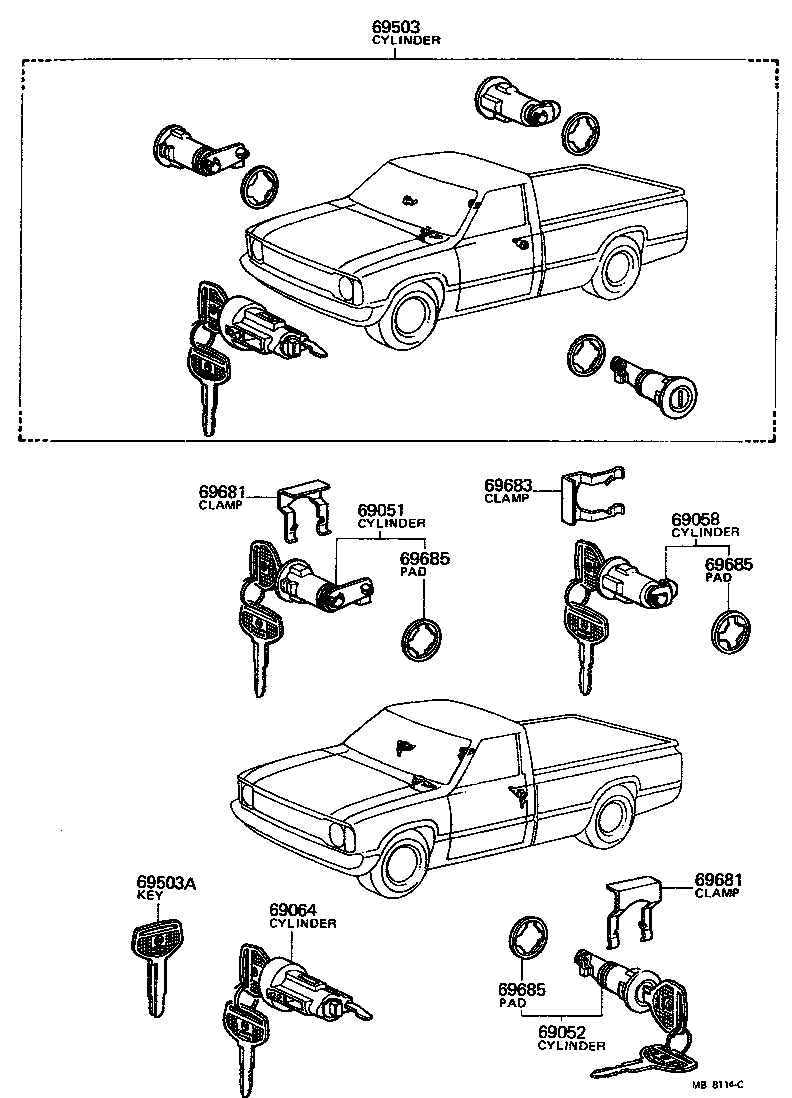

Click highlighted areas on diagram

diagram 69051 69052 69058 69064 69503 69503A 69681 69681 69683 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-89106

LN40,RN3#,4#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-89106

LN40,RN3#,4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-89101

LN40,RN3#,4#

W/O *STL

 1
69057-12011

LN40,RN3#,4#

W/*STL

 1
69503 - CYLINDER SET, LOCK
69005-89108

LN40,RN3#,4#..IV

W/*STL

 1
69005-89107

LN40,RN3#,4#..IV

W/O *STL

 1
69503A - KEY, BLANK
90999-00066

LN40,RN3#,4#

MASTER KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

RN3#,42

 2
69681-20040

RN3#,42

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

RN3#,42

 2
69681-20040

RN3#,42

 2
69685 - PAD, LOCK CYLINDER
69685-12010

LN40,RN3#,4#

DOOR LOCK

 2
69685 - PAD, LOCK CYLINDER
69685-12010

LN40,RN3#,4#

DOOR LOCK

 2
69685 - PAD, LOCK CYLINDER
69685-12010

LN40,RN3#,4#

DOOR LOCK

 2
