RN42L-MSA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8008)

Click highlighted areas on diagram

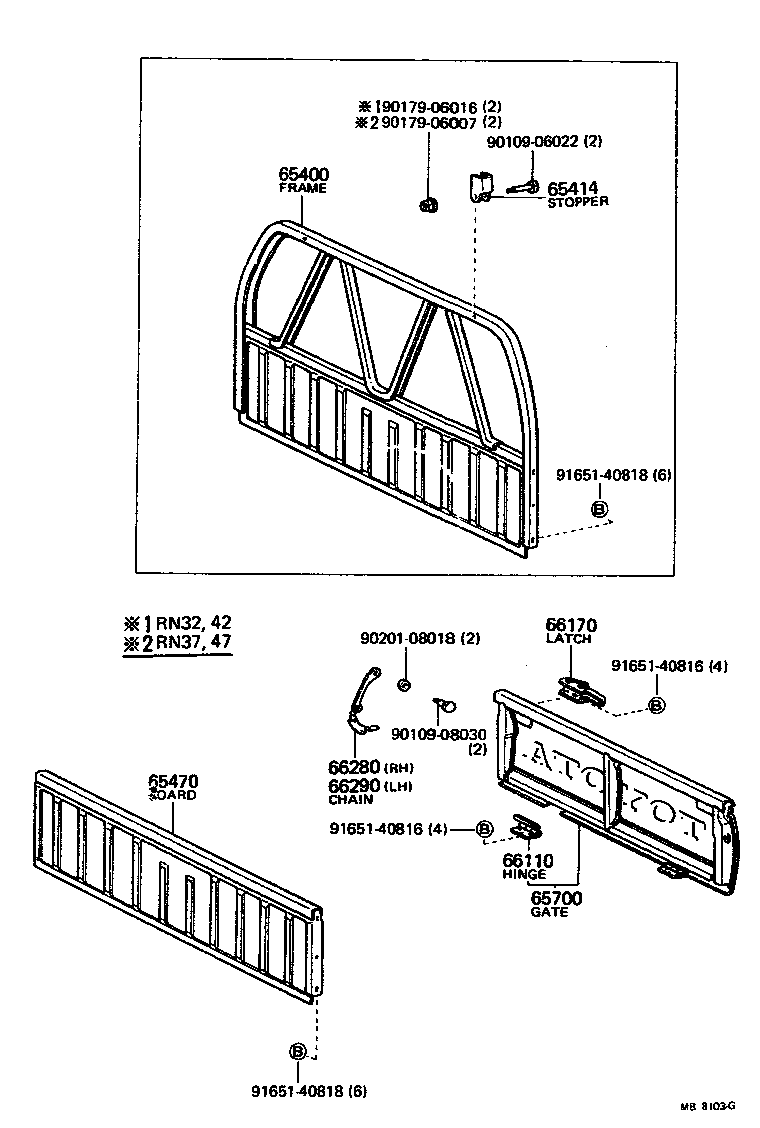

diagram 65400 65414 65470 65700 66110 66170 66280 66290 9010906022 9010908030 9017906007 9017906016 9020108018 9165140816 9165140816 9165140818 9165140818
Part # Description Qty Price
65470 - BOARD ASSY, HEADER
65470-89105

RN3#,42..3QT,HLF

W/O GUARD FRAME

 1
66280 - CHAIN ASSY, TAIL GATE, RH
66280-89105

RN3#,4#

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-89105

RN3#,4#

 1
Common parts
90109-06022
90109-08030
90179-06007
90179-06016
90201-08018
91651-40816
91651-40818
