RN42L-MSA3 (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

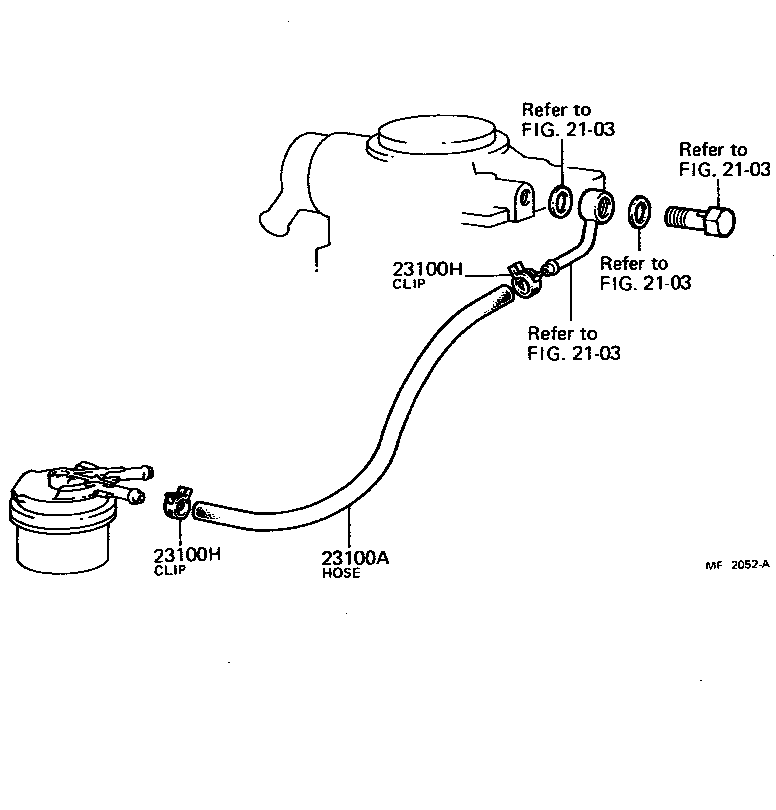

(7808-7908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95332-06032 |
20R..RN3#,4# L=320 |
1 | ||
| 90447-12011 |
20R..RN3#,4# L=550 |
1 | ||
| 90447-12034 |
20R..RN3#,4# *H,L=320 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| Linked diagrams | ||||
| 2103 | ||||

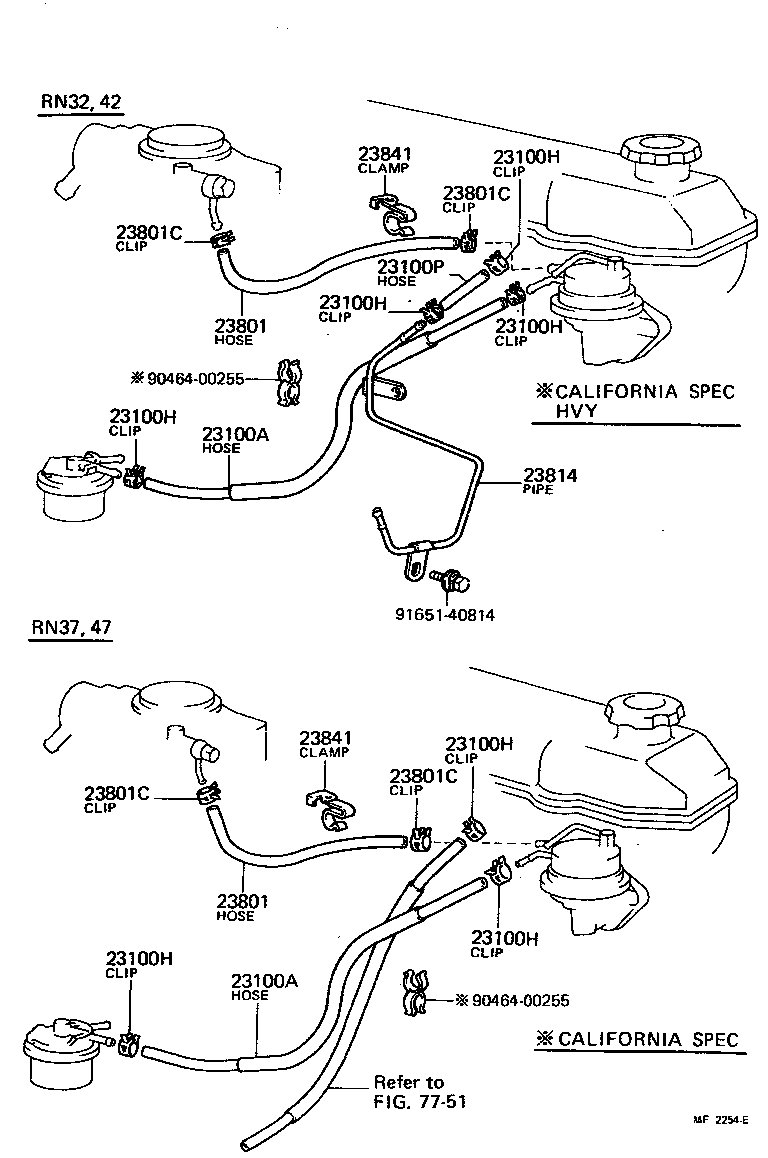

(7908-8008)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95332-06032 |
20R..RN3#,4# L=320 |
1 | ||
| 90447-12011 |
20R..RN3#,4# L=550 |
1 | ||
| 90447-12034 |
20R..RN3#,4# *H,L=320 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06032 |
20R..RN3#,4# L=320 |
1 | ||
| 90447-12011 |
20R..RN3#,4# L=550 |
1 | ||
| 90447-12034 |
20R..RN3#,4# *H,L=320 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
20R,22R..RN3#,4# |
6 | ||
| 23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE) | ||||
| 95332-06020 |
20R..RN32,42 *H,L=120 |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95332-08030 |
20R..RN3#,4# *H,L=240,ID=7.6 |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95332-08030 |
20R..RN3#,4# *H,L=240,ID=7.6 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
20R..RN3#,4# |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
20R..RN3#,4# |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
20R..RN3#,4# |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
20R..RN3#,4# |
2 | ||
| 23814 - PIPE, FUEL DELIVERY | ||||
| 23814-38010 |
20R..RN32,42 |
1 | ||
| 23814-38010 |
20R..RN32,42 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-37010 |
20R..RN3#,4# |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-37010 |
20R..RN3#,4# |
1 | ||
| Common parts | ||||
| 90464-00255 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 7751 | ||||
