RN42L-MSA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7903)20R..USA

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27330B 27350 27351 27353 27356 27359 27362 27371 27372 2737838040 2737838051 2737838051 2738745022 27410 27411 27412 27441 27700A 9009900912 9009904259 9009905060 9009905118 9009905118 9009905119 9010110049 9011908063 9011908065 9017906158 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-38110

20R..RN3#,4#

12V 55A,W/O REGULATOR

 1
27020-38111

20R..RN3#,4#

12V 55A,W/O REGULATOR

 1
27020-38013

20R..RN3#,4#..USA

12V 40A,W/O REGULATOR

 1
27020-38014

20R..RN3#,4#..USA

12V 40A,W/O REGULATOR

 1
27039 - COVER, ALTERNATOR REAR END
27039-38050

20R..RN3#,4#..USA

12V 40A

 1
27039-45110

20R..RN3#,4#

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

20R..RN3#,4#

12V 55A

 1
27212-39050

20R..RN3#,4#..USA

12V 40A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-38061

20R..RN3#,4#

12V 55A

 1
27310-34050

20R..RN3#,4#..USA

12V 40A

 1
27310-38061

20R..RN3#,4#

12V 40A,55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

20R,22R..RN3#,4#

12V 40A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10115

20R..RN3#,4#

12V 40A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45090

20R..RN3#,4#

12V 55A

 1
27330-26050

20R..RN3#,4#..USA

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

20R..RN3#,4#

12V 40A,55A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

20R..RN3#,4#..USA

12V 40A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-38051

20R..RN3#,4#..USA

12V 40A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

20R,22R..RN3#,4#

12V 40A,55A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-38050

20R..RN3#,4#..USA

12V 40A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-38050

20R..RN3#,4#..USA

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-38110

20R..RN3#,4#

12V 55A

 1
27359-38050

20R..RN3#,4#..USA

12V 40A

 1
27359-38111

20R..RN3#,4#

12V 55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-38051

20R..RN3#,4#..USA

12V 40A

 1
27362-38111

20R..RN3#,4#

12V 55A

 1
27362-38110

20R..RN3#,4#

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

20R..RN3#,4#..USA

12V 40A

 2
27371-44070

20R..RN3#,4#

12V 55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

20R..RN3#,4#..USA

12V 40A

 2
90099-17114

20R..RN3#,4#

12V 55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

20R..RN3#,4#

12V 55A

 1
27410-26050

20R..RN3#,4#..USA

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

20R,22R..RN3#,4#

12V 40A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

20R,22R..RN3#,4#

12V 40A,55A

 1
27441 - FAN, ALTERNATOR
27441-45110

20R..RN3#,4#

12V 55A

 1
27441-45110

20R..RN3#,4#

12V 55A

 1
27441-34030

20R..RN3#,4#..USA

12V 40A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-38120

20R..RN3#,4#..USA

12V 40A ALTERNATOR

 1
27700-38110

20R..RN3#,4#

12V 55A ALTERNATOR

 1
27700-26030

20R..RN3#,4#..USA

12V 40A ALTERNATOR

 1
Common parts
27378-38040
27378-38051
27387-45022
90099-00912
90099-04259
90099-05060
90099-05118
90099-05119
90101-10049
90119-08063
90119-08065
90179-06158
94110-41000
94511-01400
94512-01000
94612-11001

(7808-8008)

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2737845090 2737845110 2738745022 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9010110083 9011908065 9017010015 9020110005 9020110005 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-38110

20R..RN3#,4#

12V 55A,W/O REGULATOR

 1
27020-38111

20R..RN3#,4#

12V 55A,W/O REGULATOR

 1
27020-38013

20R..RN3#,4#..USA

12V 40A,W/O REGULATOR

 1
27020-38014

20R..RN3#,4#..USA

12V 40A,W/O REGULATOR

 1
27039 - COVER, ALTERNATOR REAR END
27039-38050

20R..RN3#,4#..USA

12V 40A

 1
27039-45110

20R..RN3#,4#

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

20R..RN3#,4#

12V 55A

 1
27212-39050

20R..RN3#,4#..USA

12V 40A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-38061

20R..RN3#,4#

12V 55A

 1
27310-34050

20R..RN3#,4#..USA

12V 40A

 1
27310-38061

20R..RN3#,4#

12V 40A,55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

20R,22R..RN3#,4#

12V 40A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10115

20R..RN3#,4#

12V 40A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45090

20R..RN3#,4#

12V 55A

 1
27330-26050

20R..RN3#,4#..USA

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

20R..RN3#,4#

12V 40A,55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

20R..RN3#,4#

12V 55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

20R,22R..RN3#,4#

12V 40A,55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-38110

20R..RN3#,4#

12V 55A

 1
27359-38050

20R..RN3#,4#..USA

12V 40A

 1
27359-38111

20R..RN3#,4#

12V 55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-38051

20R..RN3#,4#..USA

12V 40A

 1
27362-38111

20R..RN3#,4#

12V 55A

 1
27362-38110

20R..RN3#,4#

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

20R..RN3#,4#..USA

12V 40A

 2
27371-44070

20R..RN3#,4#

12V 55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

20R..RN3#,4#..USA

12V 40A

 2
90099-17114

20R..RN3#,4#

12V 55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

20R..RN3#,4#

12V 55A

 1
27410-26050

20R..RN3#,4#..USA

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

20R,22R..RN3#,4#

12V 40A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

20R,22R..RN3#,4#

12V 40A,55A

 1
27441 - FAN, ALTERNATOR
27441-45110

20R..RN3#,4#

12V 55A

 1
27441-45110

20R..RN3#,4#

12V 55A

 1
27441-34030

20R..RN3#,4#..USA

12V 40A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-38120

20R..RN3#,4#..USA

12V 40A ALTERNATOR

 1
27700-38110

20R..RN3#,4#

12V 55A ALTERNATOR

 1
27700-26030

20R..RN3#,4#..USA

12V 40A ALTERNATOR

 1
Common parts
27378-45090
27378-45110
27387-45022
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10083
90119-08065
90170-10015
90201-10005
94110-41000
94511-01400
94512-01000
94612-11001

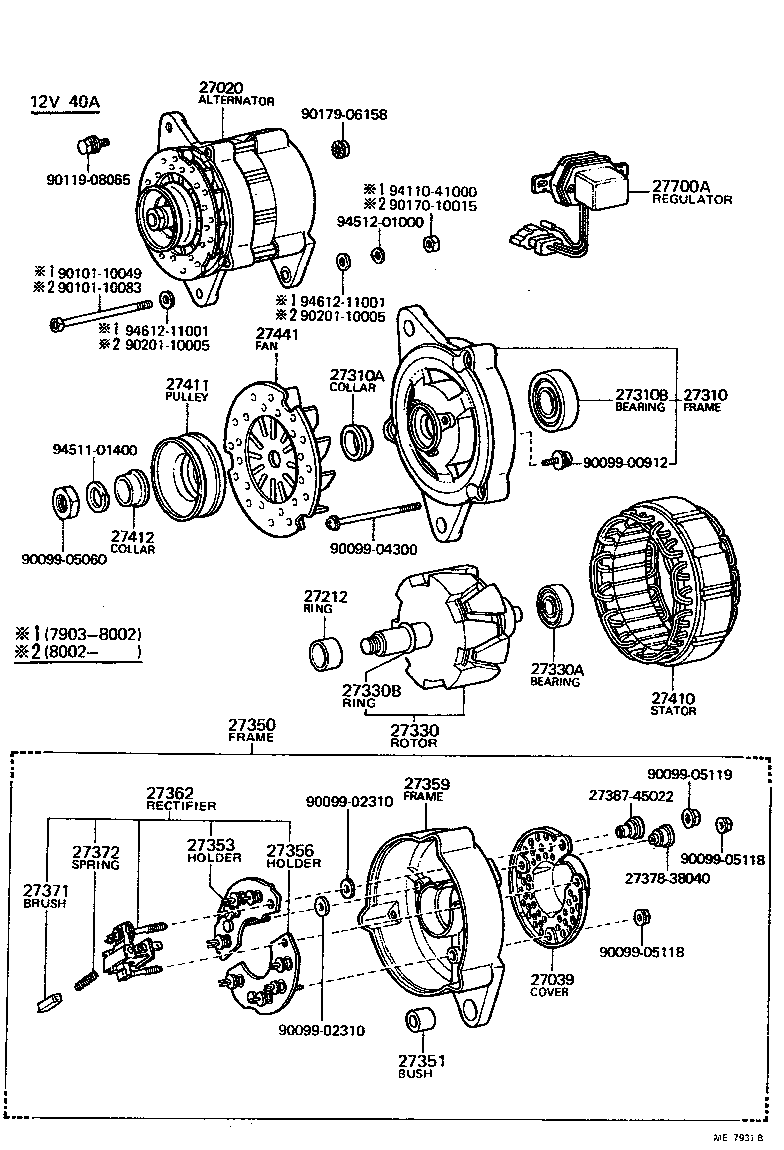

(7903-8008)20R..USA

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27330B 27350 27351 27353 27356 27359 27362 27371 27372 2737838040 2738745022 27410 27411 27412 27441 27700A 9009900912 9009902310 9009902310 9009904300 9009905060 9009905118 9009905118 9009905119 9010110049 9010110083 9011908065 9017010015 9017906158 9020110005 9020110005 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-38110

20R..RN3#,4#

12V 55A,W/O REGULATOR

 1
27020-38111

20R..RN3#,4#

12V 55A,W/O REGULATOR

 1
27020-38013

20R..RN3#,4#..USA

12V 40A,W/O REGULATOR

 1
27020-38014

20R..RN3#,4#..USA

12V 40A,W/O REGULATOR

 1
27039 - COVER, ALTERNATOR REAR END
27039-38050

20R..RN3#,4#..USA

12V 40A

 1
27039-45110

20R..RN3#,4#

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

20R..RN3#,4#

12V 55A

 1
27212-39050

20R..RN3#,4#..USA

12V 40A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-38061

20R..RN3#,4#

12V 55A

 1
27310-34050

20R..RN3#,4#..USA

12V 40A

 1
27310-38061

20R..RN3#,4#

12V 40A,55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

20R,22R..RN3#,4#

12V 40A,55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10115

20R..RN3#,4#

12V 40A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45090

20R..RN3#,4#

12V 55A

 1
27330-26050

20R..RN3#,4#..USA

12V 40A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

20R..RN3#,4#

12V 40A,55A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

20R..RN3#,4#..USA

12V 40A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-38051

20R..RN3#,4#..USA

12V 40A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

20R,22R..RN3#,4#

12V 40A,55A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-38050

20R..RN3#,4#..USA

12V 40A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-38050

20R..RN3#,4#..USA

12V 40A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-38110

20R..RN3#,4#

12V 55A

 1
27359-38050

20R..RN3#,4#..USA

12V 40A

 1
27359-38111

20R..RN3#,4#

12V 55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-38051

20R..RN3#,4#..USA

12V 40A

 1
27362-38111

20R..RN3#,4#

12V 55A

 1
27362-38110

20R..RN3#,4#

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

20R..RN3#,4#..USA

12V 40A

 2
27371-44070

20R..RN3#,4#

12V 55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

20R..RN3#,4#..USA

12V 40A

 2
90099-17114

20R..RN3#,4#

12V 55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

20R..RN3#,4#

12V 55A

 1
27410-26050

20R..RN3#,4#..USA

12V 40A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

20R,22R..RN3#,4#

12V 40A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

20R,22R..RN3#,4#

12V 40A,55A

 1
27441 - FAN, ALTERNATOR
27441-45110

20R..RN3#,4#

12V 55A

 1
27441-45110

20R..RN3#,4#

12V 55A

 1
27441-34030

20R..RN3#,4#..USA

12V 40A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-38120

20R..RN3#,4#..USA

12V 40A ALTERNATOR

 1
27700-38110

20R..RN3#,4#

12V 55A ALTERNATOR

 1
27700-26030

20R..RN3#,4#..USA

12V 40A ALTERNATOR

 1
Common parts
27378-38040
27387-45022
90099-00912
90099-02310
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10083
90119-08065
90170-10015
90179-06158
90201-10005
94110-41000
94511-01400
94512-01000
94612-11001
