RN42L-MSA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

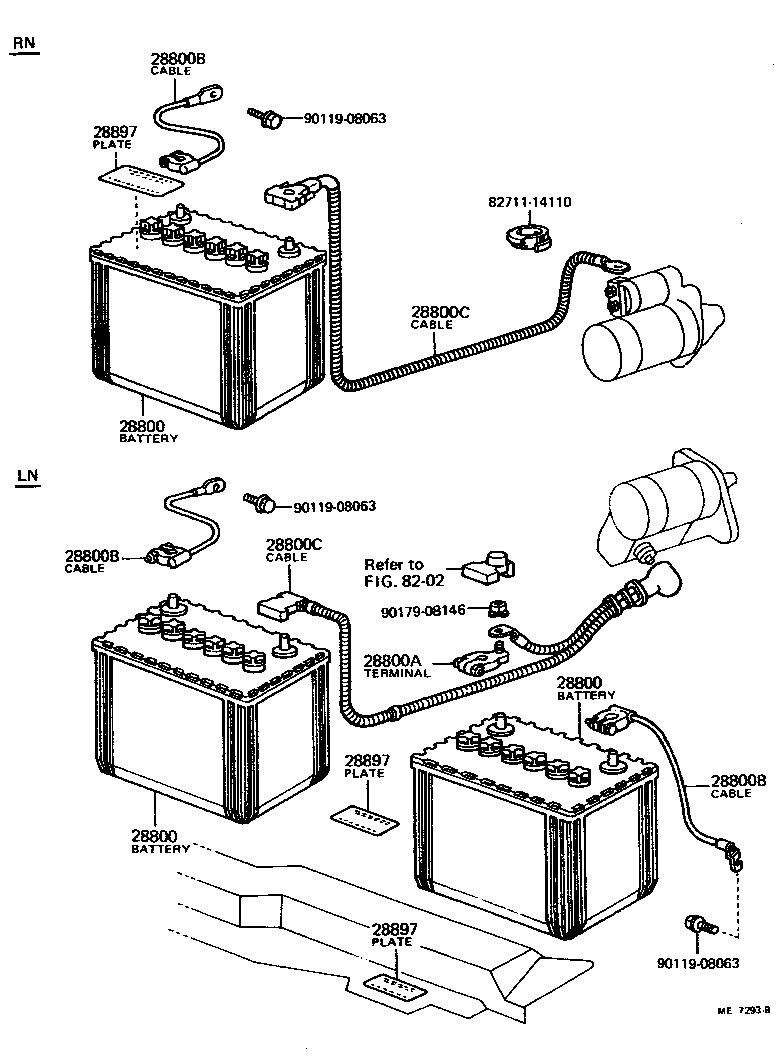

Click highlighted areas on diagram

diagram 28800 28800 28800 28800A 28800B 28800B 28800B 28800C 28800C 28897 28897 28897 8202 8271114110 9011908063 9011908063 9011908063 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-33111

20R..RN3#,4#

55D26R,N50Z(60AH)

 1
28800-34010

20R..RN3#,4#..USA

N50(50AH)

 1
28800 - BATTERY
28800-33111

20R..RN3#,4#

55D26R,N50Z(60AH)

 1
28800-34010

20R..RN3#,4#..USA

N50(50AH)

 1
28800 - BATTERY
28800-33111

20R..RN3#,4#

55D26R,N50Z(60AH)

 1
28800-34010

20R..RN3#,4#..USA

N50(50AH)

 1
28800B - CABLE, BATTERY TO GROUND
90982-02156

20R,22R..RN3#,4#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02156

20R,22R..RN3#,4#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02156

20R,22R..RN3#,4#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01290

20R..RN32,42

W/12V 1.4KW STARTER

 1
90982-01260

20R..RN32,42..USA

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01290

20R..RN32,42

W/12V 1.4KW STARTER

 1
90982-01260

20R..RN32,42..USA

 1
28897 - PLATE, BATTERY CAUTION
28897-45010

20R..RN3#,4#..USA

 1
28897 - PLATE, BATTERY CAUTION
28897-45010

20R..RN3#,4#..USA

 1
28897 - PLATE, BATTERY CAUTION
28897-45010

20R..RN3#,4#..USA

 1
Common parts
82711-14110
90119-08063
90179-08146
Linked diagrams
8202
