RN42L-MSA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)

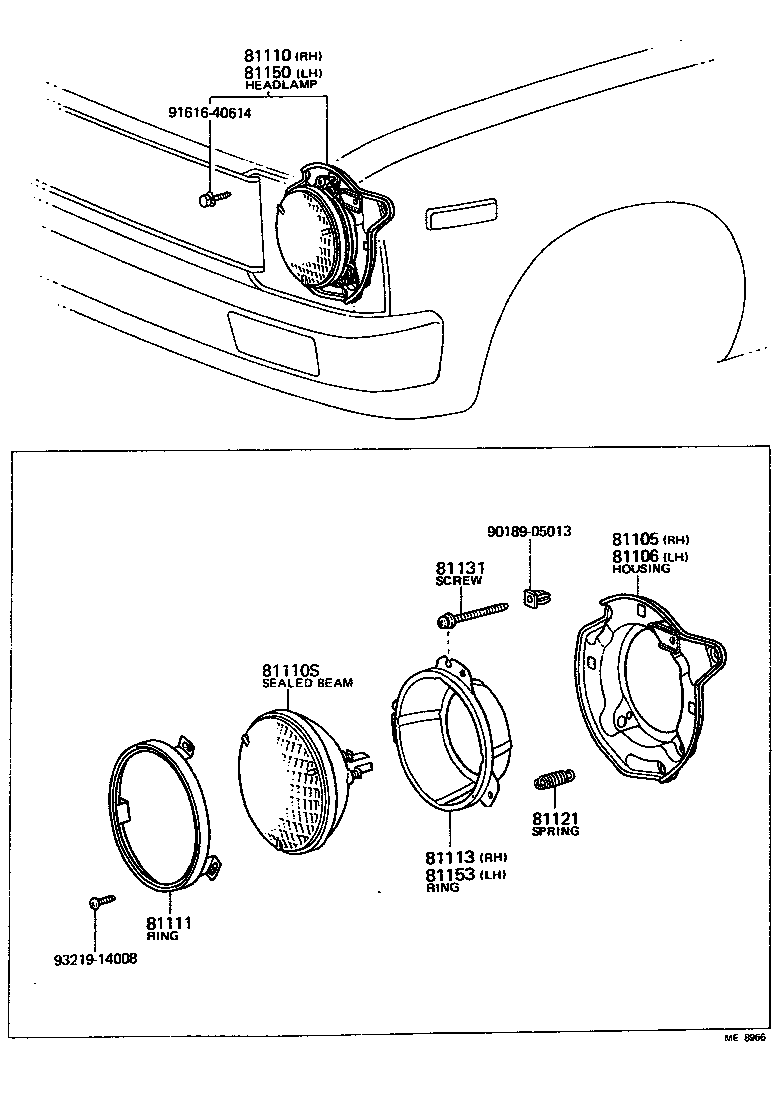

Click highlighted areas on diagram

diagram 81105 81106 81110 81110S 81111 81113 81121 81131 81150 81153 9018905013 9161640614 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-89117

LN40,RN3#,4#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-89117

LN40,RN3#,4#

 1
81110 - HEADLAMP ASSY, RH
81110-39475

LN40,RN3#,4#

 1
81110S - SEALED BEAM UNIT, NO.1
90981-01023

LN40,RN3#,4#

12V 60/50W,*WB,12V 60/50W

 2
81111 - RING, SEALED BEAM RETAINING
81111-89117

LN40,RN3#,4#

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-95188

LN40,RN3#,4#

 1
81121 - SPRING, HEADLAMP TENSION
81121-62010

LN40,RN3#,4#

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LN40,RN3#,4#

 4
81150 - HEADLAMP ASSY, LH
81150-39475

LN40,RN3#,4#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89117

LN40,RN3#,4#

 1
Common parts
90189-05013
91616-40614
93219-14008
