RN42L-MSA (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN40,RN32,34,42,44

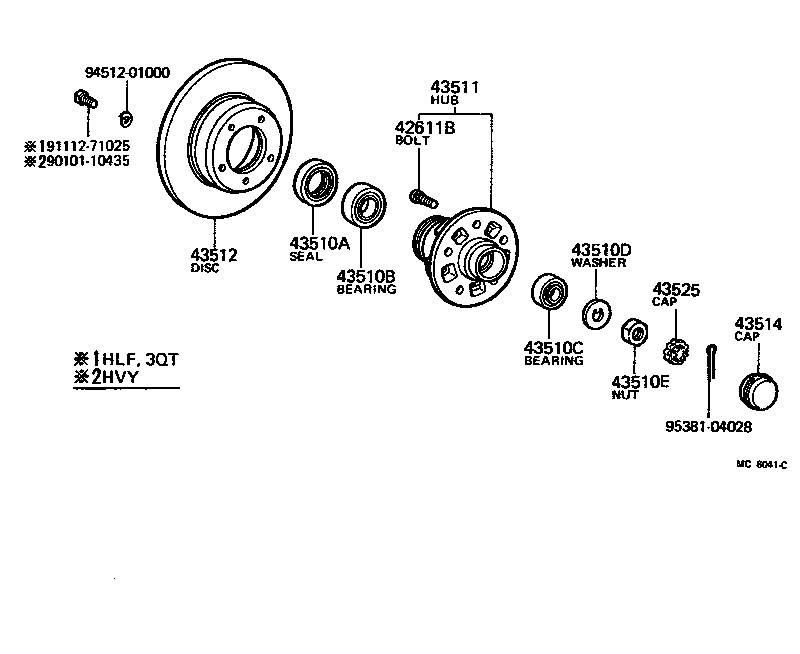

Click highlighted areas on diagram

diagram 42611B 43510A 43510B 43510C 43510D 43510E 43511 43512 43514 43525 9010110435 9111271025 9451201000 9538104028
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02035

LN40,RN32,34,42,44

 10
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50136

LN40,RN32,34,42,44

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34039

LN40,RN32,34,42,44

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21065

LN40,RN32,34,42,44

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20007

LN40,RN32,34,42,44

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

LN40,RN32,34,42,44

 2
43511 - HUB, FRONT AXLE
43502-26010

LN40,RN32,34,42,44

 2
43512 - DISC, FRONT
43512-35020

LN40,RN32,34,42,44..3QT,HLF

 2
43514 - CAP, FRONT HUB GREASE
43514-35010

LN40,RN32,34,42,44

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

LN40,RN32,34,42,44

 2
Common parts
90101-10435
91112-71025
94512-01000
95381-04028
