RN42L-MDA3 (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )LN40,RN32,34,42,44

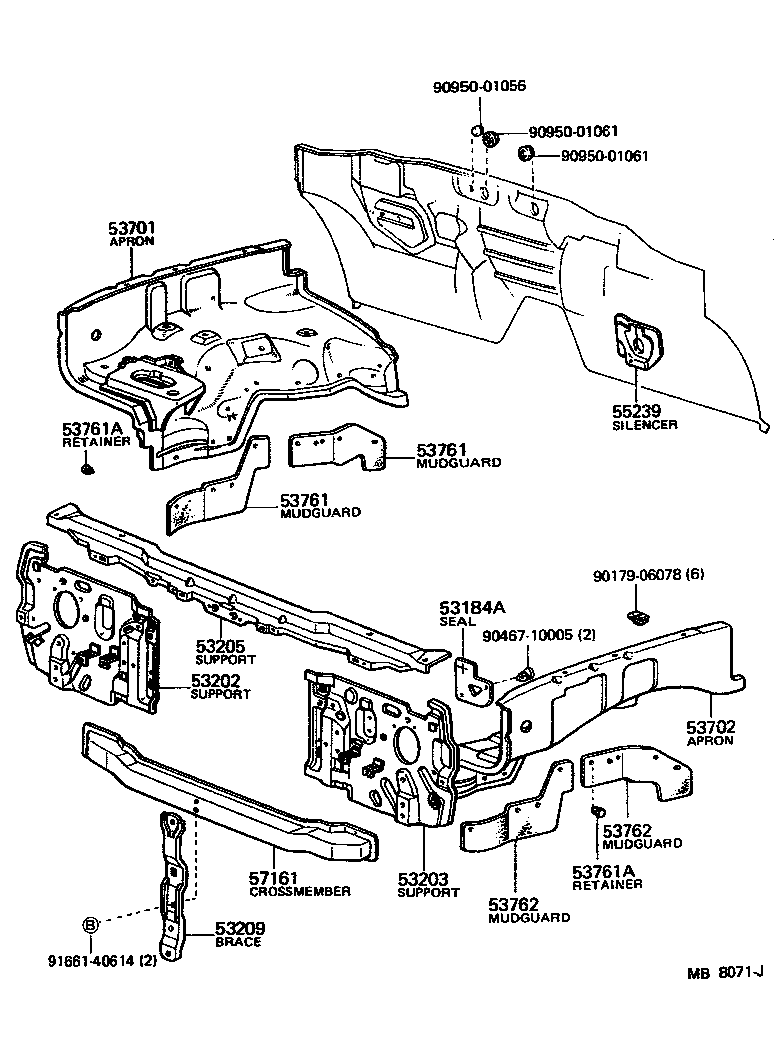

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-89109 |
RN32,42 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-89110 |
RN32,42 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-89108 |
RN3#,42 |
1 | ||
| 53205-89111 |
RN3#,42 |
1 | ||
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53217-89105 |
LN40,RN32,34,42,44 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-89114 |
RN32,42 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-89134 |
RN32,42 |
1 | ||
| 53761 - MUDGUARD, RH | ||||
| 53736-89105 |
LN40,RN32,34,42,44 FR |
1 | ||
| 53737-89102 |
LN40,RN32,34,42,44 RR |
1 | ||
| 53761 - MUDGUARD, RH | ||||
| 53736-89105 |
LN40,RN32,34,42,44 FR |
1 | ||
| 53737-89102 |
LN40,RN32,34,42,44 RR |
1 | ||
| 53761A - RETAINER(FOR MUDGUARD) | ||||
| 90467-10005 |
RN32,42 |
16 | ||
| 53761A - RETAINER(FOR MUDGUARD) | ||||
| 90467-10005 |
RN32,42 |
16 | ||
| 53762 - MUDGUARD, LH | ||||
| 53736-89105 |
LN40,RN32,34,42,44 FR |
1 | ||
| 53737-89102 |
RN32,42 RR |
1 | ||
| 53762 - MUDGUARD, LH | ||||
| 53736-89105 |
LN40,RN32,34,42,44 FR |
1 | ||
| 53737-89102 |
RN32,42 RR |
1 | ||
| 55239 - SILENCER, STEERING COLUMN HOLE COVER | ||||
| 55210-89128 |
LN40,RN32,34,42,44 |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-89101 |
RN32,42 |
1 | ||
| Common parts | ||||
| 90179-06078 | ||||
| 90467-10005 | ||||
| 90950-01056 | ||||
| 90950-01061 | ||||
| 91661-40614 | ||||
