RN42L-MDA3 (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )MTM

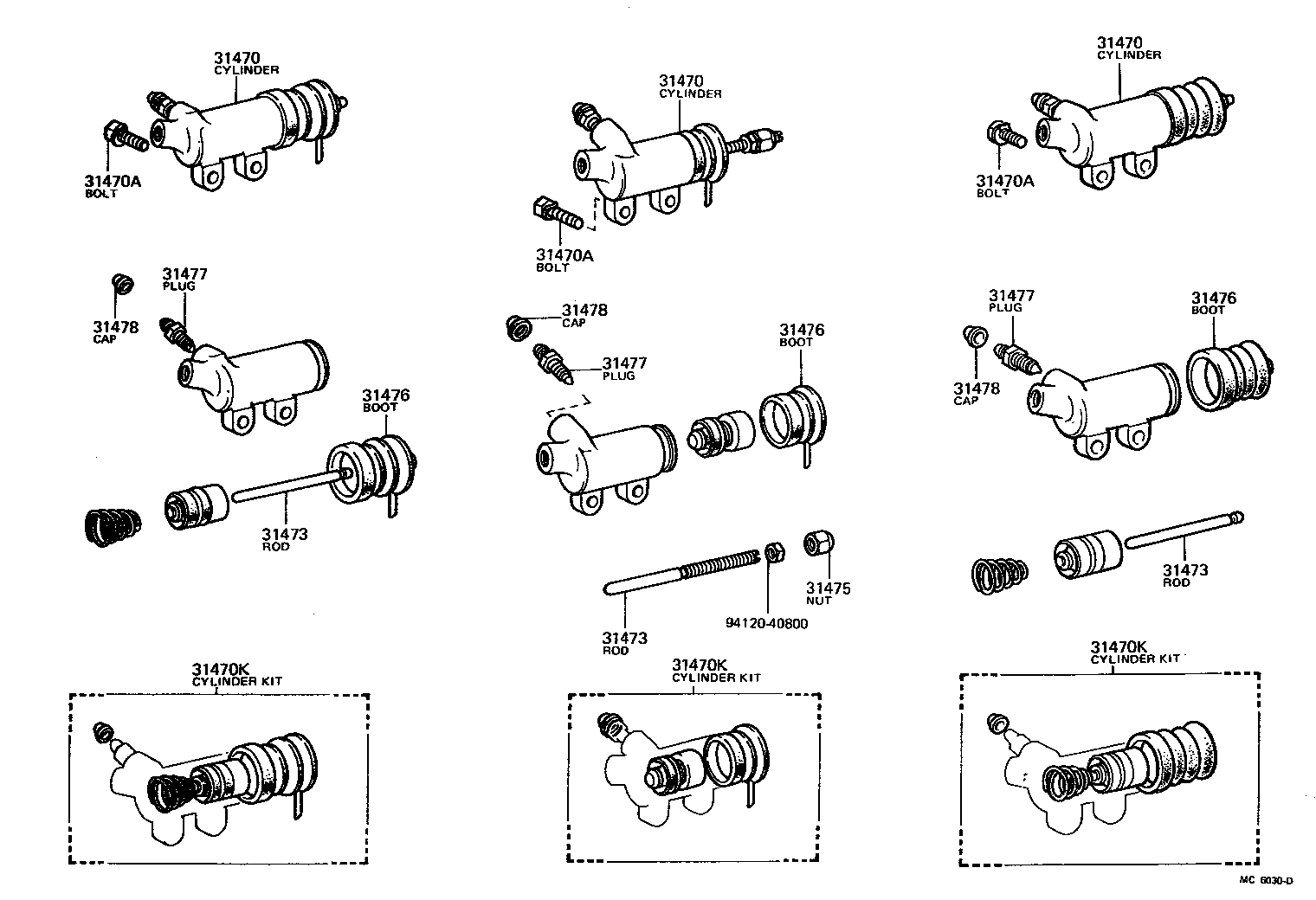

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-35040 |
RN32,42..MTM |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-35040 |
RN32,42..MTM |
1 | ||
| 31470 - CYLINDER ASSY, CLUTCH RELEASE | ||||
| 31470-35040 |
RN32,42..MTM |
1 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-40825 |
LN40,RN3#,4#..MTM *8-1.25PX25-25 |
2 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-40825 |
LN40,RN3#,4#..MTM *8-1.25PX25-25 |
2 | ||
| 31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING) | ||||
| 91611-40825 |
LN40,RN3#,4#..MTM *8-1.25PX25-25 |
2 | ||
| 31470K - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-30100 |
RN32,42..MTM |
1 | ||
| 31470K - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-30100 |
RN32,42..MTM |
1 | ||
| 31470K - CYLINDER KIT, CLUTCH RELEASE | ||||
| 04313-30100 |
RN32,42..MTM |
1 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-20030 |
RN32,42..MTM |
1 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-20030 |
RN32,42..MTM |
1 | ||
| 31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1 | ||||
| 31473-20030 |
RN32,42..MTM |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-30040 |
RN32,42..MTM |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-30040 |
RN32,42..MTM |
1 | ||
| 31476 - BOOT, CLUTCH RELEASE CYLINDER | ||||
| 31476-30040 |
RN32,42..MTM |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
LN40,RN3#,4#..MTM |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
LN40,RN3#,4#..MTM |
1 | ||
| 31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER) | ||||
| 47547-12010 |
LN40,RN3#,4#..MTM |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
LN40,RN3#,4#..MTM |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
LN40,RN3#,4#..MTM |
1 | ||
| 31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER) | ||||
| 31478-30010 |
LN40,RN3#,4#..MTM |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||
