RN42L-MDA3 (1978)

Toyota Pickup

Production Aug 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )20R,22R

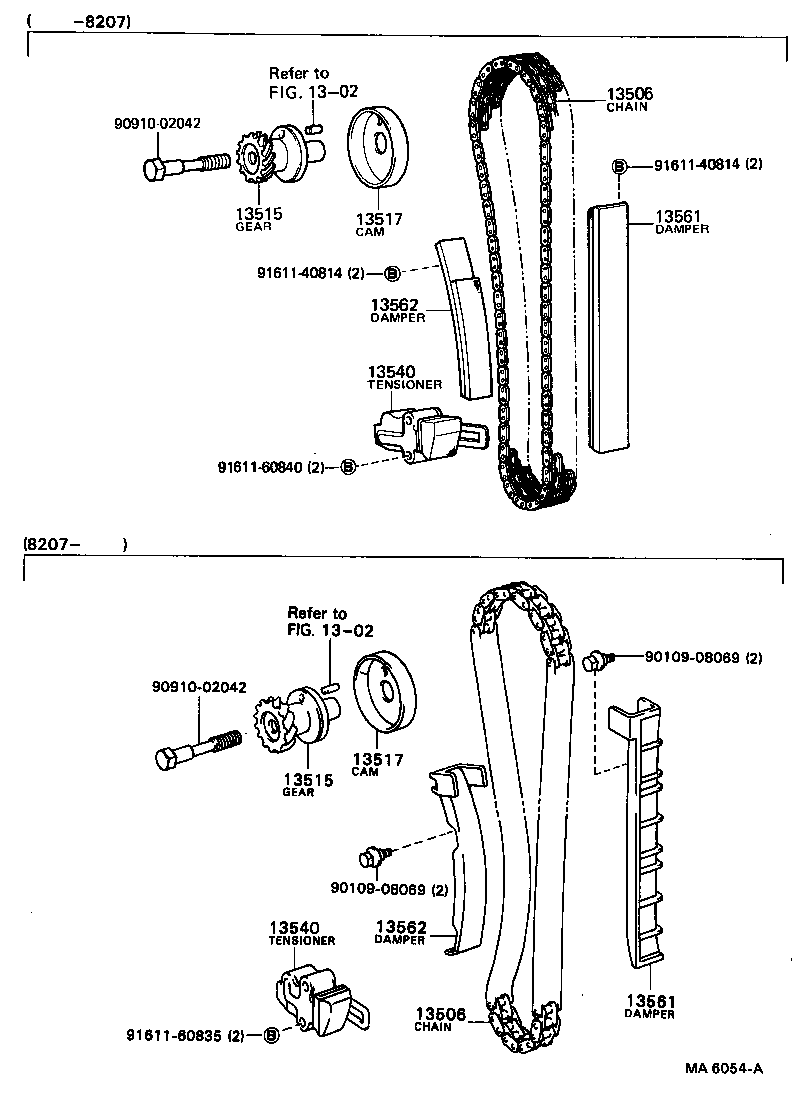

Click highlighted areas on diagram

diagram 1302 1302 13506 13506 13515 13515 13517 13517 13540 13540 13561 13561 13562 13562 9010908069 9010908069 9091002042 9091002042 9161140814 9161140814 9161160835 9161160840
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-38010

20R,22R..RN3#,4#

 1
13506 - CHAIN SUB-ASSY
13506-38010

20R,22R..RN3#,4#

 1
13515 - GEAR, DISTRIBUTOR DRIVE
13515-38010

20R..RN3#,4#

N=13

 1
13515 - GEAR, DISTRIBUTOR DRIVE
13515-38010

20R..RN3#,4#

N=13

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-38012

20R,22R..RN3#,4#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-38012

20R,22R..RN3#,4#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-38010

20R,22R..RN3#,4#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-38010

20R,22R..RN3#,4#

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-38010

20R,22R..RN3#,4#

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-38010

20R,22R..RN3#,4#

 1
Common parts
90109-08069
90910-02042
91611-40814
91611-60835
91611-60840
Linked diagrams
1302
