RN42L-MDA (1978)
Toyota Pickup
Production
Aug 1978
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

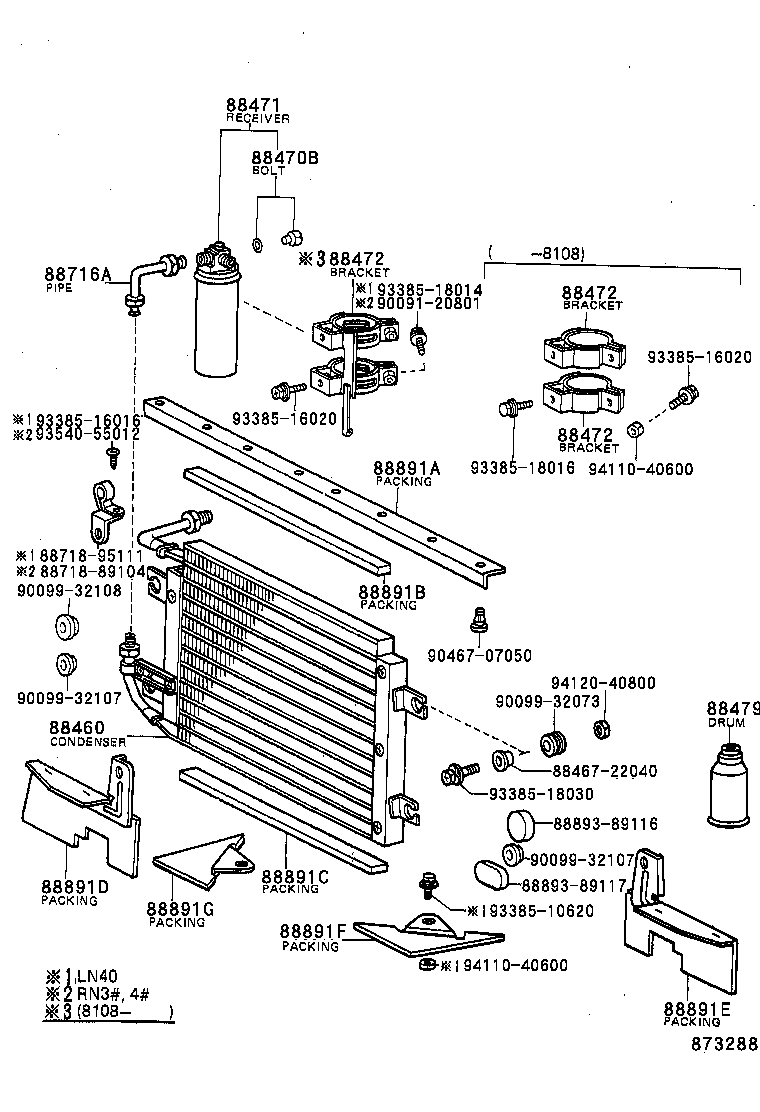

(7808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89107 |
RN3#,42..USA |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
LN40,RN3#,4#..USA |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88470-12030 |
RN3#,42..USA |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89104 |
RN3#,42..USA |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89104 |
RN3#,42..USA |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89104 |
RN3#,42..USA |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LN40,RN3#,4#..USA 400G |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89120 |
RN3#,42..USA |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88893-89113 |
LN40,RN3#,4#..USA |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88893-89114 |
RN3#,4#..USA |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88893-89115 |
RN3#,4#..USA |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88898-89109 |
LN40,RN3#,4# |
1 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88898-89110 |
LN40,RN3#,4# |
1 | ||
| Common parts | ||||
| 88467-22040 | ||||
| 88718-89104 | ||||
| 88718-95111 | ||||
| 88893-89116 | ||||
| 88893-89117 | ||||
| 90091-20801 | ||||
| 90099-32073 | ||||
| 90099-32107 | ||||
| 90099-32108 | ||||
| 90467-07050 | ||||
| 93385-10620 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||
| 93385-18030 | ||||
| 93540-55012 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||

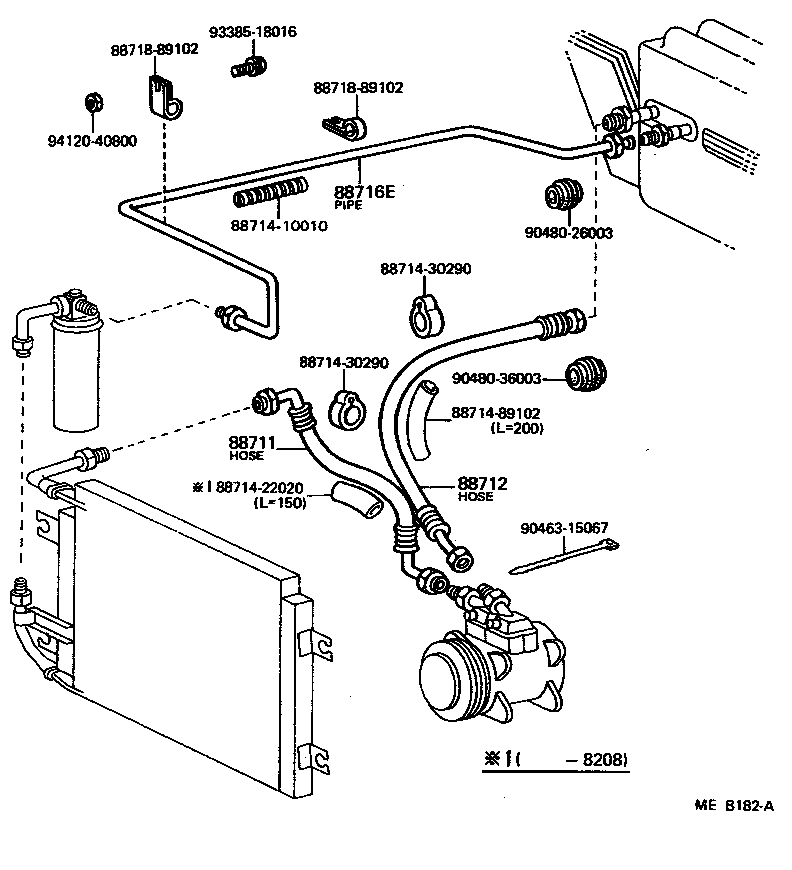

(7808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89109 |
RN3#,42..USA |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89108 |
RN3#,42..USA |
1 | ||
| 88712-22060 |
RN3#,42..USA |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89122 |
RN3#,42..USA |
1 | ||
| Common parts | ||||
| 88714-10010 | ||||
| 88714-22020 | ||||
| 88714-30290 | ||||
| 88714-89102 | ||||
| 88718-89102 | ||||
| 90463-15067 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-18016 | ||||
| 94120-40800 | ||||
